WTVS Series电池保护片
| 分类 | 自恢复保险丝 |
| SKU | |
| 单位 |
产品详情
厂家长期供应引线汽车保险丝座、保险丝、汽车保险丝座、保险丝座、汽车保险丝座、玻璃保险丝等
Applications
| Any application that requires protection at low resistances |
| Cellular phones |
| Laptop computers |
| Rechargeable battery pack protection |
Features
| Axial leaded |
| Fully compatible with current industry standards |
| Very low internal resistance |
| Nickel terminals |
| RoHS Compliant |
| Agency recognition: on Approval. |
Agency Approvals
| Agency Approvals: UL,CSA,TUV |
| Regulation/Stadard: RoHS2.0(2011/65/CE) |
Package Information
| Model | Bulk(-0) package Q'ty/bag |
| WTLS070~WTLS420 | 500 pcs |
| WTLV190~WTLV730 | 500 pcs |
| WTVS170~WTVS230 | 500 purchase |
Electrical Characteristics
| Part Number |
IH |
IT | V Max | I Max | T Trip | Pd Typ | R Min | R Max | R1 Max | |
| (A) | (A) | (V) | (A) | (V) | (Sec) | (W) | (Ω) | (Ω) | (Ω) | |
| WTVS170 | 1.70 | 3.40 | 16 | 100 | 8.50 | 5.0 | 2.1 | 0.030 | 0.052 | 0.086 |
| WTVS170N | 1.70 | 4.10 | 10 | 100 | 8.50 | 5.0 | 2.1 | 0.018 | 0.032 | 0.053 |
| WTVS175 | 1.75 | 3.80 | 16 | 100 | 8.75 | 5.0 | 2.1 | 0.029 | 0.051 | 0.102 |
| WTVS175N | 1.75 | 4.20 | 10 | 100 | 8.50 | 5.0 | 2.1 | 0.017 | 0.031 | 0.051 |
| WTVS200 | 2.00 | 4.40 | 16 | 100 | 10.00 | 5.0 | 2.3 | 0.020 | 0.040 | 0.080 |
| WTVS210 | 2.10 | 4.70 | 16 | 100 | 10.50 | 5.0 | 2.4 | 0.018 | 0.030 | 0.050 |
| WTVS210N | 2.10 | 5.00 | 10 | 100 | 10.50 | 4.0 | 2.4 | 0.010 | 0.020 | 0.033 |
| WTVS230 | 2.30 | 5.20 | 10 | 100 | 12.50 | 5.0 | 2.6 | 0.018 | 0.036 | 0.059 |

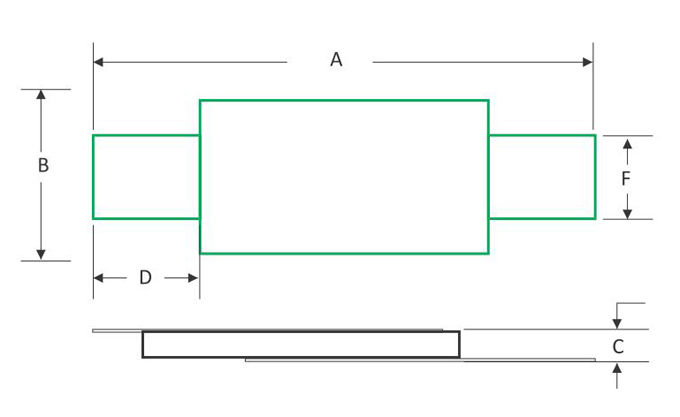

| Part Number | A | B | C | D | F | |||||
| Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | |
| WTVS170 | 15.4 | 17.5 | 6.9 | 7.4 | 0.5 | 1.0 | 5.0 | 6.2 | 3.8 | 4.2 |
| WTVS170N | 16 | 18 | 4.9 | 5.5 | 0.6 | 0.9 | 4.1 | 5.8 | 3.9 | 4.1 |
| WTVS175 | 21.9 | 24.5 | 3.0 | 3.6 | 0.5 | 1.0 | 4.5 | 5.5 | 2.4 | 2.6 |
| WTVS175N | 16 | 18 | 4.9 | 5.5 | 0.6 | 0.9 | 4.1 | 5.8 | 3.9 | 4.1 |
| WTVS200 | 21.9 | 24.5 | 3.0 | 3.6 | 0.5 | 1.0 | 4.0 | 5.5 | 2.4 | 2.6 |
| WTVS210 | 21.9 | 24.5 | 3.0 | 4.0 | 0.5 | 1.0 | 4.5 | 5.5 | 2.4 | 2.6 |
