LF-471电阻保险丝
| 分类 | 管式保险丝 |
| SKU | |
| 单位 |
产品详情
厂家长期供应引线汽车保险丝座、保险丝、汽车保险丝座、保险丝座、汽车保险丝座、玻璃保险丝等

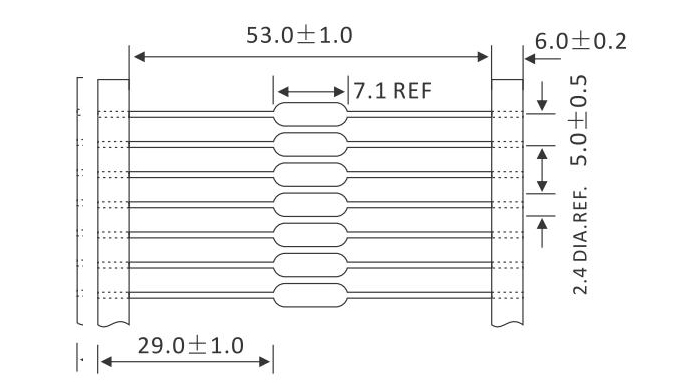

Time Lag Fuse Series (φ2.4*7.1MM)
+Approvals
Recognized Component for Canada and U.S.0.5A-5A
+Interrupting Ratings
0.375A-10A:50 amperes at 125V AC 300 amperes at 125V DC
10.1A-15A:50 amperes at 32V AC 300 amperes at 32V DC
+Environmental Specification
Shock MIL-STD-202.Method 213, Condition 1
(100G s peak for 6 milliseconds)
Vibration
MIL-STD-202, Method 201(10-55Hz);Method 204,
Test Condition C (55-200 Hz at 10Gs Perk).
MoistureResistance
MIL-STD-202,Method 106.
+Physical Specification Materials
Encapsulated,Epoxy-Coated Body;Solder Coated
Copper Wire Leads.
Lead Wire:Diameter 0.65mm
Electrical Characteristics
| Rated Current | 1 In | 2In |
| MIN | MAX | |
| 0.5A-5A | 4hr | 120sec |
+Operating Temperature -55℃ to +125℃
| Rated Current | Ampere Rating | Voltage Rating | Nominal Resistance | Nominal Ting L2f |
| (In) | (V) | Cold Ohms | A.Sec | |
| LF-471.500 | 500MA |
125V
250V |
0.2700 | 0.434 |
| LF-471 001 | 1A | 0.1415 |
1.400 |
|
|
LF-471 1.50 |
1.5A | 0.0594 | 3.150 | |
| LF-471 002 | 2A | 0.0457 | 4.800 | |
|
LF-471 2.50 |
2.5A | 0.0284 | 8.125 | |
|
LF-471 003 |
3A | 0.0275 |
9.900 |
|
| LF-471 004 | 4A | 0.0178 | 16.00 | |
|
LF-471 005 |
5A | 0.0135 | 20.00 |
