202-06KW Bolt plate fuse Box Multipoint wiring
| 分类 | 多路保险丝盒&座 |
| SKU | 100 |
| 单位 | PCS |
产品详情

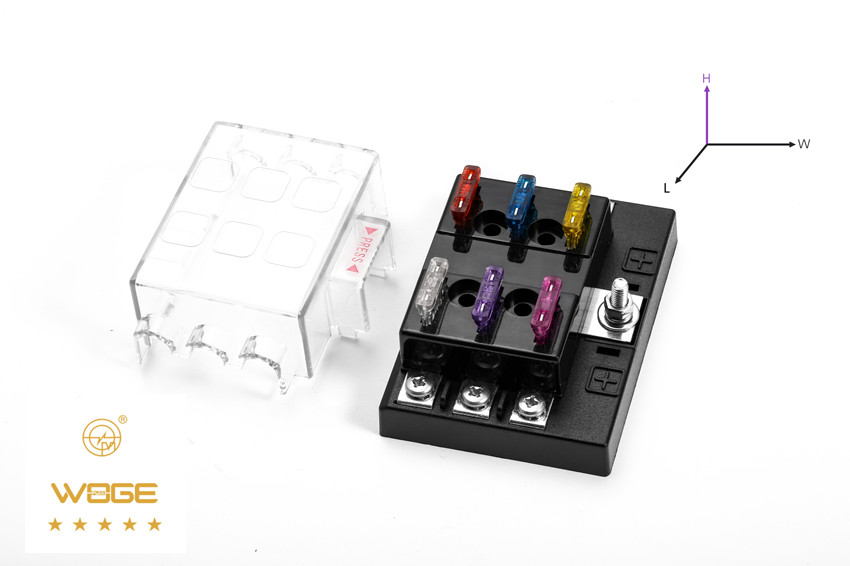

多路保险丝盒 |Bolt plate fuse Box Multipoint wiring
型号 | model: 202-06KW
https://www.wogefuse.com.cn/upload/20220808214220-1-hjy7fQ.jpg
Specification
| Maximum Amperage per circuit-25Amps. |
| Maximum voltage 32VDC |
| Cover material clear polycarbonate. |
| Maximum Amperage per circuit-150Amps. |
| Base material Thermoplastic. |
| Terminal Material Copper(Tin Plating). |
| Part Number | Part Number |
|
| With Cover | Without Cover |
|
| 202-06K | 202-06KW | 6 Way Fuseholder terminals/with or without cover |
| 202-08K | 202-08KW | 8 Way Fuseholder terminals/with or without cover |
| 202-10K | 202-08KW | 10 Way Fuseholder terminals/with or without cover |
| 202-12K | 202-08KW | 12 Way Fuseholder terminals/with or without cover |
6 Way Fuse Holder Terminal
202-06KQC |
202-08KQC |
202-12KQC |
202-06KW |
202-10KW |
202-12KW |
202-06U |
|
|
|
|
|
|
10 Way Fuse Holder Terminal
202-10KQC |
202-08KW |
