产品中心 / 插片式保险丝

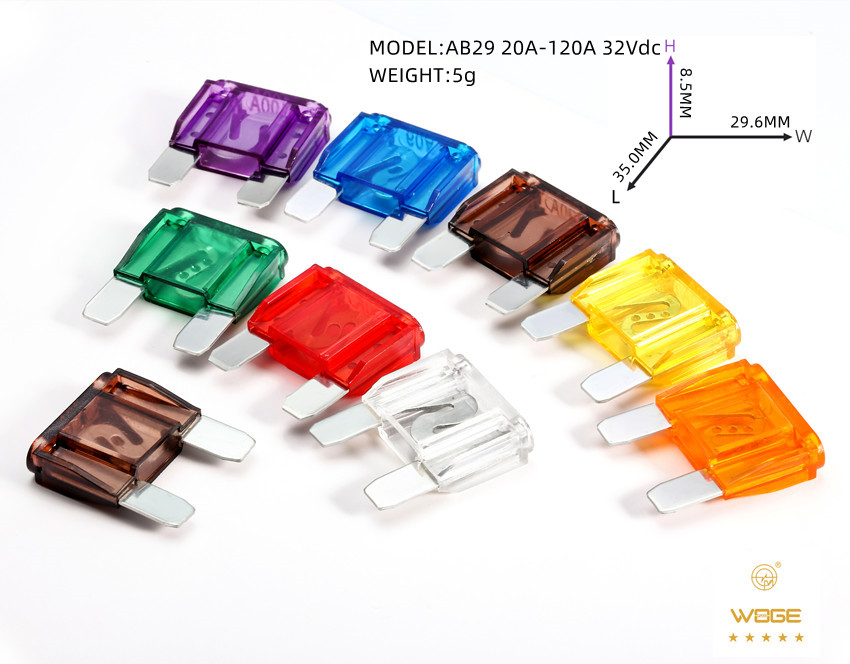

AB29 20A-120A 32Vdc

分类 插片式保险丝
SKU 100
单位 PCS
产品详情

插片保险丝|Blade Fuses  型号|model:AB29  20A-120A 32Vdc   Rohs


速熔|Rapid melting


1.Scope- The fuses shown are for in motor vehicles,boats and trailers,The fuses shown are for in motor vehicles,Power Supply,boats and trailers,to protect ect electricai wiring and equipment。This standard isfor the construction shown and is not intended to restrict thedesign and use of other configurations and materials capableof meeting the vehicle requirements。


1.范围-所显示的熔断器是用于汽车,船和拖车,电源等上保护电气线路和设备。本标准是按展示设计,不是限制设计使用在其它结构和能够满足要求车辆;

Slow Blow.Low Voltage For UP To 32V DC.
Material *Body: Plastic.
*Metal: Zinc Alloy Strip.
Standard According To SAE J1888.
Circuit Protection To Replace Fusible Wire Or Fusible Link.
Fuses Are Color-Coded For Easy Amperage Identification.


Ordering Information

Part Number Ampere(A) VoltageVDC Body Color
AB29020 20A 32V Yellow
AB29025 25A 32V Natural
AB29030 30A 32V Green
AB29040 40A 32V Orange
AB29050 50A 32V Red
AB29060 60A 32V Blue
AB29070 70A 32V Tan
AB29080 80A 32V Natural
AB29100 100A 32V Violet
AB29120 120A 32V Purple
Specifications Opening Time / Pre-arcing Time

In 1.1In 1.35In 2.0In 3.5In 6.0In
20-120A >100Hours Min. Max. Min. Max. Min. Max. Min. Max.
60 s 3600 s 2 s 60 s 0.2 s 7 s 0.04 s 0.1 s


注notes:

@环保文件以附件发送,每年更新一次;

@Environmental protection documents shall be sent as attachments and updated once a yea

@安规证书附件发送

@Attachment of safety regulation certificate
