AB19S凸点 1-40A 32Vdc

分类 插片式保险丝
SKU 1000
单位 PCS
产品详情

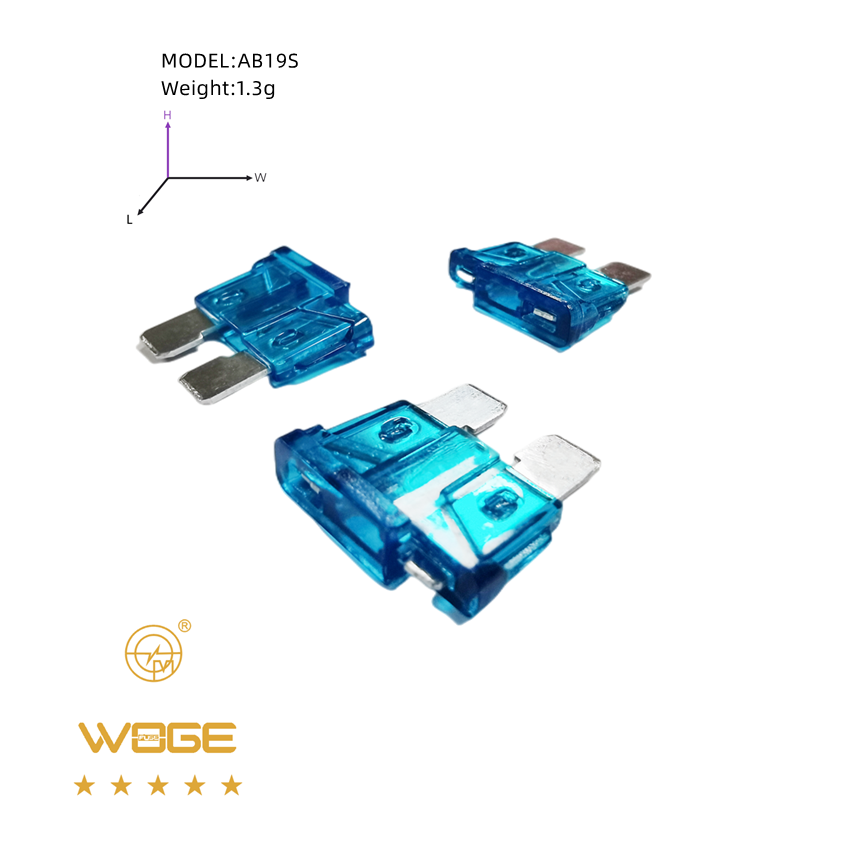

凸点插片保险丝|Blade Fuses  型号|model:AB19S 1A-40A 32Vdc UL  Rohs
速熔|Rapid melting


1.Scope- The fuses shown are for in motor vehicles,boats and trailers,The fuses shown are for in motor vehicles,Power Supply,boats and trailers,to protect ect electricai wiring and equipment。This standard isfor the construction shown and is not intended to restrict thedesign and use of other configurations and materials capableof meeting the vehicle requirements。
1.范围-所显示的熔断器是用于汽车,船和拖车,电源等上保护电气线路和设备。本标准是按展示设计,不是限制设计使用在其它结构和能够满足要求车辆




Fast Acting, Low Voltage For UP To 32v DC
Material*Body: Plastic.
*Metal: Zinc Alloy
StandardAccording To SAE J1284
Circuit Protection To Replace Fusible Wire OR Fusible Link.
Fuses Are Color-Coded For Easy Amperage Identification.

Ordering Information

Part NumberAmpere (A)Voltage VDCBody Color
AB190011A32VBlack
AB190022A32VGray
AB190033A32VViolet
AB190044A32VPink
AB190055A32VTan
AB190757.5A32VBrown
AB1901010A32VRed
AB1901515A32VBlue
AB1902020A32VYellow
AB1902525A32VNatural
AB1903030A32VGreen
AB1903535A32VPurple
AB1904040A32VOrange

Specifications Opening Time / Pre-arcing Time

In1.1In1.35In2.0In3.5In6.0In
1-40A>100HoursMin.Max.Min.Max.Min.Max.Min.Max.
0.75 s1800 s0.15 s5 s0.04 s0.5 s0.02 s0.1 s


注notes:

@环保文件以附件发送,每年更新一次;

@Environmental protection documents shall be sent as attachments and updated once a yea

@安规证书附件发送

@Attachment of safety regulation certificate
