AN29N 20A-80A 58Vdc
| 分类 | 插片式保险丝 |
| SKU | 100 |
| 单位 | PCS |
产品详情

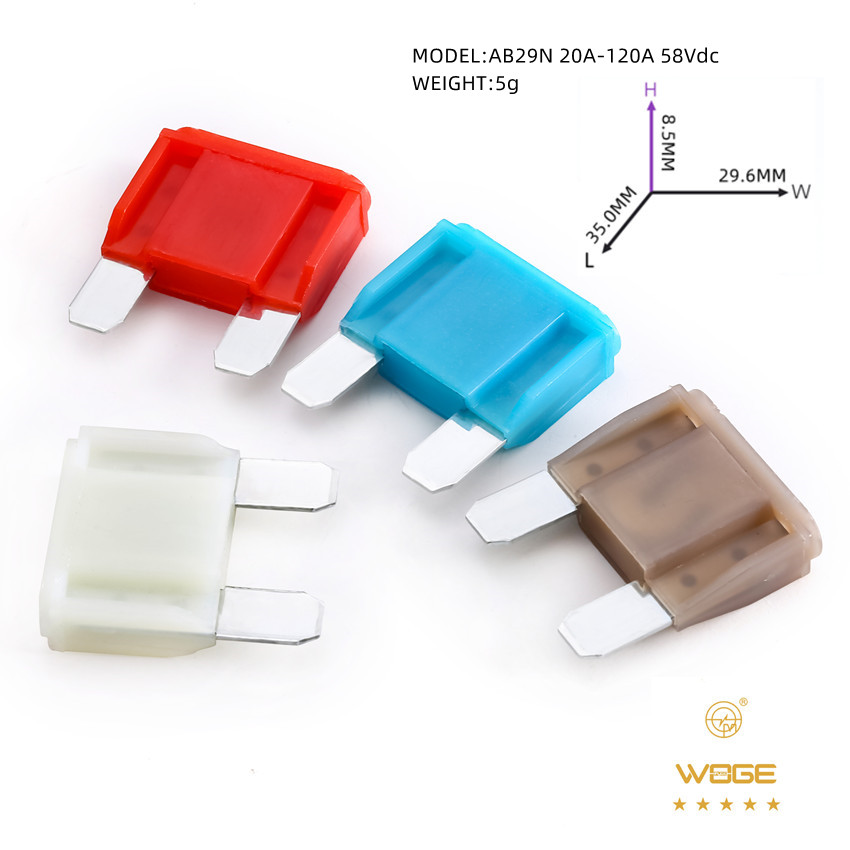

插片保险丝|Blade Fuses 型号|model:AB29N 20A-80A 58Vdc Rohs
速熔|Rapid melting
1.Scope- The fuses shown are for in motor vehicles，boats and trailers，The fuses shown are for in motor vehicles，Power Supply，boats and trailers，to protect ect electricai wiring and equipment。This standard isfor the construction shown and is not intended to restrict thedesign and use of other configurations and materials capableof meeting the vehicle requirements。
1.范围-所显示的熔断器是用于汽车，船和拖车,电源等上保护电气线路和设备。本标准是按展示设计，不是限制设计使用在其它结构和能够满足要求车辆;
| Slow Blow.Low Voltage For UP To 58V DC. | |
| Material | *Body: Plastic. *Metal: Zinc Alloy Strip. |
| Standard | According To SAE J1888. |
| Circuit Protection To Replace Fusible Wire Or Fusible Link. | |
| Fuses Are Color-Coded For Easy Amperage Identification. | |
| Ordering Information | |||
| Part Number | Ampere(A) | VoltageVDC | Body Color |
| AB29N020 | 20A | 58V | Yellow |
| AB29N030 | 30A | 58V | Green |
| AB29N040 | 40A | 58V | Orange |
| AB29N050 | 50A | 58V | Red |
| AB29N060 | 60A | 58V | Blue |
| AB29N070 | 70A | 58V | Tan |
| AB29N080 | 80A | 58V | Natural |
| Tesl turrent | Rated current | Operating tlme | |
| 额定值百分比 | 额定电流 | 工作时间 | |
| A | MIN | MAX | |
| 100% | 100 | 360,000s/- | No requirement |
| 110% | 20-80 | 360,000s/- | No requirement |
| 135% | 20-100 | 60s | 1800s |
| 200% | 20-100 | 2s | 60s |
| 350% | 20-100 | 0.2s | 7s |
| 600% | 20-100 | 0.04s | 1s |
@环保文件以附件发送，每年更新一次；
@Environmental protection documents shall be sent as attachments and updated once a yea
@安规证书附件发送
@Attachment of safety regulation certificate
