ANMZ 30A-500A 58V
| 分类 | 平板螺栓式保险丝 |
| SKU | 1000 |
| 单位 | PCS |
产品详情

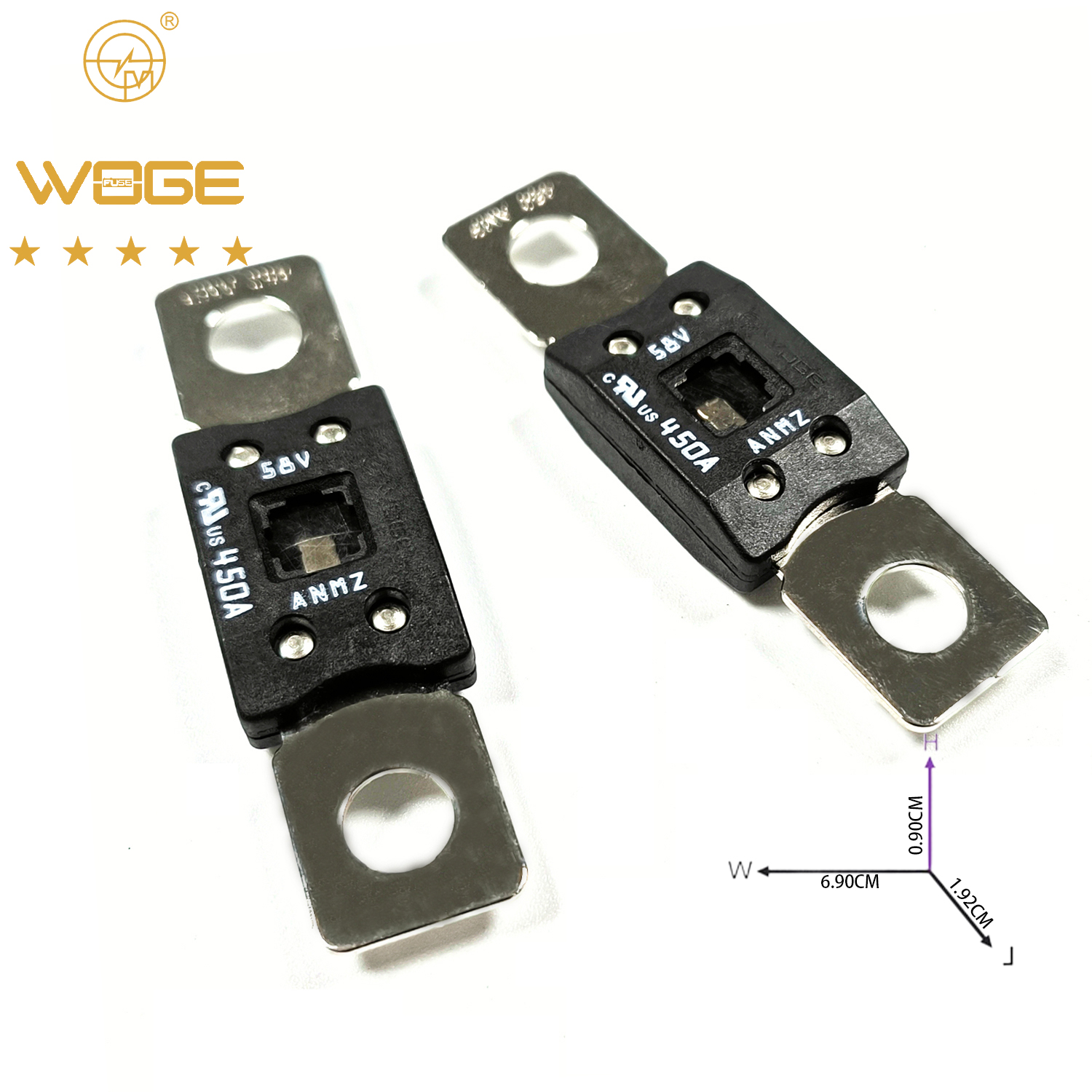

- 螺栓保险丝|Bolt FUSE
- 型号|model: ANMZ-58V 30A-650A 58VdcUL CE Rohs2.0
- 慢熔|Slow melting
- 1.ANMZ保险丝为大电流接线保护提供栓接式节省空间保险丝，并通过扩散丸技术提供延时特性。
- 1.ANMZFuse offers a bolt-on space saving fuse for high current wiring protection and provides time delay characteristics with Diffusion Pill Technology.
- Ps：According to usage conditions, the characteristics of the fuse may change|根据使用狀況，保险丝特性可能改变！
- 2.Note
- Rated voltage: less than 58VDC
- Breaking capacity: 2500A/58V DC
- Operating temperature: -40 ℃~+125 ℃
- Execution standard: ISO8820-5
- Material: copper alloy
- Recommended fuse holder: ANM-H01
- 2.说明
- 额定电压：小于直流58V
- 致断容量：2500A/58V DC
- 使用温度：-40℃～+125℃
- 执行标准：ISO8820-5
- 材质：铜合金
- 推荐使用保险丝座：ANM-H01
- 3.The specifications and models of fuses are as follows|保险丝规格型号如下
| Material number | Ampere rating | Color | Volt | Safety regulations |
| ANMZ030 | 30 | BLACK | 58Vdc | UL |
| ANMZ040 | 40 | UL | ||
| ANMZ050 | 50 | UL | ||
| ANMZ060 | 60 | UL | ||
| ANMZ070 | 70 | UL | ||
| ANMZ080 | 80 | UL | ||
| ANMZ100 | 100 | UL | ||
| ANMZ125 | 125 | UL | ||
| ANMZ150 | 150 | UL | ||
| ANMZ175 | 175 | UL | ||
| ANMZ200 | 200 | UL | ||
| ANMZ225 | 225 | UL | ||
| ANMZ250 | 250 | UL | ||
| ANMZ275 | 275 | UL | ||
| ANMZ300 | 300 | UL | ||
| ANMZ325 | 325 | UL | ||
| ANMZ350 | 350 | UL | ||
| ANMZ375 | 375 | UL | ||
| ANMZ400 | 400 | UL | ||
| ANMZ450 | 450 | UL | ||
| ANMZ500 | 500 | UL | ||
| ANMZ650 | 650 | UL |
- 4.Fusing characteristics|熔断特性
| 额定电流% | 熔断时间 | ||||
|---|---|---|---|---|---|
| 40A~250A | 300A~500A | ||||
| 最小 | 最大 | 最小 | 最大 | ||
| 75% | --- | --- | 4 hrs |
--- | |
| 100% | 4 hrs | --- | --- | --- | |
| 135% | 120 s | 1800 s | --- | --- | |
| 200% | 1 s | 15 s | 1 s | 15 s | |
| 350% | 0.3 s | 5 s | 0.5 s | 5 s | |
| 600 | 0.1 s | 1 s | 0.1 s | 1 s | |
