WGS10 15A-250A

分类 线束保险丝盒&座
SKU 1000
单位 PCS
产品详情

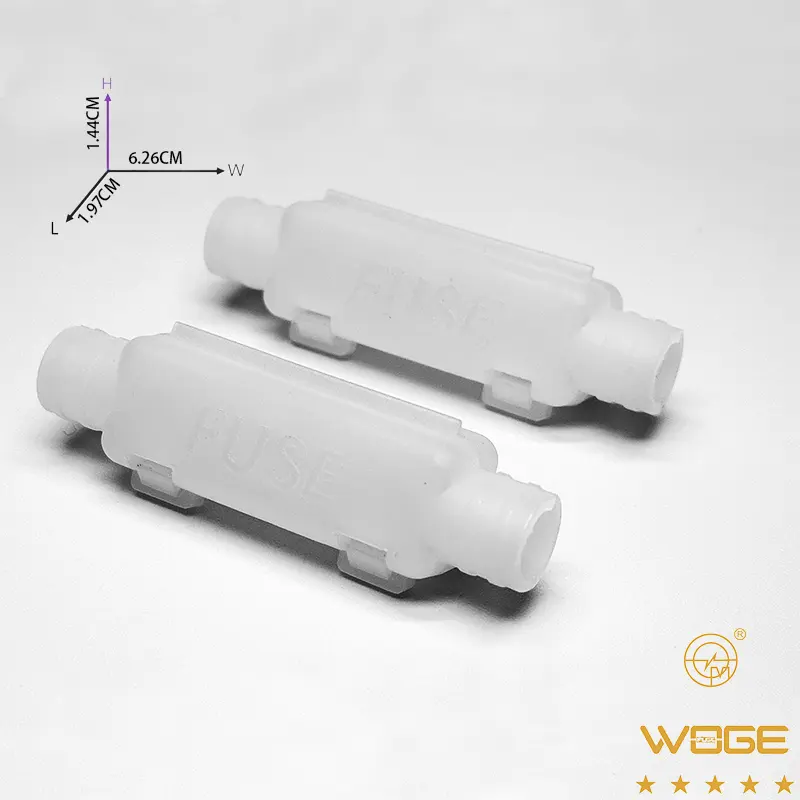

  1. 螺栓连接多路电源保护盒 | Bolted multi-channel power supply protection box
  2. 型号 | model : WGS10

  3. 1.WGS10 is a fuse holder with an internal bus. Customers connect the wires according to the soldering method of the product.
  4. 1.WGS10是一款内部总线的保险丝座,客户根据产品锡焊的方式出接线。

  5. 2. Note
  6. ♦ Rated Voltage: ≤ 70V DC
  7. ♦ Use environment: -40°C to +105°C
  8. ♦ Material: Plastic
  9. ♦ Compatible Wire: 8AWG - 14AWG
  10. ♦ Wiring Method: M5 Screw & Soldering
  11. ♦ Recommended Fuse: AN478/AN488/AN498 15A - 250A
  12. 2.说明
    ♦额定电压:≤70V DC
    ♦使用环境: -40~+105℃  u
    ♦材质:塑料
    ♦适配电线:8AWG-14AWG
    ♦接线方式:M5螺丝&焊接
    ♦推荐保险:AN478/AN488/AN498  15A~250A

  13. 注notes:

    @环保文件以附件发送,每年更新一次;

    @Environmental protection documents shall be sent as attachments and updated once a year;

    @安规证书附件发送;

    @Attachment of safety regulation certificate
