AN498B 20A-200A 58Vdc
| 分类 | 平板螺栓式保险丝 |
| SKU | 500 |
| 单位 | PCS |

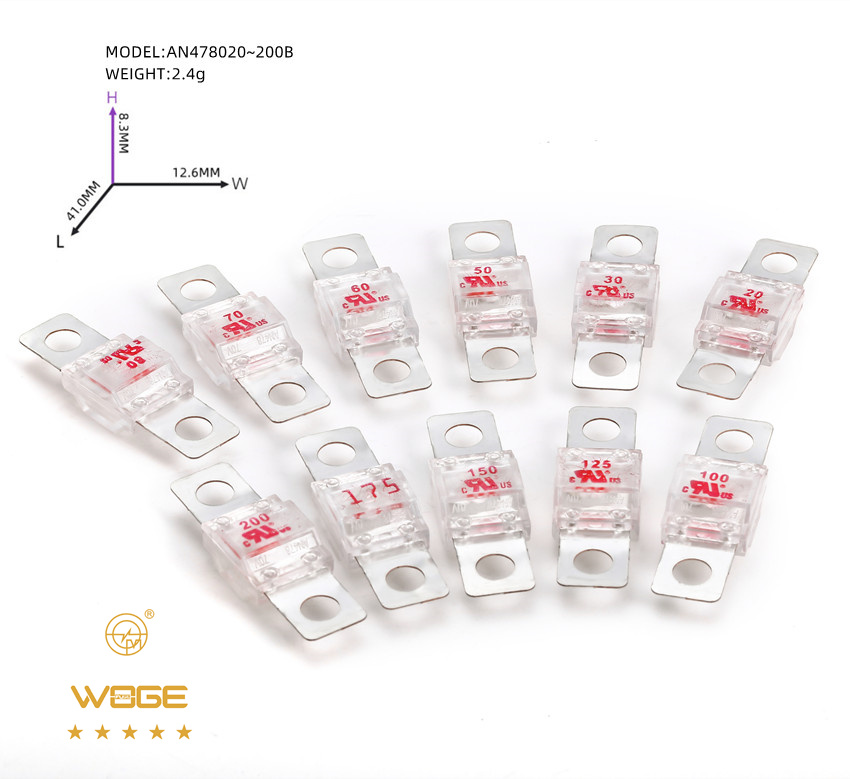

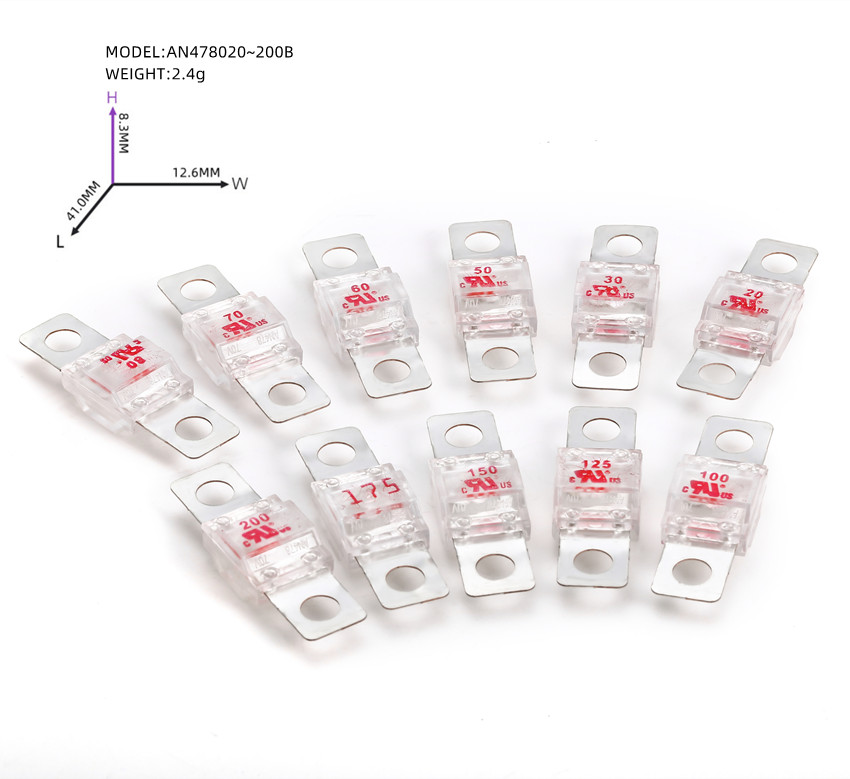

Bolt-On Fuse Strips With Housing AN 498-B Product Details
螺栓保险丝|Bolt FUSE 型号|model: AN498-B 20A-200A 58Vdc UL Rohs
慢熔|Slow melting
AN498B保险丝为大电流接线保护提供栓接式节省空间保险丝，并通过扩散丸技术提供延时特性。
AN498B Fuse offers a bolt-on space saving fuse for high current wiring protection and provides time delay characteristics with Diffusion Pill Technology.
|
For High Perform And High Power Audio Systems. Also Use Lift Trucks And Other Battery Operated System. |
|
|
Body Material |
Plastic. |
|
Metal Element |
Zinc/Copper With Gold Plating. Or Nickel Plating. |
|
Voltage |
58v DC |
|
Ampere Rating |
30,40,50,60,70,80,100,125,150,200 Amps |
Ordering Information
|
Part Number |
Ampere(A) |
Voltage VDC |
Body Color |
|
AN498030B |
30 |
58V |
wWhite |
|
AN498040B |
40 |
58V |
White |
|
AN498050B |
50 |
58V |
White |
|
AN498060B |
60 |
58V |
White |
|
AN498070B |
70 |
58V |
White |
|
AN498080B |
80 |
58V |
White |
|
AN498100B |
100 |
58V |
White |
|
AN498125B |
125 |
58V |
White |
|
AN498150B |
150 |
58V |
White |
|
AN498200B |
200 |
58V |
White |
Specifications
Opening Time / Pre-arcing Time: 24
|
In |
1.1In |
1.5In |
2.2In |
2.5In |
4.0In |
||||
|
30-000A |
>4 Hours |
Min. |
Max. |
Min. |
Max. |
Min. |
Max. |
Min. |
Max. |
|
3600 s |
- |
- |
60 s |
0.8 s |
10 s |
0.2 s |
2 s |
||
