WG2D700-LED
| 分类 | 线束保险丝盒&座 |
| SKU | 1000 |
| 单位 | PCS |

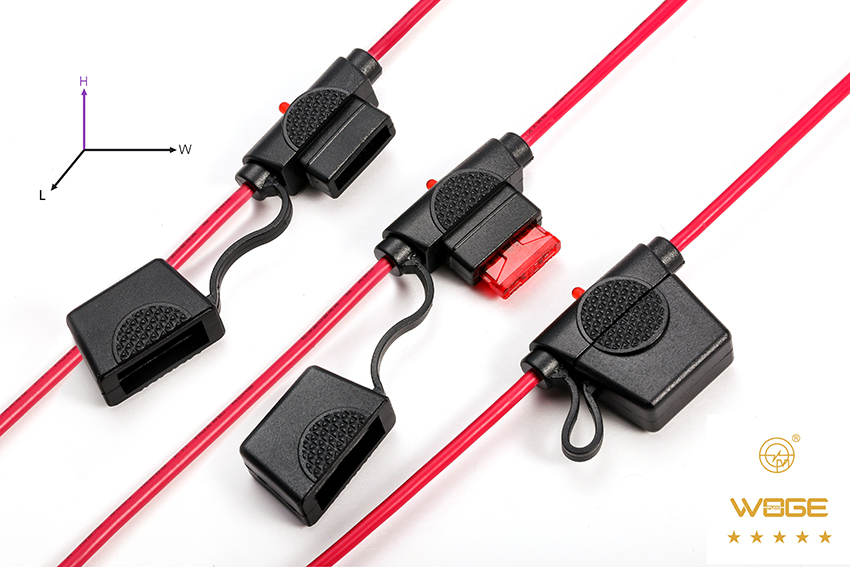

中型防水保险丝盒-LED | AB19 FUSE HOLDER-LED
防水带引线12AWG-22AWG |Waterproof tape lead12AWG-22AWG
型号 | model: WG2D700-LED
Description
The harness fuse holder is an application that requires AB19 circuit protection, fuse (1A-40A), and series fuse holder. The standard products are listed in the data sheet, and the wire length and insulation color can be customized according to requirements. Wires are also available on request. All UDFs have minimum ordering requirements. Contact WGOEFUSE sales representative for details.
描述
线束保险丝座是需要AB19电路保护的应用,保险丝（1A-40A），串联保险丝座。数据表中列出了标准产品，电线长度和绝缘颜色可根据要求定制。电线也可根据要求提供。所有自定义项具有最低订购要求。联系WGOEFUSE销售代表了解详情。
Specifications | 规范
Fuse Hardware: AB19 Fuses
Available Fuse Rating: 1A-40A
Max Voltage: 32V/58V
Max Fuse Rating: See Table
Operating Temp: -40° to 105° C
Wire Size: See Table Below
Material: Holder: BLACK TPV 251 22-12AWG
Wire Insulation: GXL (Standard)
Contacts: C194 Copper Alloy: Tin-Plat
