WTLS Series电池保护片
| 分类 | 自恢复保险丝 |
| SKU | |
| 单位 |
产品详情
厂家长期供应引线汽车保险丝座、保险丝、汽车保险丝座、保险丝座、汽车保险丝座、玻璃保险丝等
Applications
| Any application that requires protection at low resistances |
| Cellular phones |
| Laptop computers |
| Rechargeable battery pack protection |
Features
| Axial leaded |
| Fully compatible with current industry standards |
| Very low internal resistance |
| Nichel terminals |
| RoHS Compliant |
| Agency recognition: on Approval. |
Agency Approvals
| Agency Approvals: UL,CSA,TUV |
| Regulation/Stadard: RoHS2.0(2011/65/CE) |
Package Information
| Model | Bulk(-0) package Q'ty/bag |
| WTLS070~WTLS420 | 500 pcs |
| WTLV190~WTLV730 | 500 pcs |
| WTVS170~WTVS230 | 500 purchase |
Electrical Characteristics
| Part Number |
IH |
IT | V Max | I Max | T Trip | Pd Typ | R Min | R Max | R1 Max | |
| (A) | (A) | (V) | (A) | (V) | (Sec) | (W) | (Ω) | (Ω) | (Ω) | |
| WTLS070 | 0.70 | 2.25 | 16 | 100 | 3.50 | 5.0 | 1.2 | 0.100 | 0.200 | 0.330 |
| WTLS100 | 1.00 | 2.50 | 16 | 100 | 5.00 | 5.0 | 1.2 | 0.070 | 0.130 | 0.215 |
| WTLS120 | 1.20 | 2.70 | 16 | 100 | 6.00 | 5.0 | 1.2 | 0.060 | 0.120 | 0.198 |
| WTLS120L | 1.20 | 2.70 | 15 | 100 | 6.00 | 5.0 | 12 | 0.085 | 0.160 | 0.264 |
| WTLS150 | 1.50 | 3.00 | 15 | 100 | 7.5 | 5.0 | 1.3 | 0.040 | 0.080 | 0.149 |
| WTLS170 | 1.7 | 3.40 | 15 | 100 | 8.5 | 5.0 | 1.5 | 0.030 | 0.065 | 0.149 |
| WTLS175 | 1.75 | 3.80 | 15 | 100 | 9.00 | 4.0 | 1.5 | 0.050 | 0.090 | 0.149 |
| WTLS200 | 2.00 | 4.40 | 30 | 100 | 10.00 | 5.0 | 1.9 | 0.030 | 0.060 | 0.099 |
| WTLS350 | 3.50 | 6.30 | 30 | 100 | 20.00 | 3.0 | 2.5 | 0.017 | 0.031 | 0.051 |
| WTLS420 | 4.20 | 7.60 | 30 | 100 | 20.00 | 6.0 | 2.9 | 0.012 | 0.024 | 0.040 |

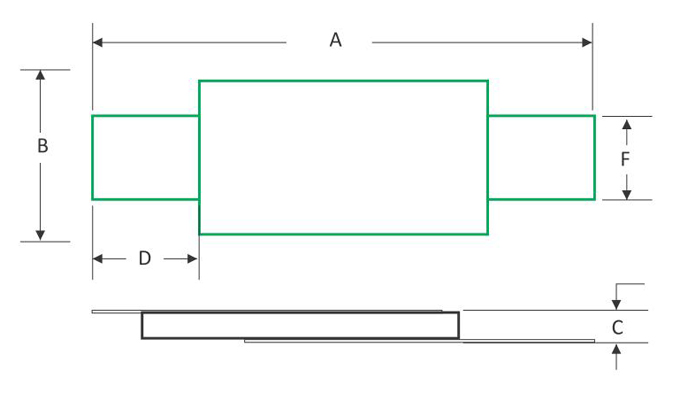

| Part Number | A | B | C | D | F | |||||
| Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | |
| WTLS070 | 17.0 | 23.1 | 4.9 | 5.5 | 0.6 | 1.0 | 3.5 | 6.0 | 3.8 | 4.2 |
| WTLS100 | 17.0 | 23.1 | 4.9 | 5.5 | 0.6 | 1.0 | 3.5 | 6.0 | 3.8 | 4.2 |
| WTLS120 | 17.0 | 23.1 | 4.9 | 5.5 | 0.6 | 1.0 | 3.5 | 6.0 | 3.8 | 4.2 |
| WTLS120L | 19.9 | 22.1 | 4.9 | 5.2 | 0.6 | 1.0 | 5.5 | 7.5 | 3.8 | 4.1 |
| WTLS150 | ||||||||||
