WSMD1206贴片可恢复保险丝
| 分类 | 自恢复保险丝 |
| SKU | 3000 |
| 单位 | PCS |
产品详情
贴片自恢保险丝| SMD PTC FUSE
贴片| SMD
型号 | model: WSMD1206
Specification Sheet
| Terminal Pad Solderability: |
| Meets EIA Specification RS 186-9E And ANSI/J-STD-002 Category 3. |
| Terminal PAD Materials: Tin-Plated Nickel-copper |
| Lead-Free,RoHS Compliant |
| Marking: |
| R ROHS |
| 1 010Part Identification |

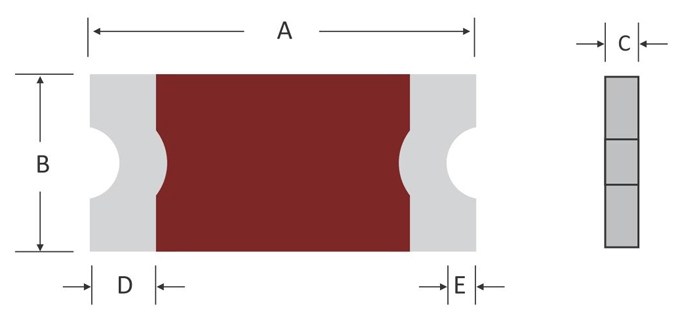

TABLEI.DIMENSIONS
| MODEL | A |
|
B |
|
C |
|
D | E |
| MIN | MAX | MIN | MAX | MIN | MAX | MIN | MAX | |
| WSMD1206R005SF | 3.00 | 3.50 | 1.50 | 1.80 | 0.60 | 1.10 | 0.15 | 0.10 |
| WSMD1206R010SF | 3.00 | 3.50 | 1.50 | 1.80 | 0.60 | 1.10 | 0.15 | 0.10 |
| WSMD1206R012SF | 3.00 | 3.50 | 1.50 | 1.80 | 0.60 | 1.10 | 0.15 | 0.10 |
| WSMD1206R020SF | 3.00 | 3.50 | 1.50 | 1.80 | 0.60 | 0.90 | 0.15 | 0.10 |
| WSMD1206R025SF | 3.00 | 3.50 | 1.50 | 1.80 | 0.40 | 0.90 | 0.15 | 0.10 |
| WSMD1206R035SF | 3.00 | 3.50 | 1.50 | 1.80 | 0.40 | 0.90 | 0.15 | 0.10 |
| WSMD1206R050SF | 3.00 | 3.50 | 1.50 | 1.80 | 0.40 | 0.85 | 0.15 | 0.10 |
| WSMD1206R050SF/13.2 | 3.00 | 3.50 | 1.50 | 1.80 | 0.35 | 0.85 | 0.15 | 0.10 |
| WSMD1206R075SF | 3.00 | 3.50 | 1.50 | 1.80 | 0.35 | 0.80 | 0.15 | 0.10 |
| WSMD1206R100SF | 3.00 | 3.50 | 1.50 | 1.80 | 0.30 | 0.80 | 0.15 | 0.10 |
| WSMD1206R110SF | 3.00 | 3.50 | 1.50 | 1.80 | 0.40 | 0.80 | 0.15 | 0.10 |
| WSMD1206R150SF | 3.00 | 3.50 | 1.50 | 1.80 | 0.40 | 1.20 | 0.15 | 0.10 |
| WSMD1206R200SF | 3.00 | 3.50 | 1.50 | 1.80 | 0.50 | 1.20 | 0.15 | 0.10 |
Performance Specification
| Model |
Mar King |
V Max |
I Max |
I Hold@25℃ |
I Trip@25℃ |
Pd Typ. |
Maximum Time To Trip | Resistance | Agency Approval | |||
| (V DC) | (A) | (A) | (A) | (W) | Current(A) | Time(Sec) | R1 Min(Ω) | R1 Max(Ω) | UL | TUV | ||
| WSMD1206R005SF | RA | 60.0 | 100 | 0.05 | 0.15 | 0.4 | 0.25 | 1.50 | 3.600 | 50.000 |
|
|
| WSMD1206R010SF | R1 | 60.0 | 100 | 0.10 | 0.25 | 0.4 | 0.50 | 1.00 | 1.600 | 15.000 |
|
|
| WSMD1206R012SF | R1 | 60.0 | 100 | 0.12 | 0.29 | 0.4 | 0.50 | 1.00 | 1.600 | 15.000 |
|
|
| WSMD1206R020SF | R2 | 24.0 | 100 | 0.20 | 0.46 | 0.6 | 8.00 | 0.08 | 0.350 | 2.700 |
|
|
| WSMD1206R025SF | R2 | 16.0 | 100 | 0.25 | 0.50 | 0.6 | 8.00 | 0.08 | 0.350 | 2.500 | ||
