WSMD2920贴片可恢复保险丝
| 分类 | 自恢复保险丝 |
| SKU | 2000 |
| 单位 | PCS |
产品详情
贴片自恢保险丝| SMD PTC FUSE
贴片| SMD
型号 | model: WSMD2920
Specification Sheet
| Terminal Pad Solderability: |
| Meets EIA Specification RS 186-9E And ANSI/J-STD-002 Category 3. |
| Terminal PAD Materials: Tin-Plated Nickel-copper |
| Lead-Free,RoHS Compliant |
| Marking: |
| R ROHS |
| 1 010Part Identification |

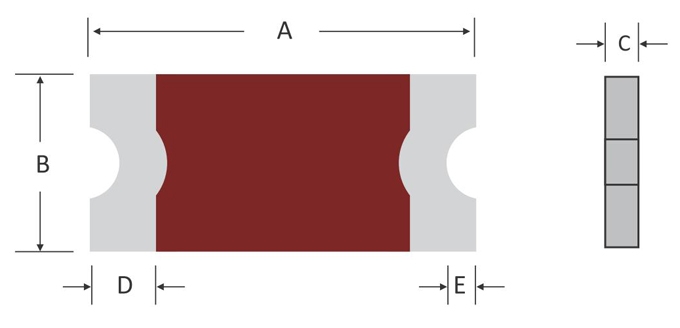

TABLEI.DIMENSIONS
| MODEL | A |
|
B |
|
C |
|
D | E |
| MIN | MAX | MIN | MAX | MIN | MAX | MIN | MAX | |
| WSMD2920R030SF | 6.73 | 7.98 | 4.80 | 5.44 | 0.60 | 1.30 | 0.30 | 0.25 |
| WSMD2920R050SF | 6.73 | 7.98 | 4.80 | 5.44 | 0.60 | 1.30 | 0.30 | 0.25 |
| WSMD2920R075SF | 6.73 | 7.98 | 4.80 | 5.44 | 0.60 | 1.30 | 0.30 | 0.25 |
| WSMD2920R110SF | 6.73 | 7.98 | 4.80 | 5.44 | 0.40 | 1.00 | 0.30 | 0.25 |
| WSMD2920R125SF | 6.73 | 7.98 | 4.80 | 5.44 | 0.40 | 0.90 | 0.30 | 0.25 |
| WSMD2920R150SF | 6.73 | 7.98 | 4.80 | 5.44 | 0.40 | 0.90 | 0.30 | 0.25 |
| WSMD2920R185SF | 6.73 | 7.98 | 4.80 | 5.44 | 0.30 | 0.90 | 0.30 | 0.25 |
| WSMD2920R200SF | 6.73 | 7.98 | 4.80 | 5.44 | 0.30 | 0.90 | 0.30 | 0.25 |
| WSMD2920R250SF | 6.73 | 7.98 | 4.80 | 5.44 | 0.30 | 0.90 | 0.30 | 0.25 |
| WSMD2920R260SF | 6.73 | 7.98 | 4.80 | 5.44 | 0.30 | 0.90 | 0.30 | 0.25 |
| WSMD2920R300SF | 6.73 | 7.98 | 4.80 | 5.44 | 0.60 | 1.30 | 0.30 | 0.25 |
Performance Specification
| Model |
V Max |
I Max |
I Hold@25℃ |
I Trip@25℃ |
Pd Typ. |
Maximum Time To Trip | Resistance | Agency Approval | |||
| (V DC) | (A) | (A) | (A) | (W) | Current(A) | Time(Sec) | R1 Min(Ω) | R1 Max(Ω) | UL | TUV | |
| WSMD2920R030SF | 60 | 100 | 0.30 | 0.60 | 1.5 | 1.5 | 3.0 | 0.600 | 4.800 |
|
|
| WSMD2920R050SF | 60 | 100 | 0.50 | 1.00 | 1.5 | 2.5 | 4.0 | 0.180 | 1.400 |
|
|
| WSMD2920R075SF | 33 | 100 | 0.75 | 1.50 | 1.5 | 8.0 | 0.3 | 0.100 | 1.000 |
|
|
| WSMD2920R110SF | 33 | 100 | 1.10 | 2.20 | 1.5 | 8.0 | 0.5 | 0.065 | 0.410 |
|
|
| WSMD2920R125SF | 33 | 100 | 1.25 | 2.50 | 1.5 | 8.0 | 2.0 | 0.050 | 0.250 |
|
|
| WSMD2920R150SF | 33 | 100 | 1.50 | 3.00 | 1.5 | 8.0 | 2.0 | 0.035 | 0.230 |
|
|
