155CF Series (方形陶瓷电瓶保险丝) 70V-100V 50-300A（CF8-EINSATZ LOSE CF8-FUSE-LINK LOOSE）
| 分类 | 方型慢断汽车保险丝 |
| SKU | |
| 单位 |

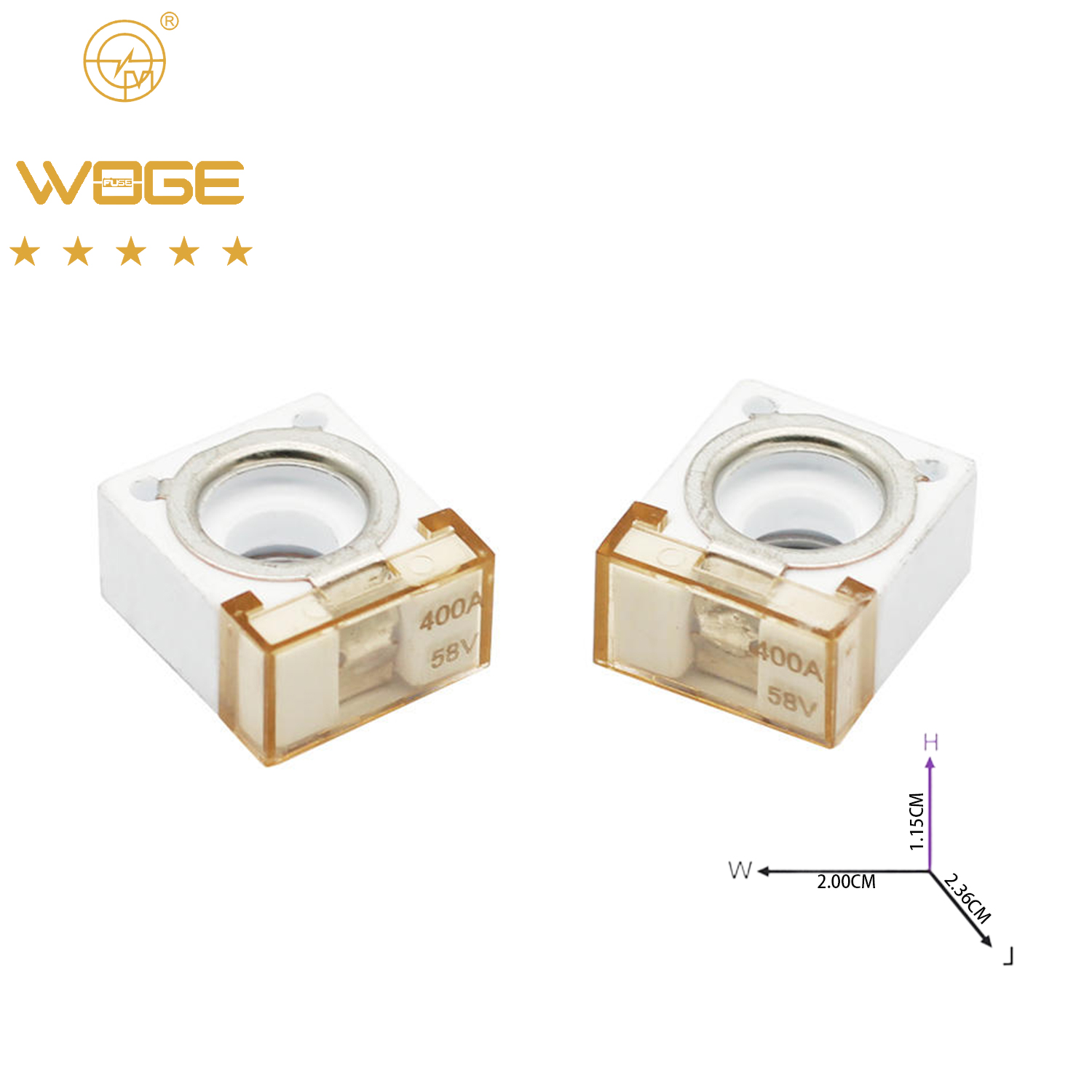

Hiah Fuse for mounting with battery clamp on the battery pole. Voltage rating 58 VDC, Current rating 50A - 300A. With transparent cover material for visual inspection of melting element.
Specifications
Insulating Body Material:Ceramic
Cover Material:PES
Visiblemelting-element
Interrupting Rating:2,000A@58VDC
Complieswith:ISO 8820-6, DIN72581-5, UL 248 Special Purpose Fuses
Ordering InformationTime-Current Characteristics
|
Part Number |
Package Size |
|
% of Rating |
Opening Time Min/ Max(s) |
|
ADCF-xxx-1 |
100 |
|
100 |
360,000 s/– |
|
|
|
|
135 |
– / 3,600 s |
|
|
|
|
150 |
1 s/ 600 s |
|
|
|
|
200 |
0.200 s / 60 s |
|
|
|
|
300 |
0.050 s/ 1.5 s |
|
400 Ratings600 |
0.020 s/ 0.50 s –/ 0.20 s |
|||
|
Part Number |
Current Rating (A) |
Typ. Voltage Drop (mV) |
Cold Resistance (m Ω ) |
I2t (A2s) |
|
155CF-050-1 |
50 |
100 |
1.20 |
1,900 |
|
155CF-075-1 |
75 |
90 |
0.60 |
12,000 |
|
155CF-100-1 |
100 |
80 |
0.60 |
14,000 |
|
155CF-125-1 |
125 |
75 |
0.45 |
51,000 |
|
155CF-150-1 |
150 |
70 |
0.35 |
63,800 |
|
155CF-175-1 |
175 |
70 |
0.25 |
120,000 |
|
155CF-200-1 |
200 |
65 |
0.25 |
172,800 |
|
155CF-250-1 |
250 |
70 |
0.20 |
330,000 |
|
155CF-300-1 |
300 |
70 |
0.15 |
372,000 |
Insert ADCF8-fuse links only in conjunction with the insulating nuts, see Section “Fuse Holders. ” Corresponding battery clamp see Section “Fuse Holders. ”
Dimensions
Dimensions in mm
