SBAF-NP 25A-100A 32Vdc
| 分类 | 方型慢断汽车保险丝 |
| SKU | 500 |
| 单位 | PCS |
产品详情

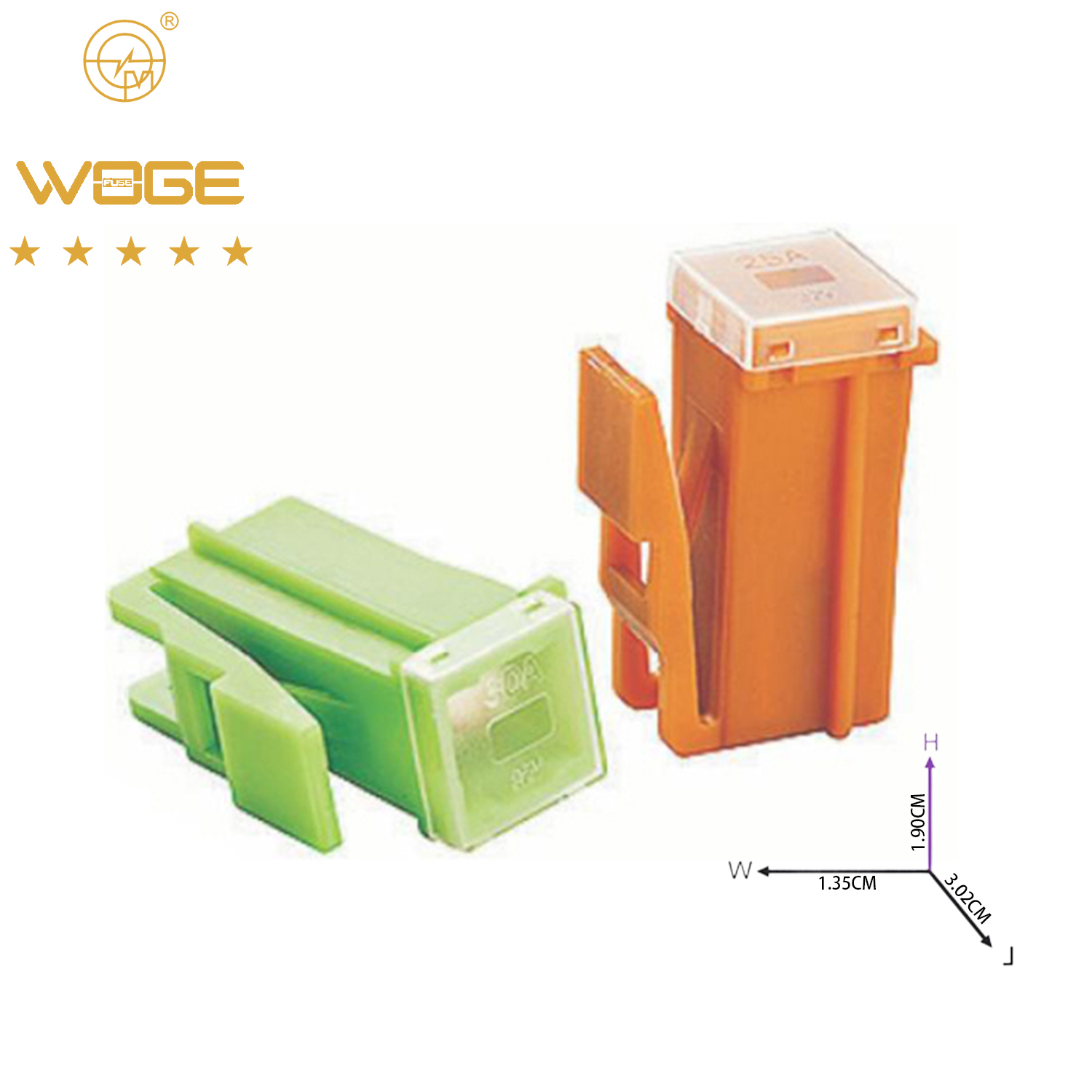

- 方型慢熔保险丝 | Square Shape Slow melting Fuse
- 型号 | model:SBAF-NP
- 慢熔|Slow melting
- 安规认证|Safety certificatio
Ps：According to usage conditions, the characteristics of the fuse may change|根据使用狀況，保险丝特性可能改变！
- 1.SBAF-NP is a cartridge style fuse with female terminal design. JCASE® provides both increased time delay and low voltage drop to protect high current circuits. JCASE® has the ability to handle inrush currents.
- 1.SBAF-NP是带连接座/头和端子的管状保险丝，它既增加了延时，又降低了电压降，可保护高电流电路并能应对突入电流。
- 2.Note
- Voltage Rating: 32 VDC
- Interrupting Rating: 1000A amperes at32 VDC
- Operating Temperature Range: -40˚ C ~ 125˚ C
- Housing Material:
- Housing Material (60A):
- Cover Material:
- Insertion Force:
- Extraction Force:
- Complies with:
- 2.注额定电压：32vdc
- 中断额定值：32vdc时1000A安培
- 工作温度范围：-40˚C~ 125˚C
- 外壳材料：
- 外壳材料（60A）：
- 外壳材料：
- 插入力：
- 拔出力：
- 符合：
- 3.The specifications and models of fuses are as follows|保险丝规格型
| Material number |
Ampere rating |
Volt |
Color |
Typ. Voltage Drop (mV) |
I²t (A²s) |
| SBAF-NP25A | 25 | 32V DC |
Brown
|
||
| SBAF-NP30A |
30 |
Green
|
|||
| SBAF-NP40A |
40 |
Lt.Green
|
|||
| SBAF-NP50A |
50 |
Red
|
|||
| SBAF-NP60A |
60 |
Yellow
|
|||
| SBAF-NP070A |
70 |
Lt.Brown
|
|||
| SBAF-NP80A |
80 |
Black
|
|||
| SBAF-NP100A |
100 |
Blue
|
4.Fusing characteristics|熔断特性
| IN |
1.1In
|
2.0In
|
3.5In
|
6.0In
|
|||
|
25-100A
|
>4 Hours
|
MIN | MAX | MIN |
MAX |
MIN |
MAX |
| 5s | 100s | 0.2s | 7s | 0.04s | 1s | ||
注notes:
@环保文件以附件发送，每年更新一次;
@Environmental protection documents shall be sent as attachments and updated once a yea
@安规证书附件发送
@Attachment of safety regulation certificate
