SBAF-SL 20A-120A 32Vdc
| 分类 | 方型慢断汽车保险丝 |
| SKU | 500 |
| 单位 | PCS |
产品详情

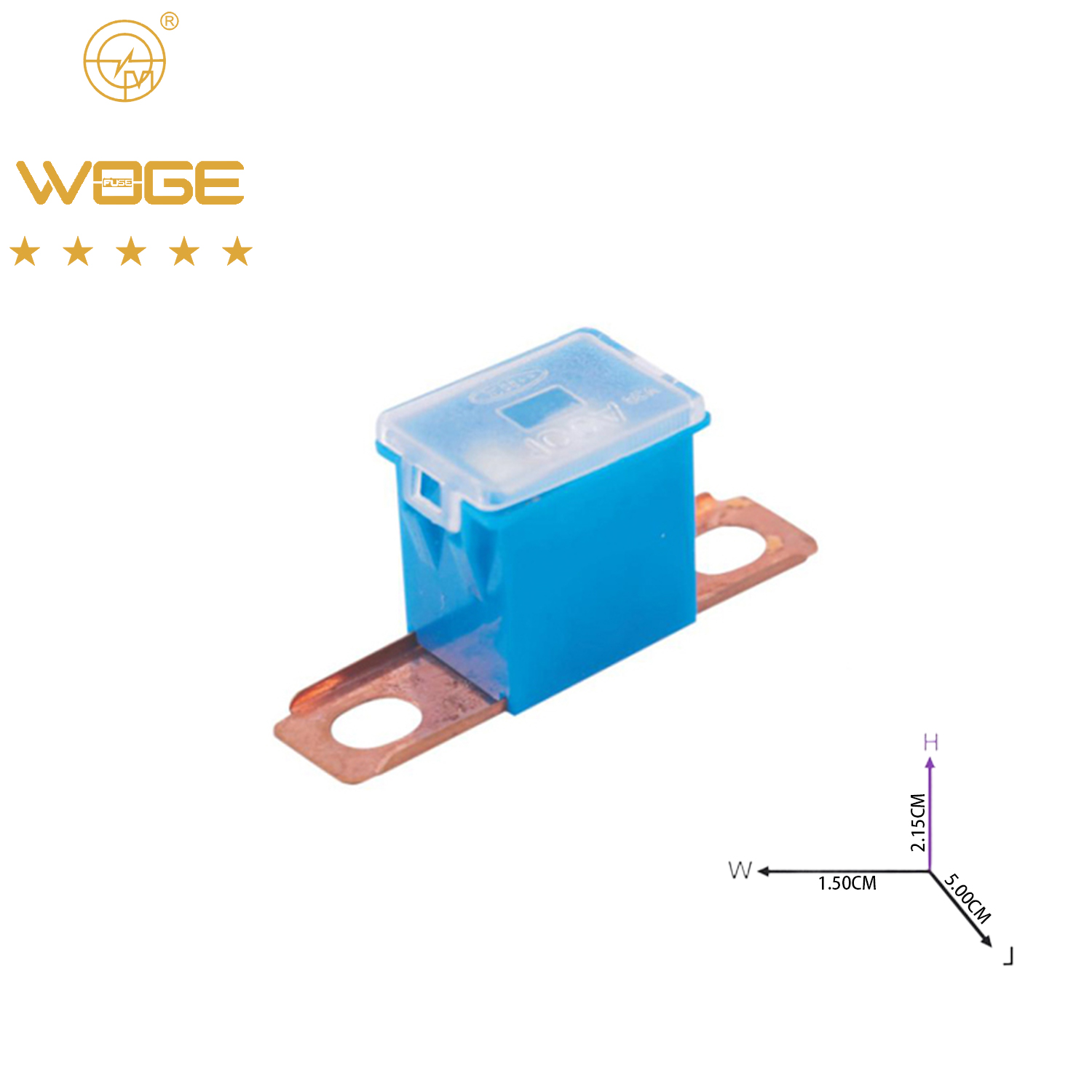

方型慢熔保险丝 | Square Shape Slow melting Fuse
- 型号 | model:SBAF-SL
- 慢熔|Slow melting
- 安规认证|Safety certificatio
Ps：According to usage conditions, the characteristics of the fuse may change|根据使用狀況，保险丝特性可能改变！
- 1.SBAF-SL is a cartridge style fuse with female terminal design. JCASE® provides both increased time delay and low voltage drop to protect high current circuits. JCASE® has the ability to handle inrush currents.
- 1.SBAF-SL是带连接座/头和端子的管状保险丝，它既增加了延时，又降低了电压降，可保护高电流电路并能应对突入电流
2.Note
- Voltage Rating: 32 VDC
- Interrupting Rating: 1000A amperes at32 VDC
- Operating Temperature Range: -40˚ C ~ 125˚ C
- Housing Material:
- Housing Material (60A):
- Cover Material:
- Insertion Force:
- Extraction Force:
- Complies with:
- 2.注额定电压：32vdc
- 中断额定值：32vdc时1000A安培
- 工作温度范围：-40˚C~ 125˚C
- 外壳材料：
- 外壳材料（60A）：
- 外壳材料：
- 插入力：
- 拔出力：
- 符合：
- 3.The specifications and models of fuses are as follows|保险丝规格型
| Material number |
Ampere rating |
Volt |
Color |
Typ. Voltage Drop (mV) |
I²t (A²s) |
| SBAF-SL20 |
20 | 32V DC | White | ||
| SBAF-SL30 |
30 | Pink | |||
| SBAF-SL40 |
40 | Green |
|||
| SBAF-SL50 |
50 | Red | |||
| SBAF-SL60 |
60 | Yellow |
|||
| SBAF-SL70 |
70 | Brown |
|||
| SBAF-SL80 |
80 | Black |
|||
| SBAF-SL100 |
100 | Blue |
|||
| SBAF-SL120 |
120 | Grey |
|
In
|
1.1In
|
2.0In
|
3.5In
|
6.0In
|
|||
|
20-120A
|
>4Hours
|
Min |
Max |
Min |
Max |
Min |
Max |
|
5 s
|
100 s
|
0.2 s
|
7 s
|
0.04 s
|
1 s
| ||
注notes:
@环保文件以附件发送，每年更新一次;
@Environmental protection documents shall be sent as attachments and updated once a yea
@安规证书附件发送
@Attachment of safety regulation certificate
