ANC-H02 Bolt plate fuse Box
- 2025-04-09 11:47:16
- 0
螺栓平板保险丝盒 | Bolt plate fuse Box
型号 | model: ANC-H02

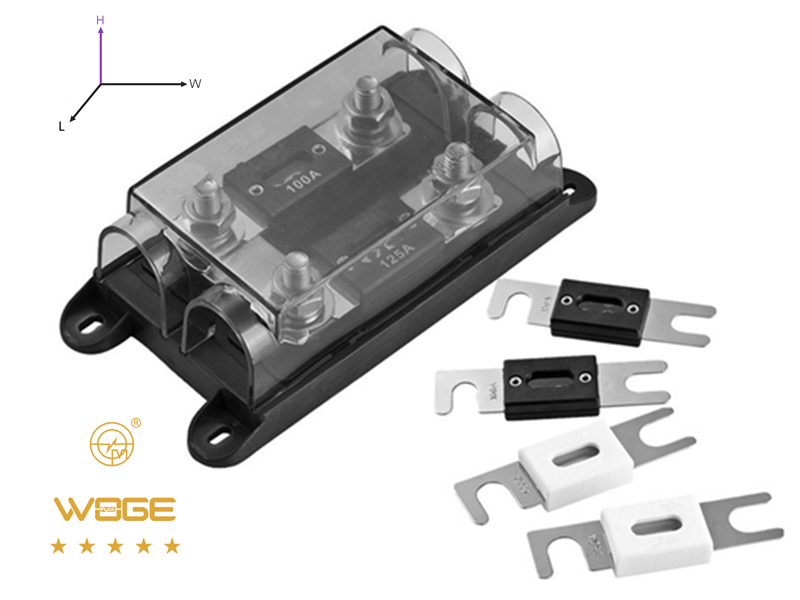

1.The ANC-H02 is a fuse holder with a bolt fuse installed inside. The wiring method of 2 inputs and 2 outputs can be selected according to customer requirements.
1.ANC-H02是一款内部装有螺栓保险丝的保险丝座，可根据客户需求可选择2进2出的出接线方式
2.Ordering Information
| Ampere (A) |
500 AMP MAX |
| Applicable Fuse |
ANMZ/AN998/ANMG |
| Voltage |
58V/80V/120V |
| Operating Temp |
-40° to 125° C |
| Wiring method |
2 inputs and 2 outputs |
3.注notes：
@环保文件以附件发送，每年更新一次；
@Environmental protection documents shall be sent as attachments and updated once a yea
@安规证书附件发送
@Attachment of safety regulation certificate
@需要详细规格书请联系我们|Please contact us if you need the detailed specification sheet.
