MT251/MT251-B
- 2025-03-29 17:01:17
- 0

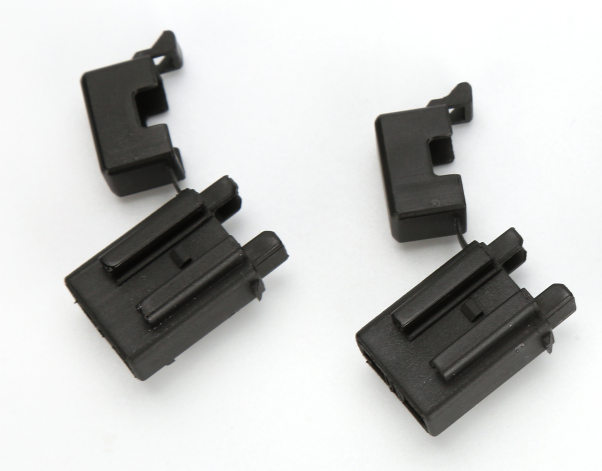

小型保险丝盒 |AB11 FUSE BOX
型号 | model: MT251/MT251-B
1.Description
The harness fuse holder is an application that requires AB19 circuit protection, fuse (1A-40A), and series fuse holder. The standard products are listed in the data sheet, and the wire length and insulation color can be customized according to requirements. Wires are also available on request. All UDFs have minimum ordering requirements. Contact WGOEFUSE sales representative for details.
1.描述
线束保险丝座是需要电路保护的应用,保险丝（1A-40A），串联保险丝座。数据表中列出了标准产品，电线长度和绝缘颜色可根据要求定制。电线也可根据要求提供。所有自定义项具有最低订购要求。联系WGOEFUSE销售代表了解详情。
2.Ordering Information
| Ampere (A) |
1A- 40 A |
| Applicable Fuse |
AB11/AB11U/AB11N/MINI/297/9977 |
| Voltage |
32/58V |
| Operating Temp |
-40° to 125° C |
| Wires |
16AWG-22AWG |
.注notes：
@环保文件以附件发送，每年更新一次；
@Environmental protection documents shall be sent as attachments and updated once a yea
@安规证书附件发送
@Attachment of safety regulation certificate
@需要详细规格书请联系我们|Please contact us if you need the detailed specification sheet.
