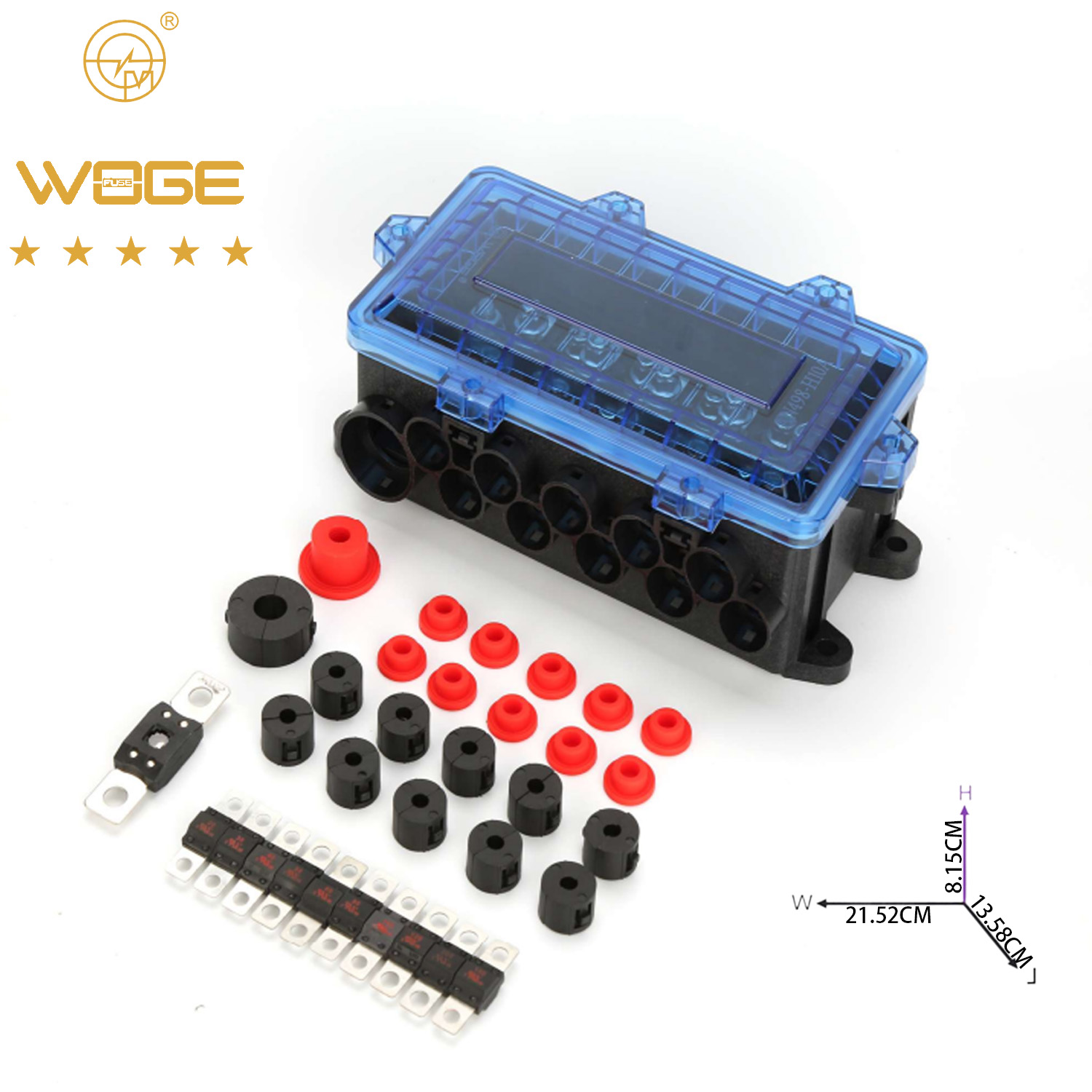

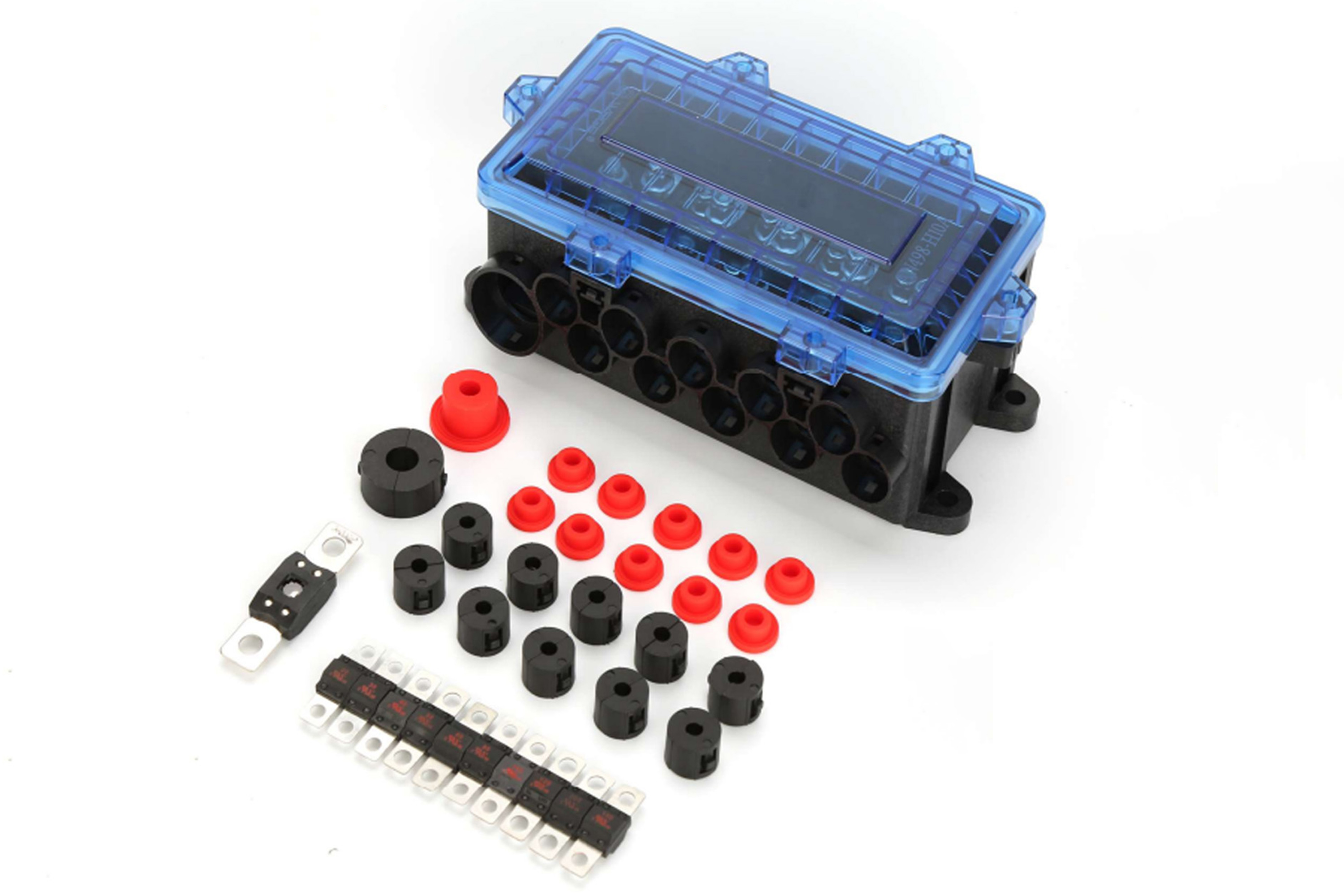

AN498-H10A螺栓连接多路防水电源保护盒
-
螺栓连接多路防水电源保护盒 | Bolted multi-channel waterproof power protection box
- 型号 | AN498-H10A
- 1.The AN498-H10A is an internal bus and waterproof fuse holder, which can be selected according to customer needs
- 1.AN498-H10A是一款内部总线且具有防水效果的保险丝座，可根据客户需求可选择一进多出或二进多出接线方式
- 2. Note
- ♦ Rated voltage: ≤70V DC
- ♦ Use environment: -40 ~ +125℃ u
- ♦ Waterproof grade: IP67 or IP69K
- ♦ Material: plastic, copper alloy, steel
- ♦ Wire specifications: Input ≤95mm², output ≤25mm²
- ♦ Wiring method: One in N out (N≤10), two in N out (N≤9)
- ♦ Recommended insurance :ANMA/AN998/AN498 /AN478/AN492 15A ~ 250A
- 2.说明
♦额定电压：≤70V DC
♦使用环境： -40～+125℃ u
♦防水等级：IP67或IP69K
♦材质：塑料，铜合金，钢
♦电线规格：输入≤95mm²,输出≤25mm²
♦接线方式： 一进N出（N≤10），两进N出（N≤9）
♦推荐保险:ANMA/AN998/AN498 /AN478/AN492 15A～250A
- 3 Features
- ◆ Stopper anti-stay design can prevent installation errors
- ◆ Novel stopper structure, easy to install and disassemble
- ◆ The front arrow of the top cover is the direction of current entry and exit, easy to install
- ◆ Use M6 bolts to lock the top cover, provide greater locking force
- ◆ Use built-in nut fixing method, reduce abnormal noise and drop
- ◆ can realize a variety of inlet and outlet wiring methods,
- ◆ The inlet and outlet wire terminals are separated to ensure maximum safety, and the retaining wall is equipped to place the wire distortion is too serious/the temperature is too high to burn the seat
- 3特征
- ◆堵头防呆式设计可防止安装错误
◆新颖的堵头结构，方便安装与拆卸
◆上盖正面箭头为电流进出方向，方便安装
◆使用M6螺栓锁紧上盖，提供更大的锁紧力
◆采用内嵌式螺母固定方式，减小异响及掉落
◆可实现多种进出线接线方式，扩大了产品兼容性 - ◆进出线接线柱分开确保最大安全性，并设有挡墙放置导线扭曲过于严重/温度过高时烧毁座体
- 注notes：
- @环保文件以附件发送，每年更新一次；
- @Environmental protection documents shall be sent as attachments and updated once a year;
- @安规证书附件发送；
- @Attachment of safety regulation certificate
