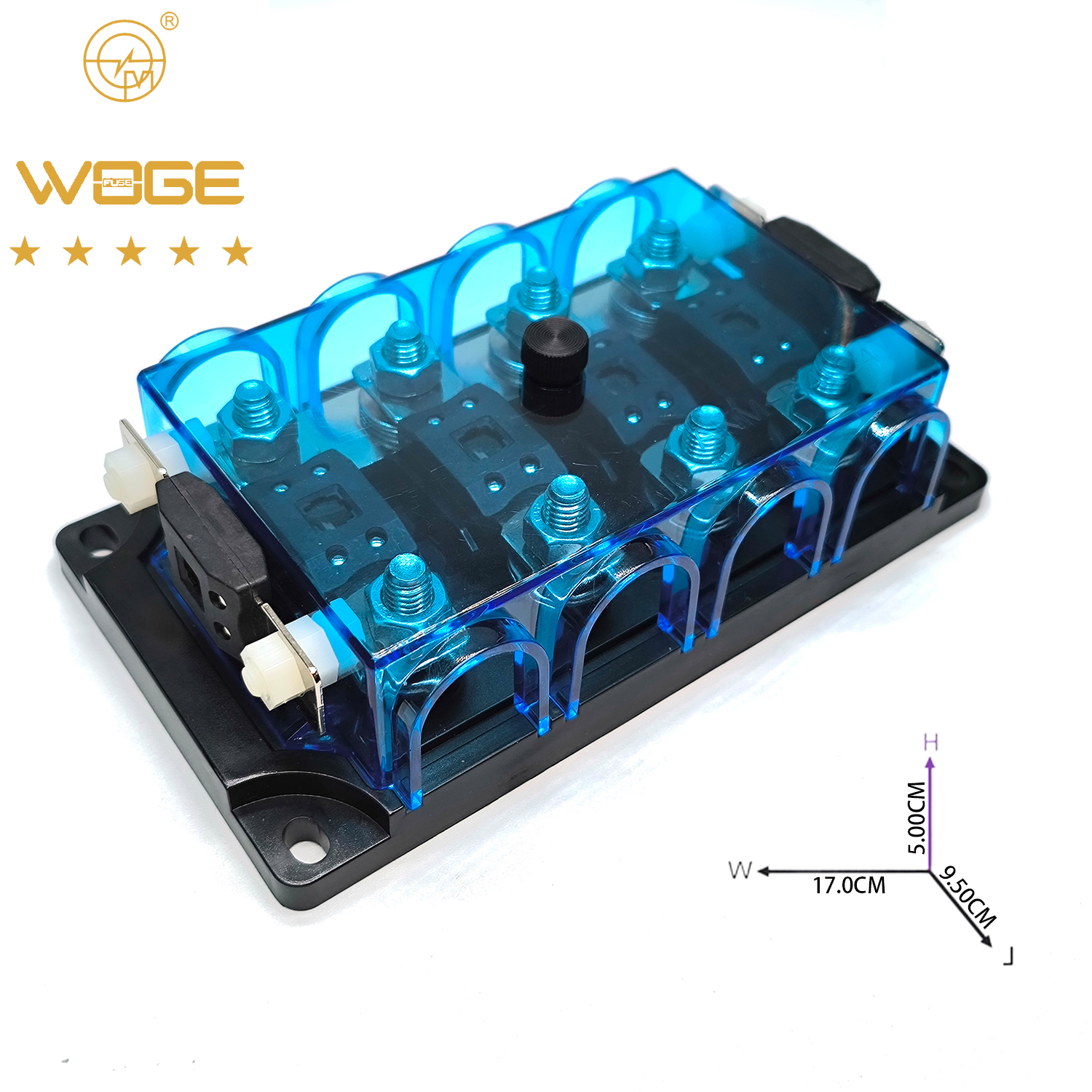

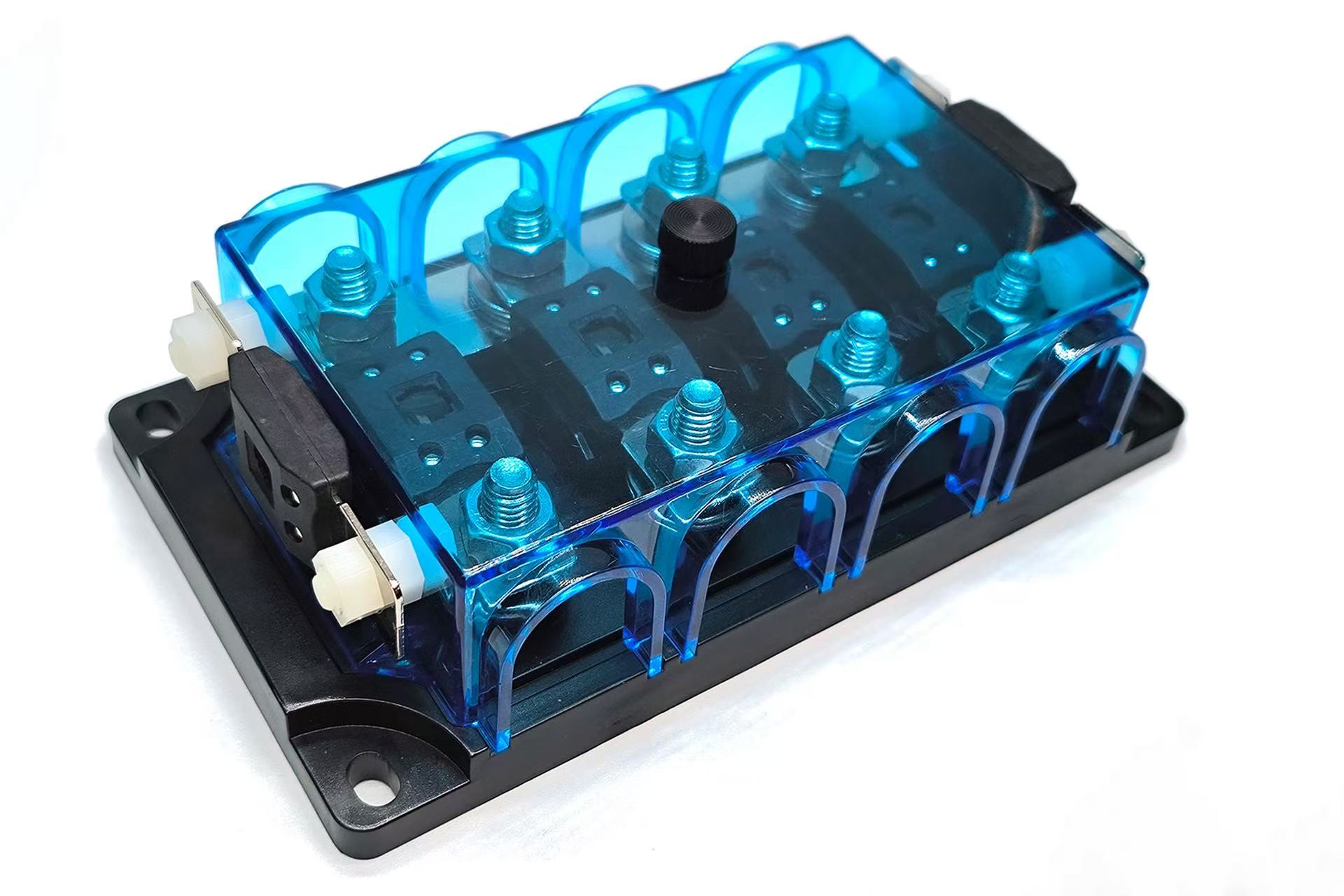

ANMZ-H04 多路螺栓保险丝盒

  • 2025-04-08 16:42:33
  • 0
多路螺栓保险丝盒 | Bolt plate fuse Box Multipoint wirin
  1. 型号 | model: ANMZ-H04



  1. 1.ANMZ-H04 is a fuse holder with bolt fuses installed inside, and customers can choose a 4-in-4-out wiring method according to their needs
  2. 1.ANMZ-H04是一款内部装有螺栓保险丝的保险丝座,可根据客户需求可选择4进4出的出接线方式

  3. 2Note
  1. ♦ Rated voltage: ≤ 80V DC
  2. ♦ Use environment: -40 ~ +125℃ u
  3. ♦ Material: Plastic, Copper Alloy, Steel
  1. ♦ Tightening force: Fuse tightening force (M8) 12~13 N.m, box fastening force (M5) 5~7N. m
  2. ♦ Wiring method: Four in N out (N ≤ 9)
  3. ♦ Recommended insurance :ANMA/AN998 40A~500A
  1. 2.说明
    ♦额定电压:≤80V DC
    ♦使用环境: -40~+125℃ u
    ♦紧固力:保险丝紧固力(M8)12~13 N.m, 盒装紧固力(M5)5~7N.m
    ♦材质:塑料,铜合金,钢
    ♦电线规格:输入≤95mm²,输出≤25mm²
    ♦接线方式: 四进N出(N≤9)
    ♦推荐保险:ANMA/AN998 40A~500A

  2. 注notes:
  3. @环保文件以附件发送,每年更新一次;
  4. @Environmental protection documents shall be sent as attachments and updated once a year;
  5. @安规证书附件发送;
  6. @Attachment of safety regulation certificate
