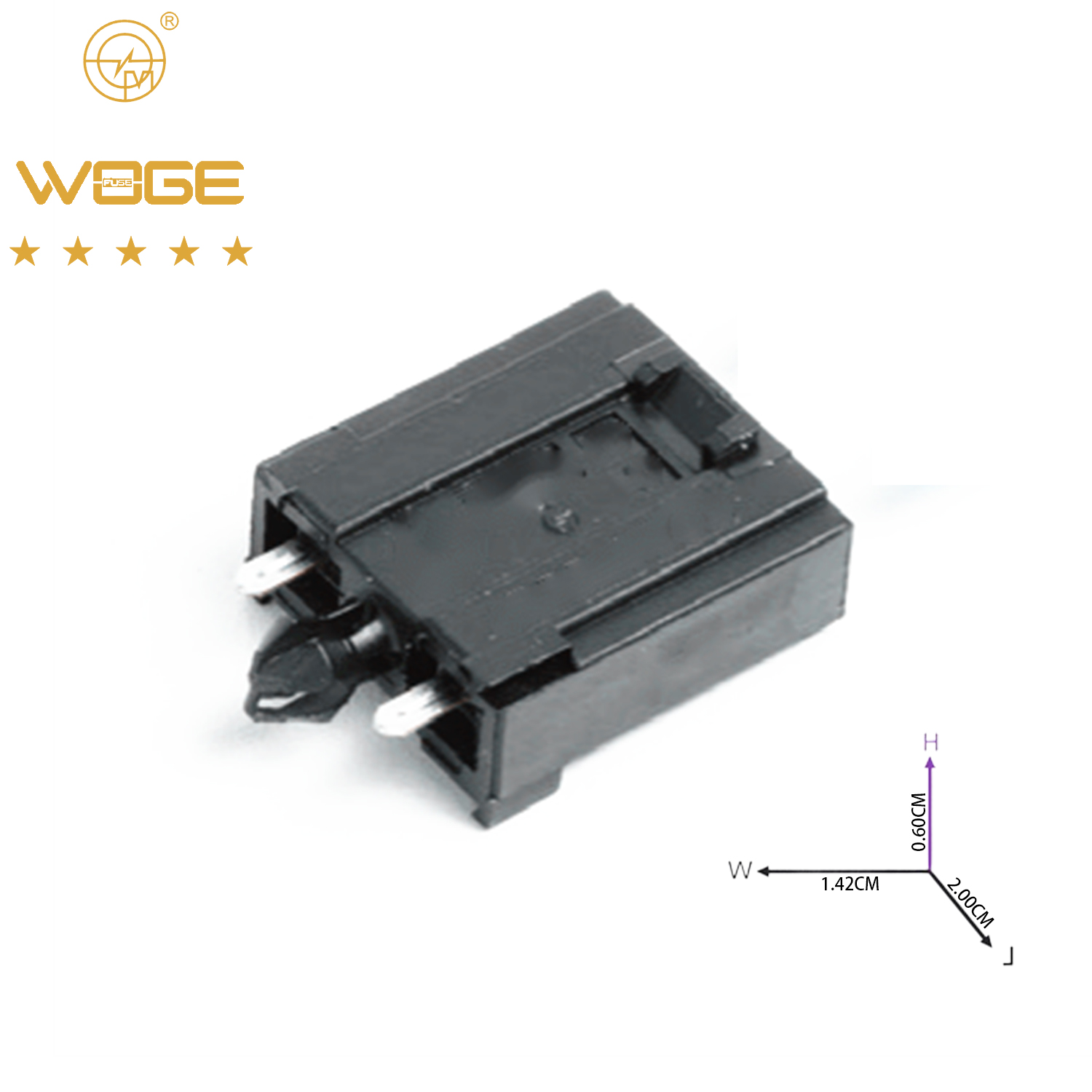

WGB178 小型保险丝座

  • 2025-04-09 17:20:47
  • 0
  1. 小型保险丝座  | AB11 Small fuse holder
  2. 型号 | model:  WGB 178
  3. 安装方式  | nstallation method   : PCB波峰焊| PCB wave soldering

  4. Specifications | 规范
  5. Brand:wogefuse
  6. Fuse Hardware: AB11U/AB11N/297/997  Auto Fuses
  7. Available Fuse Rating: 1A-40A
  8. Max Voltage: 32V/58 V  dc
  9. Max Fuse Rating: 30A
  10. Operating Temp: - 25 ° ~1 2 5° C
  11. Flame retardant grade: UL-94V0
  12. Withstand voltage: 1000V
  13. Practical scope: instrument, ship, Chong New Energy Vehicle Assembly, mobile power supply, energy storage battery, car battery, car audio RV modification
  14. Note: If there is no notification of product size changes, please contact the sales consultant;
  15.
  16. Specifications | 规范
  17. 品牌 :沃格精密
  18. 适用保险丝: AB11U/AB11N/297/997 汽车保险丝
  19. 可用保险丝额定值: 1A-40A
  20. 最大电压: 32V/58V直流
  21. 最大保险丝额定值: 30A
  22. 工作温度: -25°~125°C
  23. 阻燃等级:UL-94V0
  24. 耐压:1000V
  25. 实用范围:仪器、船舶、崇新能源汽车总成、移动电源、储能电池、汽车电池、汽车音响RV改装
  26. 注:未通知产品尺寸变化 , 请联系销售顾问 ;

    1. 注notes:
    2. @环保文件以附件发送,每年更新一次;
    3. @Environmental protection documents shall be sent as attachments and updated once a year;
    4. @安规证书附件发送;
    5. @Attachment of safety regulation certificate
