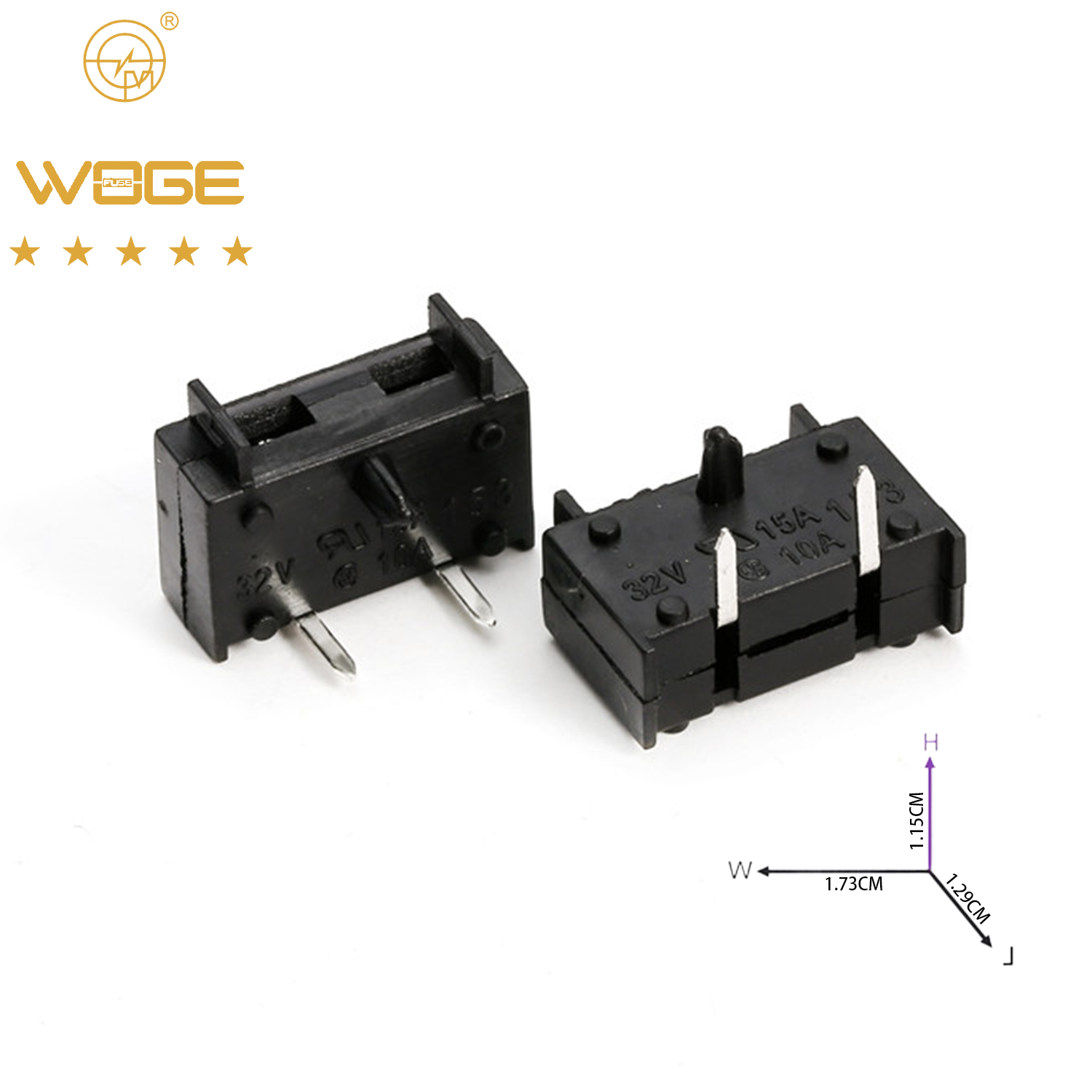

WG1537 小型保险丝座

  • 2025-04-09 17:20:20
  • 0
  1. 小 型保险丝座  | AB1 1   Small fuse holder
  2. 型号 | model:  WG1537
  3. 安装方式   | nstallation method   : PCB波峰焊| PCB wave soldering

Specifications | 规范

  1. Brand:WOGEFUSE
  2. Fuse Hardware: AB11U/AB11N/297/997 Auto Fuses
  3. Available Fuse Rating: 1A-40A
  4. Max Voltage: 32V/58 V  dc
  5. Max Fuse Rating: 30A
  6. Operating Temp: - 25 ° ~ 1 2 5° C
  7. Flame retardant grade: UL-94V0
  8. Withstand voltage: 1000V
  9. Practical scope: instrument, ship, Chong New Energy Vehicle Assembly, mobile power supply, energy storage battery, car battery, car audio RV modification
  10. Note: If there is no notification of product size changes, please contact the sales consultant;
  11.
  12. Specifications | 规范
  13. 品牌 :沃格精密
  14. 适用保险丝: AB11U/AB11N/297/997 汽车保险丝
  15. 可用保险丝额定值: 1A-40A
  16. 最大电压: 32V/58V直流
  17. 最大保险丝额定值: 30A
  18. 工作温度: -25°~125°C
  19. 阻燃等级:UL-94V0
  20. 耐压:1000V
  21. 实用范围:仪器、船舶、崇新能源汽车总成、移动电源、储能电池、汽车电池、汽车音响RV改装
  22. 注:未通知产品尺寸变化 , 请联系销售顾问 ;


  1. 注notes:

    @环保文件以附件发送,每年更新一次;

    @Environmental protection documents shall be sent as attachments and updated once a year;

    @安规证书附件发送;

    @Attachment of safety regulation certificate
