AB09101119 多头转接型取电联接器座

  • 2024-10-10 16:46:12
  • 0

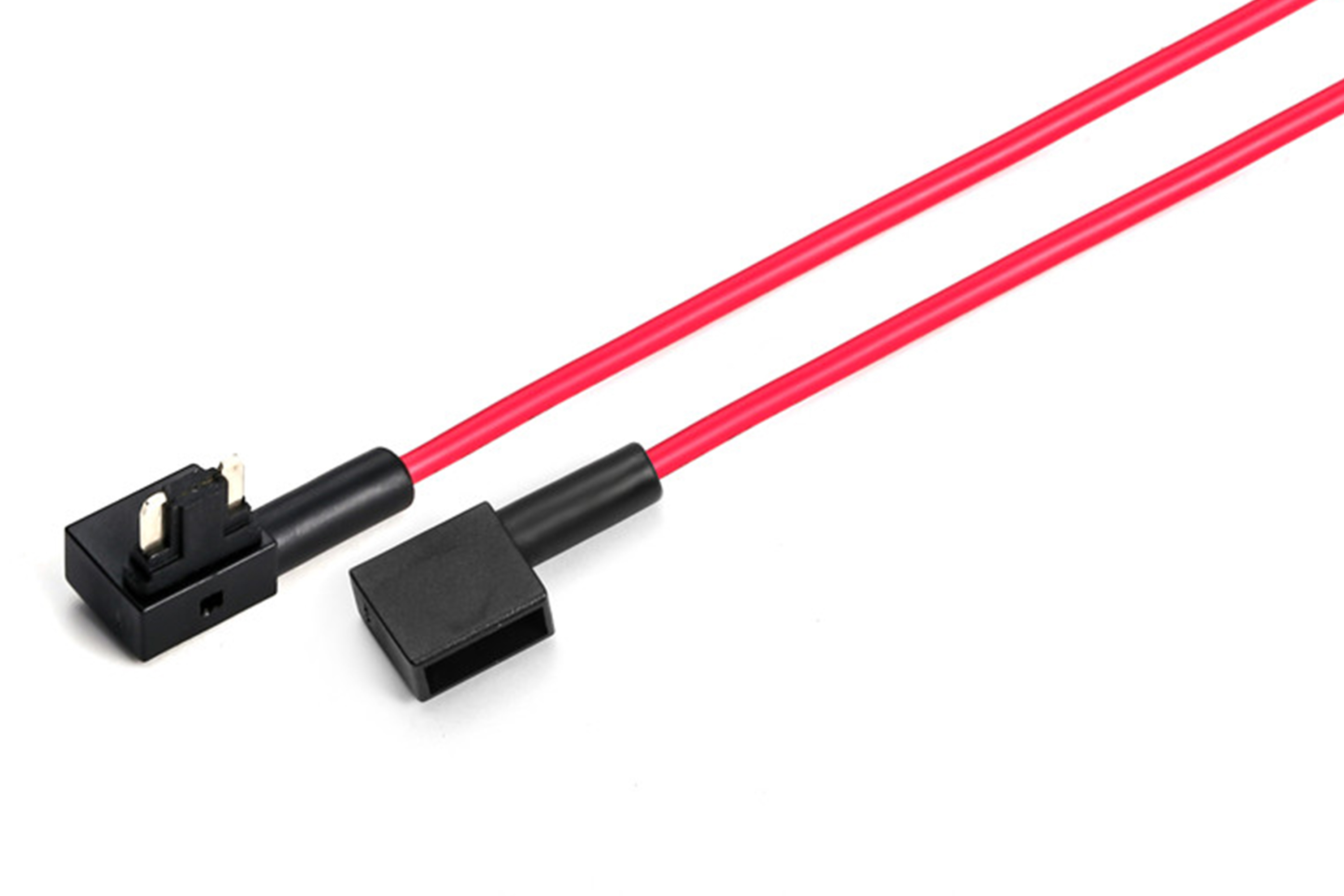

多头转 型取电联接器座 | Multihead transfe  Power connector base

引线 14 AWG-22AWG |Waterproof tape lead  14 AWG- 22 AWG

型号 | model: AB09101119

Specifications | 规范

Fuse Hardware: AB 10,AB10,AB11,AB19  Fuses

Available Fuse Rating: 5 A- 30 A

Max Voltage: 32V

Max Fuse Rating: 30A

Operating Temp: -40° to 125° C

Wire Size: See Optional (Standard)

Wire Insulation: Optional (Standard)

Contacts:  Copper AlloyTin-Plated

规格 |规范

适配 保险丝: AB 10,AB10,AB11,AB19 保险丝

可用保险丝额定值: 5 A- 30 A

最大电压: 32 Vdc

最大保险丝额定值: 30A

工作温度: -40°至1 2 5°C

导线尺寸:请参阅可选(标准)

电线绝缘:请参阅可选(标准)

触点:铜合金镀锡
