EATY系列汽车电路断路器
- 2022-12-28 14:41:59
- 0

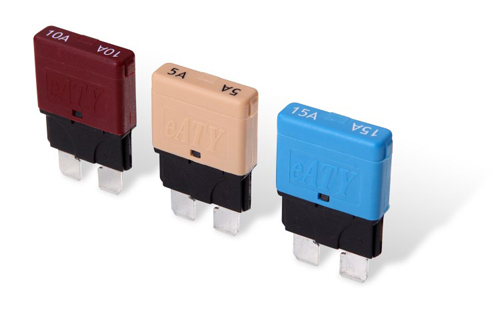

汽车过载保护器 EATY 产品详情
型号：EATY
规格：EATY 5-30A 14VDC
Automatic Reset Type (Type II)
| Operating Temperature Rating | -40 to 85 |
| Storage Temperature Rating | -40 to 125 |
| Materials | UL-Rated 94V-0 thermoplastic body |
| Tin-plated Brass Alloy Terminal. | |
| Marking | Ampere, Voltage and Part No.(eATY); |
| Cover is Color-coded to Amperage Raings. | |

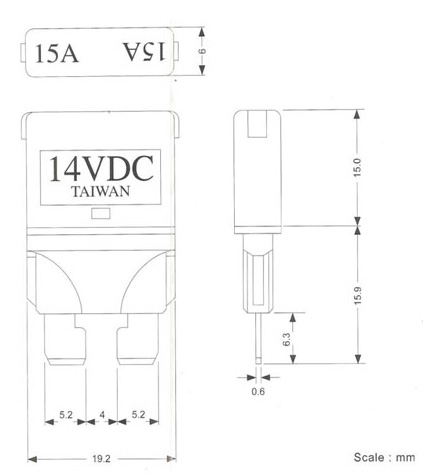

| Termination | 5.2mm Wide Blades Comppatible With ATY-N Type Fuse Blocks. |
| Compliances | SAEJ553 Type I |
| Typical Applications | Extra low voltage wiring Systems on all types of vehicles and marine craft. |
Ordering Information
| Part Number | Ampere (A) | Voltage (VDC) |
| e-ATY-5 | 5A | Lt.Brown |
| e-ATY-6 | 6A | Black |
| e-ATY-7.5 | 7.5A | Brown |
| e-ATY-8 | 8A | Brown |
| e-ATY-10 | 10A | Red |
| e-ATY-15 | 15A | Blue |
| e-ATY-20 | 20A | Yellow |
| e-ATY-25 | 25A | White |
| e-ATY-30 | 30A | Green |
