Car Fuse iATY Product Details
Model: iATY
Specifications: iATY 5-30A 28V
IATY Car plug reset fuse
Manual Reset Type (Type III)
| Rating | 5-30A 28VDC |
| Operating Temperature Rating | -40 to 85 |
| Storage Temperature Rating | -40 to 125 |
| Materials | UL-Rated 94V-0 thermoplastic body |
| Tin-plated Brass Alloy Terminal. | |
| Marking | Ampere, Voltage and Part No.(eATY); |
| Cover is Color-coded to Amperage Raings. | |

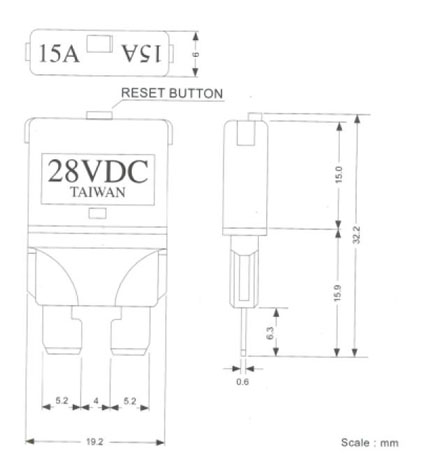

| Termination | 5.2mm Wide Blades Comppatible With ATY-N Type Fuse Blocks. |
| Compliances | SAEJ553 Type I |
| Typical Applications | Extra low voltage wiring Systems on all types of vehicles and marine craft. |
Ordering Information
| Part Number | Ampere (A) | Voltage VDC |
| i-ATY-5 | 5A | Lt.Brown |
| i-ATY-6 | 6A | Black |
| i-ATY-7.5 | 7.5A | Brown |
| i-ATY-8 | 8A | Brown |
| i-ATY-10 | 10A | Red |
| i-ATY-15 | 15A | Blue |
| i-ATY-20 | 20A | Yellow |
| i-ATY-25 | 25A | White |
| i-ATY-30 | 30A | Green |
