0603  1A-8A  32V/63Vdc 速熔|Rapid melting

  • 2022-08-06 19:07:51
  • 0

贴片保险丝|SMD Fuses  型号|model:0603  1A-8A  32V/63Vdc   Rohs
@速熔|Rapid melting

@慢熔|Slow melting

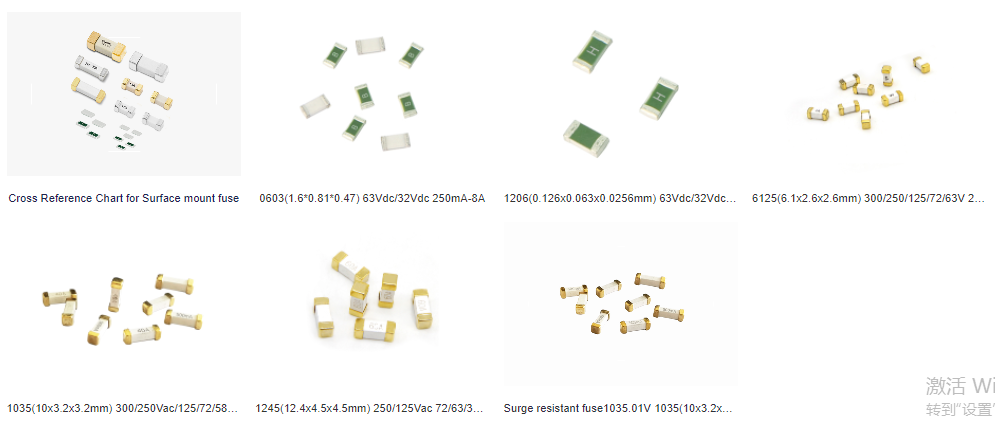

0603(1.6*0.81*0.47) 63Vdc/32Vdc 250mA-8A

Dimensions(mm)




Description

The 0603 surface mount fuses are specifically tested to cater secondary circuit protection needs of compact auto electronics application. The general design ensures excellent temperature stability and performance reliability. The high I²t values ensure high inrush current withstand capability.

Catalog Symbol Size Rated Voltage(V) Ampere Range  Dimensions Material Class of operation
AC DC     (LxWxH mm)
6 603 / 63/32 1A~8A 1.6*0.81*0.65mm Body: Ceramic FAST ACTING
Terminal: Silver over-plated with tin
6.1 603 / 63/32 250mA~8A 1.6*0.81*0.65mm Body: Ceramic SLOW BLOW
Terminal: Silver over-plated with tin

Applications

• Li-ion Battery        • LED Head-Lights                                      • Automotive Navigation System

• TFT Display           • Battery Management System (BMS)        • Clusters
