AB10 1A-30A 58Vdc
- 2022-08-04 20:08:12
- 0
低背保险丝 AB10 1A-30A 58Vdc Rohs
速熔|Rapid melting
1.Scope- The fuses shown are for in motor vehicles，boats and trailers，The fuses shown are for in motor vehicles，Power Supply，boats and trailers，to protect ect electricai wiring and equipment。This standard isfor the construction shown and is not intended to restrict thedesign and use of other configurations and materials capableof meeting the vehicle requirements。
1.范围-所显示的熔断器是用于汽车，船和拖车,电源等上保护电气线路和设备。本标准是按展示设计，不是限制设计使用在其它结构和能够满足要求车辆;
| Fast Acting, Low Voltage For UP To 32v DC | |
| Material |
*Body: Plastic. *Metal: Zinc Alloy |
| Standard | According To SAE J2077 |
| To Permit More Fuses in The Same Amount of Space | |

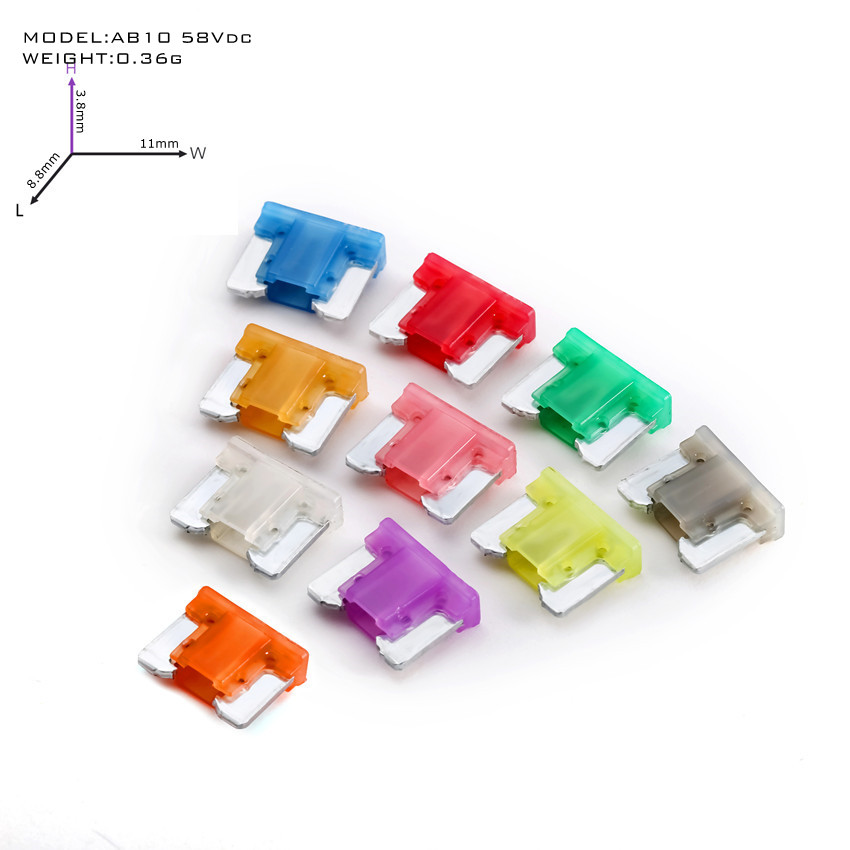

| Fuses Are Color-Coded For Easy Amperage Identification. | |
Ordering Information
| Part Number | Ampere(A) | VoltageVDC | Body Color |
| AB10002 | 2A | 32V | Gray |
| AB10003 | 3A | 32V | Violet |
| AB10004 | 4A | 32V | Pink |
| AB10005 | 5A | 32V | Tan |
| AB10075 | 7.5A | 32V | Brown |
| AB10010 | 10A | 32V | Red |
| AB10015 | 15A | 32V | Blue |
| AB10020 | 20A | 32V | Yellow |
| AB10025 | 25A | 32V | Natural |
| AB10030 | 30A | 32V | Green |
| AB10035 | 35A | 32V | Purple |
Specifications Opening Time / Pre-arcing Time
| In | 1.1In | 1.35In | 2.0In | 3.5In | 6.0In | ||||
| 3-35A | >100Hours | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. |
| 0.75 s | 1800 s | 0.15 s | 5 s | 0.04 s | 0.5 s | 0.02 s | 0.1 s | ||
注notes：
@环保文件以附件发送，每年更新一次；
@Environmental protection documents shall be sent as attachments and updated once a year;
@安规证书附件发送
@Attachment of safety regulation certificate
