AB11U 1A-40A 32Vdc
- 2024-06-18 17:02:31
- 0

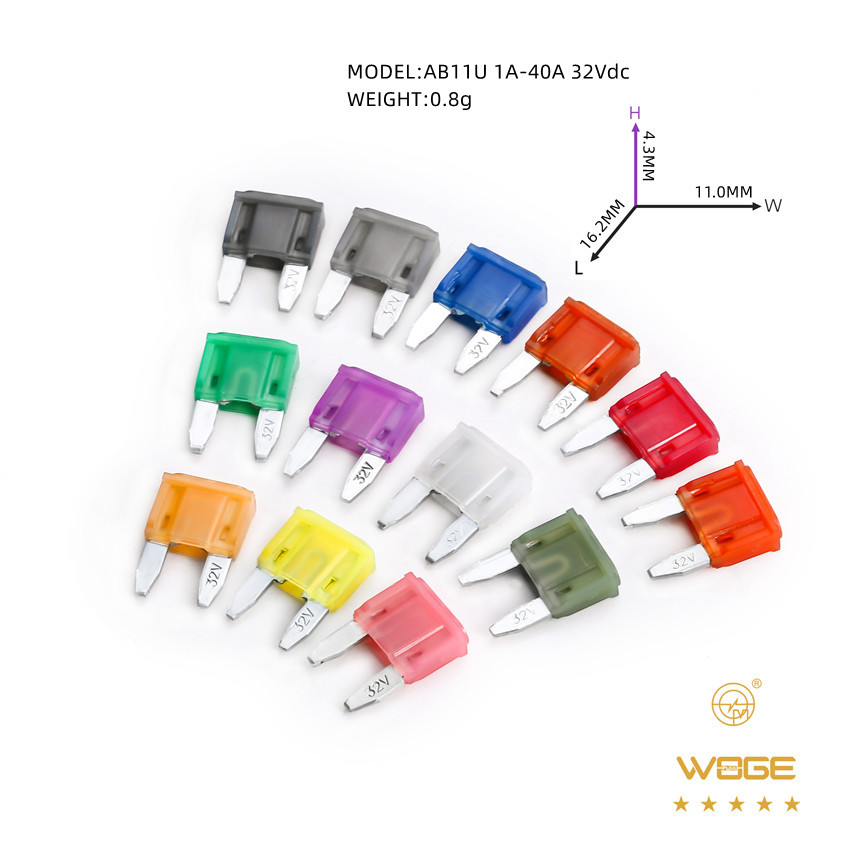

AB11U 32V
- Blade fuse
- Model | Model: AB11U 1A-40A 32Vdc UL Rohs
- Rapid meltin
- Scope - The indicated fuse is suitable for motor vehicles, ships, and trailers. The fuse shown is used for motor vehicles, power sources, ships, and trailers to protect electrical circuits and equipment. This standard applies to the structure shown and is not intended to limit the design and use of other configurations and materials that can meet the requirements of the vehicle. 1. Scope - The fuse shown is used for protecting electrical circuits and equipment on vehicles, ships, and trailers, power sources, etc. This standard is designed for display purposes and does not restrict its use in other structures or vehicles that meet the requirements; AB11U
| 快速动作，低电压高达32 v直流 | |
| Material 材料 | *Body: Plastic. * 身体：塑料. *Metal: Zinc Alloy * 金属：锌合金 |
| Standard 标准 | According To SAE J2077 根据SAE J2077 |
| To Permit More Fuses in The Same Amount of Space 在相同的空间内允许使用更多的保险丝 | |
| Fuses Are Color-Coded For Easy Amperage Identification. 保险丝采用颜色编码，便于安培数识别。 | |
Ordering Information
| Part Number | Ampere(A) | VoltageVDC | Body Color |
| AB11U001 | 1A | 32V | Black |
| AB11U02 | 2A | 32V | Lt.Gray |
| AB11U003 | 3A | 32V | Violet |
| AB11U004 | 4A | 32V | Pink |
| AB11U005 | 5A | 32V | Tan |
| AB11U075 | 7.5A | 32V | Brown |
| AB11U010 | 10A | 32V | Red |
| AB11U015 | 15A | 32V | Blue |
| AB11U020 | 20A | 58V | Yellow |
| AB11U025 | 25A | 32V | Natural |
| AB11U030 | 30A | 32V | Green |
| AB11U035 | 35A | 32V | Purple |
| AB11U040 | 40A | 32V | Orange |
Specifications Opening Time / Pre-arcing Time
| In | 1.1In | 1.35In | 2.0In | 3.5In | 6.0In | ||||
| 1-35A | >100Hours | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. |
| 0.75 s | 1800 s | 0.15 s | 5 s | 0.04 s | 0.5 s | 0.02 s | 0.1 s | ||
Interruption rating: 1000 Amperes@32V DC
注notes：
@环保文件以附件发送，每年更新一次；
@Environmental protection documents shall be sent as attachments and updated once a year;
@安规证书附件发送；
@Attachment of safety regulation certificate
