AN498 20A-250A 58Vdc
- 2024-11-12 09:40:53
- 0

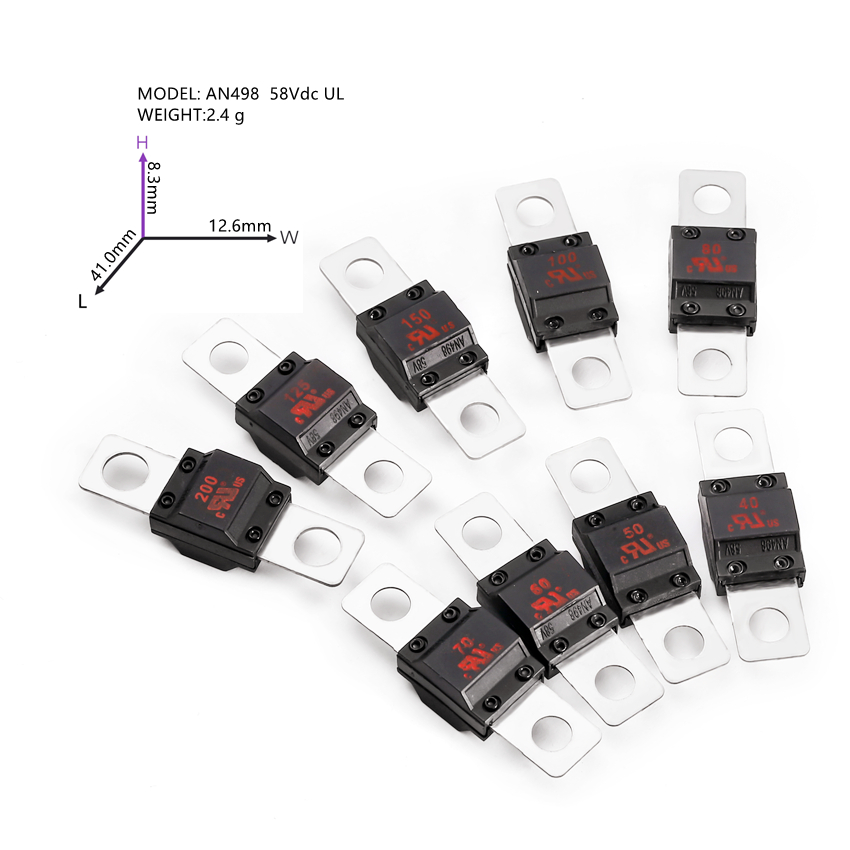

螺栓保险丝|Bolt FUSE 型号|model: AN498 20A-200A 58Vdc UL Rohs
慢熔|Slow melting
AN498保险丝为大电流接线保护提供栓接式节省空间保险丝，并通过扩散丸技术提供延时特性。
AN498 Fuse offers a bolt-on space saving fuse for high current wiring protection and provides time delay characteristics with Diffusion Pill Technology.
 |
|
For High Perform And High Power Audio Systems. Also Use Lift Trucks And Other Battery Operated System. |
|
|
Body Material |
Plastic. |
|
Metal Element |
Tinned Brass |
|
Voltage |
58v DC |
|
Ampere Rating |
20,30,40,50,60,70,80,100,125,150,200 Amps |
Refers to: ISO 8820-5:2015
Complies with: Standard UL 248-1 as a Special Purpose Fuses in
UL file (20-200A) and Directive 2011/65/EU
Ordering Information
|
Part Number |
Ampere(A) |
Voltage VDC |
Body Color |
|
AN498020 |
20 |
58V |
BLACK |
| AN498030 | 30 | 58V | BLACK |
|
AN498040 |
40 |
58V |
BLACK |
|
AN498050 |
50 |
58V |
BLACK |
|
AN498060 |
60 |
58V |
BLACK |
|
AN498070 |
70 |
58V |
BLACK |
|
AN498080 |
80 |
58V |
BLACK |
|
AN498100 |
100 |
58V |
BLACK |
|
AN498125 |
125 |
58V |
BLACK |
|
AN498150 |
150 |
58V |
BLACK |
|
AN498200 |
200 |
58V |
BLACK |
Specifications
Opening Time / Pre-arcing Time: 24 ℃
熔断特性数值如下：
额定电流 | 熔断时间20A~125A | 熔断时间150A~250A | ||
最小 | 最大 | 最小 | 最大 | |
75% | --- | --- | 100 小時 | --- |
100% | 100 小时 | --- | --- | --- |
110% | 4 小时 | --- | --- | --- |
150% | 90 秒 | 3,600 秒 | --- | --- |
200% | 3 秒 | 100 秒 | 1 秒 | 15 秒 |
300% | 0.3 秒 | 3 秒 | --- | --- |
350% | --- | --- | 0.3 秒 | 5 秒 |
500% | 0.1 秒 | 1 秒 | --- | --- |
600% | --- | --- | 0.1 秒 | 1 秒 |
注notes：
@环保文件以附件发送，每年更新一次；
@Environmental protection documents shall be sent as attachments and updated once a yea
@安规证书附件发送
@Attachment of safety regulation certificate
