东莞市沃格精密电器有限公司

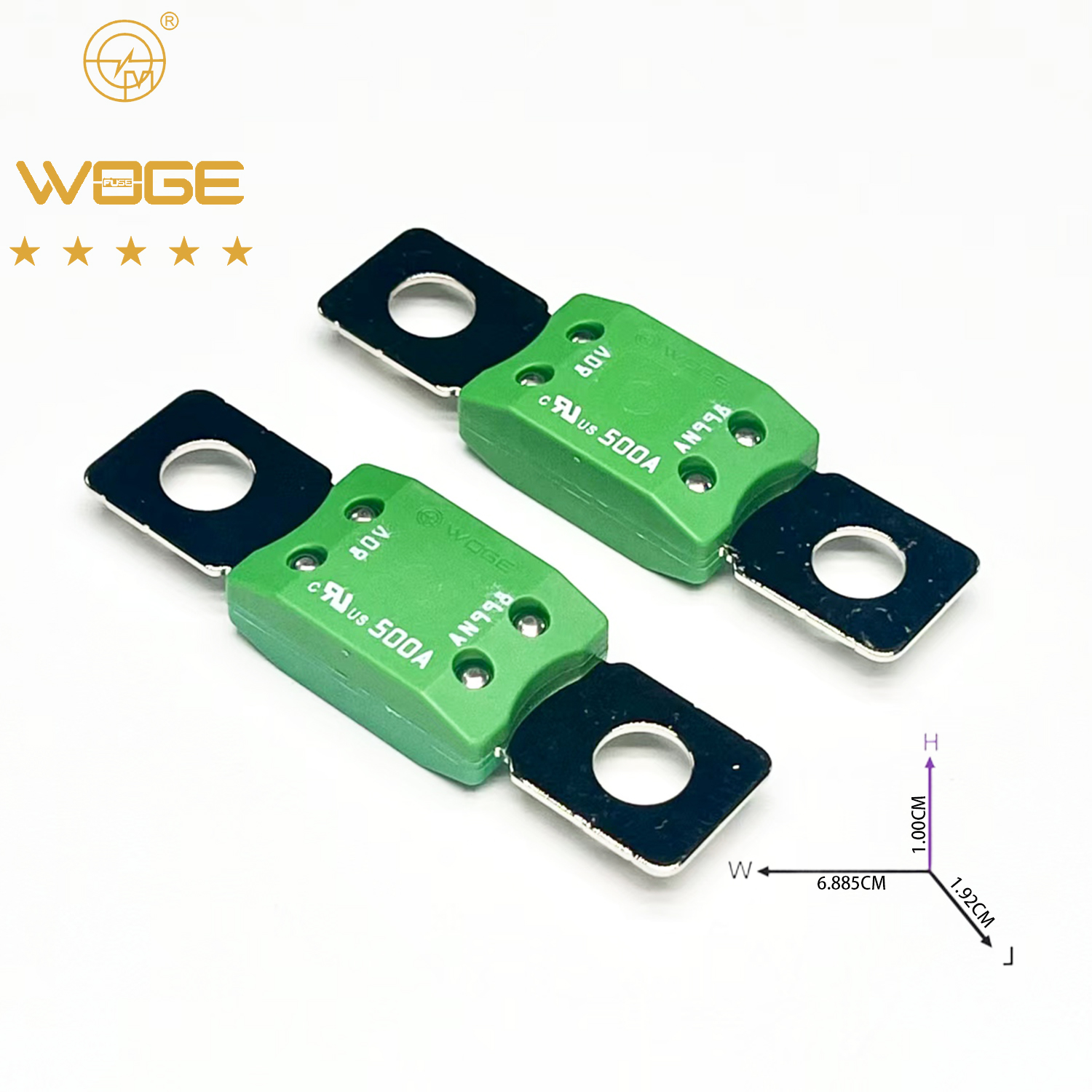

1. 螺栓保险丝|Bolt FUSE
2. 型号|model: AN998
3. 慢熔|Slow melting

1. 1.AN998熔断器设计用于高达650A的大电流电路保护，采用“扩散丸技术”，AN998熔断器还具有延时特性。an998保险丝是电池和交流发电机保护应用和其他需要超高电流保护的大规格电缆的理想选择。

1. 1.The AN998Fuse is designed for high current circuit protection up to 650A with“DiffusionPill Technology," AN998 Fuse also provides time delay characteristics.the AN998Fuse is ideal for battery and alternator protection application and other heavy gauge cablesrequiring ultra high current protection.

Ps：According to usage conditions, the characteristics of the fuse may change|根据使用狀況，保险丝特性可能改变！

1. 2.Note
2. Rated voltage: less than 80VDC
3. Breaking capacity: 2500 amperes at 80 Vdc
4. Operating temperature: -40 ℃~+125 ℃
5. Execution standard: GB/T31465.5
6. Material: copper alloy
7. Recommended fuse holder: ANMZ-H01, ANMZ-H01A


1. 2.说明
2. 额定电压：小于直流80VDC
3. 致断容量：80vdc时5000安培/ 120vdc时2500安培

4. 使用温度：-40℃～+125℃
5. 执行标准：GB/T31465.5
6. 材质：铜合金
7. 推荐使用保险丝座: ANMZ-H01, ANMZ-H01A
8.

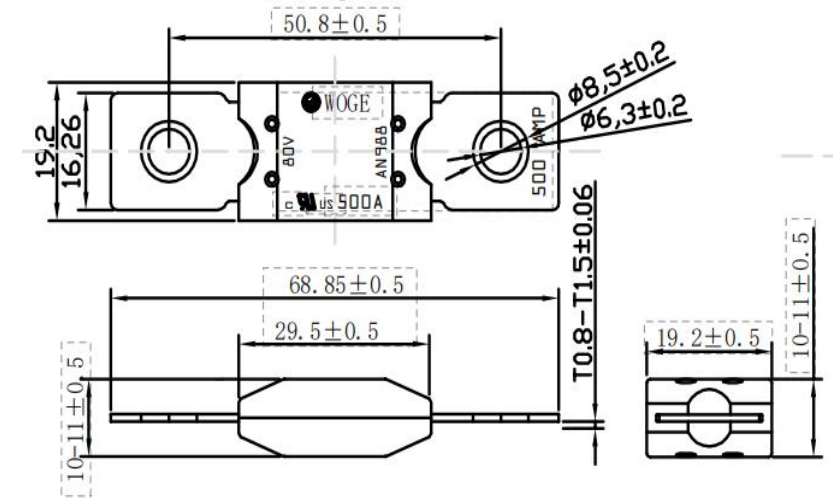

9. 3.The specifications and models of fuses are as follows|保险丝规格型号如

4.Fusing characteristics|熔断特性

注notes:
@环保文件以附件发送，每年更新一次;

@Environmental protection documents shall be sent as attachments and updated once a yea

@安规证书附件发送

@Attachment of safety regulation certificate
