AN47848 30A-350A 125V
- 2025-04-21 10:41:09
- 0

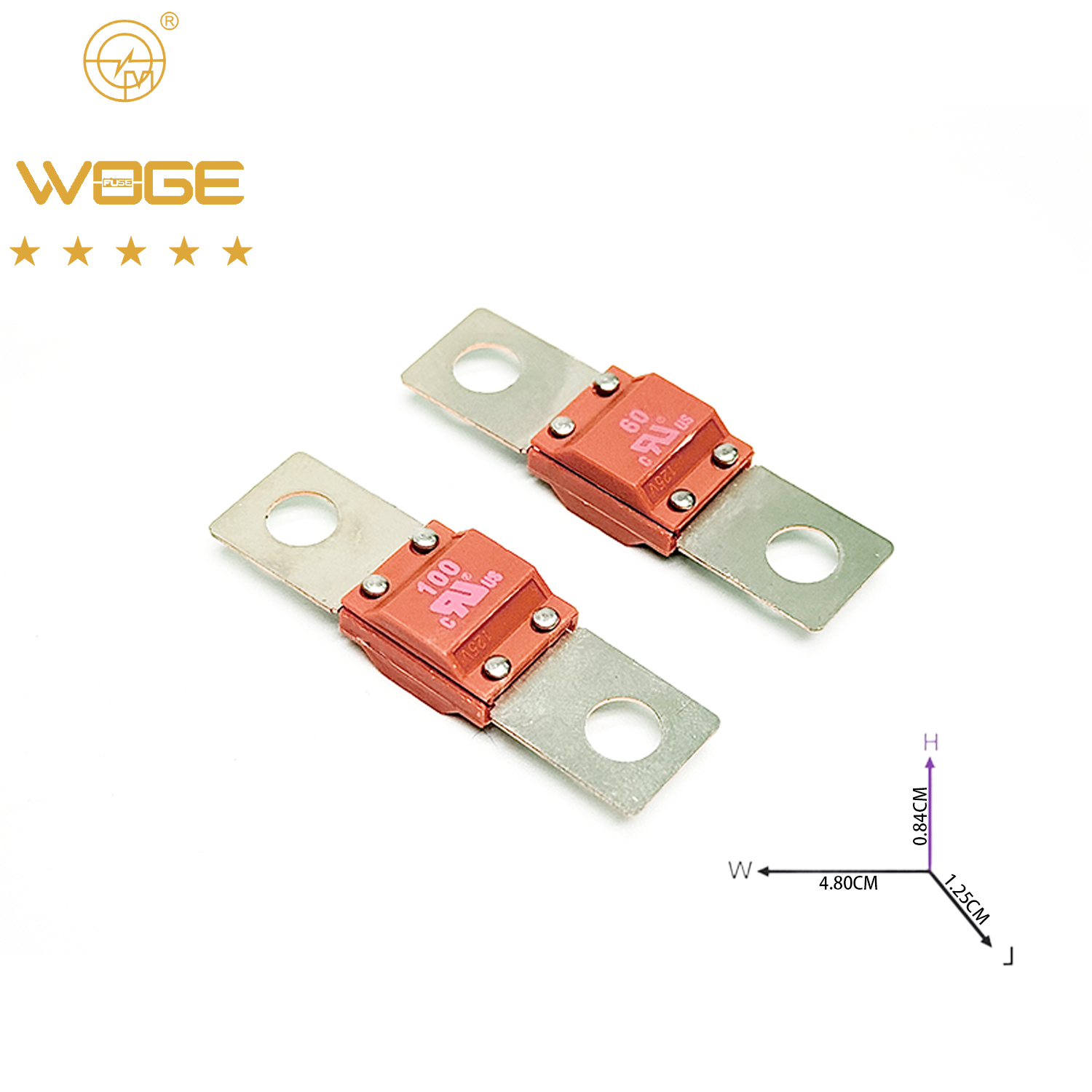

- 螺栓保险丝|Bolt FUSE
- 型号|model: AN47848
- 慢熔|Slow melting
- 安规认证|Safety certificatio
- 1.The AN47848xxx fuse offers a bilt-on space saving fuse for high current wiring protection ang provides time delay characteristics with "Diffusion pill Technology"
- 1.AN47848xxx保险丝为大电流接线提供了一种开关式节省空间的保险丝保护器采用“高分断技术”提供延时特性
Ps：According to usage conditions, the characteristics of the fuse may change|根据使用狀況，保险丝特性可能改变！
2.Note
- Rated voltage: less than 125VDC
- Breaking capacity: 2500 amperes at 125 VDC
- Operating temperature: -40 ℃~+125 ℃
- Execution standard:
- Material: copper alloy/ nickel
- 2.说明
- 额定电压：小于直流125VDC
- 致断容量：125vdc时2500安培
- 使用温度：-40℃～+125℃
- 执行标准：
- 材质：铜合金/镍
- 3.The specifications and models of fuses are as follows|保险丝规格型号如
| Material number |
Ampere rating |
Color |
Volt |
Safety regulations |
| AN47848020 |
20 | Orange |
70VDC 125VDC 125VAC |
UL |
| AN47848025 |
25 | UL | ||
| AN47848030 |
30 | UL | ||
| AN47848040 |
40 | UL | ||
| AN47848050 |
50 | UL | ||
| AN47848060 |
60 | UL | ||
| AN47848070 |
70 | UL | ||
| AN47848080 |
80 | UL | ||
| AN47848100 |
100 | UL | ||
| AN47848125 |
125 | UL | ||
| AN47848150 |
150 | UL | ||
| AN47848175 |
175 | UL | ||
| AN47848200 |
200 | UL | ||
| AN47848250 |
250 | UL | ||
| AN47848300 |
300 | UL | ||
| AN47848350 |
350 | UL |
4.Fusing characteristics|熔断特性
| % of Ampere Rating |
Ampere Rating |
Opening Time |
| 100% | 20-350A | ≥4 Hours, Minimum |
| 200% | 20-350A | ≤1０s, Minimum |
- 注notes:
@环保文件以附件发送，每年更新一次;
@Environmental protection documents shall be sent as attachments and updated once a yea
@安规证书附件发送
@Attachment of safety regulation certificate
