AN478 20-200A 72/125VDC
- 2025-04-18 15:32:42
- 0

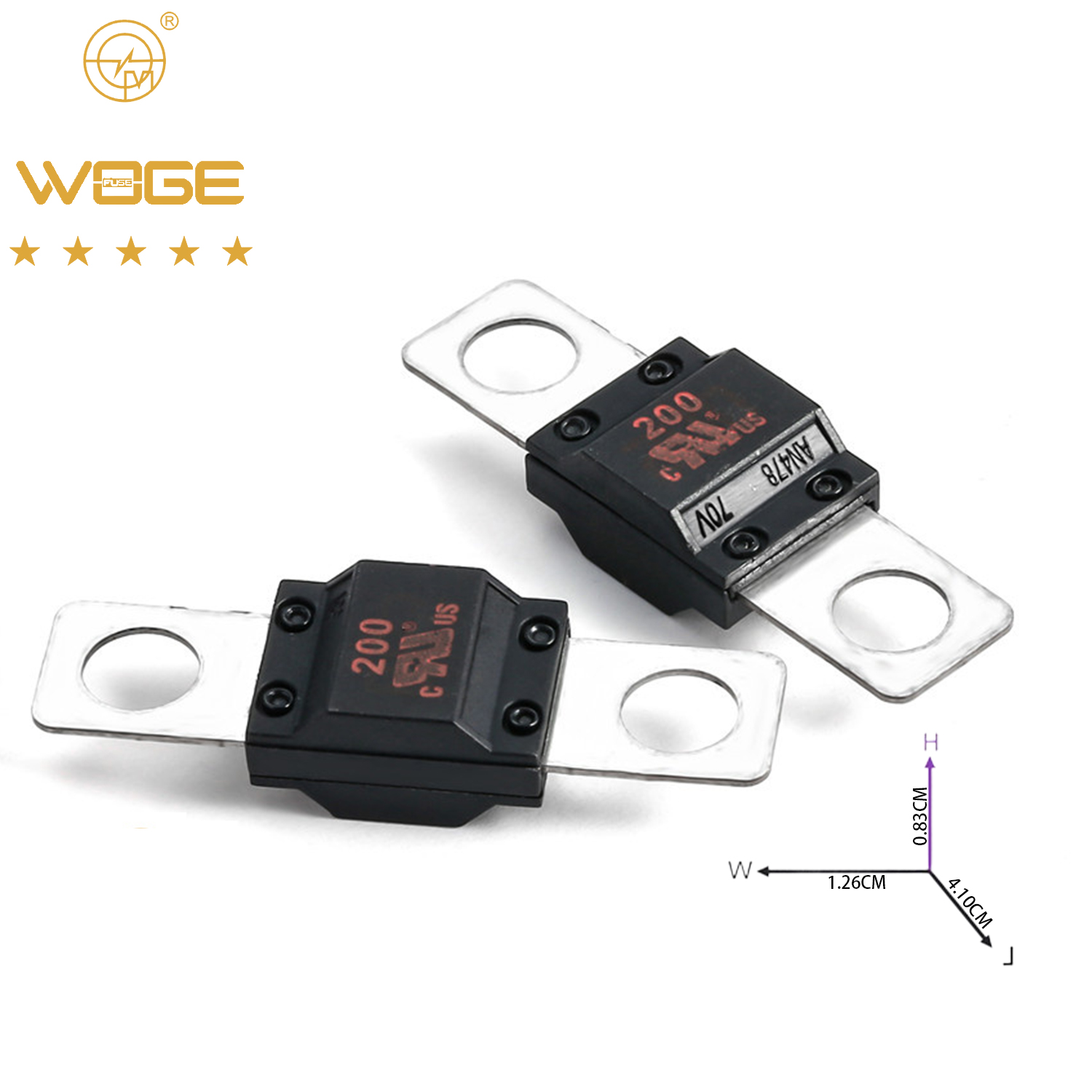

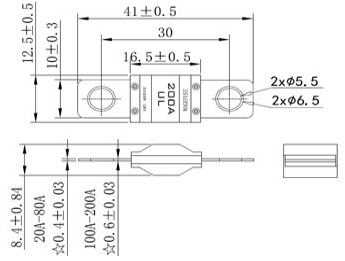

- 螺栓保险丝|Bolt FUSE
- 型号|model: AN478
- 慢熔|Slow melting
- 1.AN478保险丝为大电流接线提供了一种开关式的节省空间的保险丝保护器采用“扩散丸技术”提供延时特性
- 1.The AN478 fuse offers a bilt-on space saving fuse for high current wiring protection ang provides time
- delay characteristics with "Diffusion pill Technology
- Ps：According to usage conditions, the characteristics of the fuse may change|根据使用狀況，保险丝特性可能改变！
- 2.Note
- Rated voltage: less than 72/125VDC
- Breaking capacity: 2500A 72/125V DC
- Operating temperature: -40 ℃~+125 ℃
- Execution standard: UL 248-1
- Material: copper alloy
- Adapter fuse holder:AN4989-T,WGS04,CY-273B
Adapt to PCB terminal:AN498-PCB01 - 2.说明
- 额定电压：小于直流58V
- 致断容量：2500A/58V DC
- 使用温度：-40℃～+125℃
- 执行标准：ISO8820-5
- 材质：铜合金
- 转接保险丝座：AN4989-T，WGS04,CY-273B
适用于PCB端子：AN498-PCB01
- 3.The specifications and models of fuses are as follows|保险丝规格型号如
| Material Number | Ampere Rating | Test Cable Size | Color | Volt | Safaety Regulations |
| AN478020 | 20 | 2 | BLACK/WHITE | 70VDC UL 72VDC 125VAC UL |
UL |
| AN478025 |
25 | 2.5 | UL | ||
| AN478030 |
30 | 2.5 | UL | ||
| AN478040 |
40 | 4 | UL | ||
| AN478050 |
50 | 6 | UL | ||
| AN478060 |
60 | 6 | UL | ||
| AN478070 |
70 | 10 | UL | ||
| AN478080 |
80 | 10 | UL | ||
| AN478100 |
100 | 10 | UL | ||
| AN478125 |
125 | 16 | UL | ||
| AN478150 |
150 | 25 | UL | ||
| AN478175 |
175 | 25 | UL | ||
| AN478200 |
200 | 35 | UL |
| %Ampere Rating | Ampere Rating | Opening Time |
| 75% | 150-200A | 100Hours,Minimum |
| 100% | 20-125A | 100Hours,Minimum |
| 135% | 20-125A | 300sec,Min:3600sec,Max |
| 150% | 20-125A | 90sec,Min:500sec,Max |
| 200% | 20-125A 150-200A | 1sec,Min:50sec,Max |
| 300% | 20-125A | 1sec,Min:15sec,Max |
| 350% | 150-200A | 0.3sec,Min:4sec,Max |
| 500% | 20-125A | 0.1sec,Min:1sec,Max |
| 600% | 150-200A | 0.07sec,Min:0.7sec,Max |
注notes：
@环保文件以附件发送，每年更新一次；
@Environmental protection documents shall be sent as attachments and updated once a year;
@安规证书附件发送；
@Attachment of safety regulation certificat
