ANMG 30A-650A 120V
- 2025-04-15 10:06:04
- 0

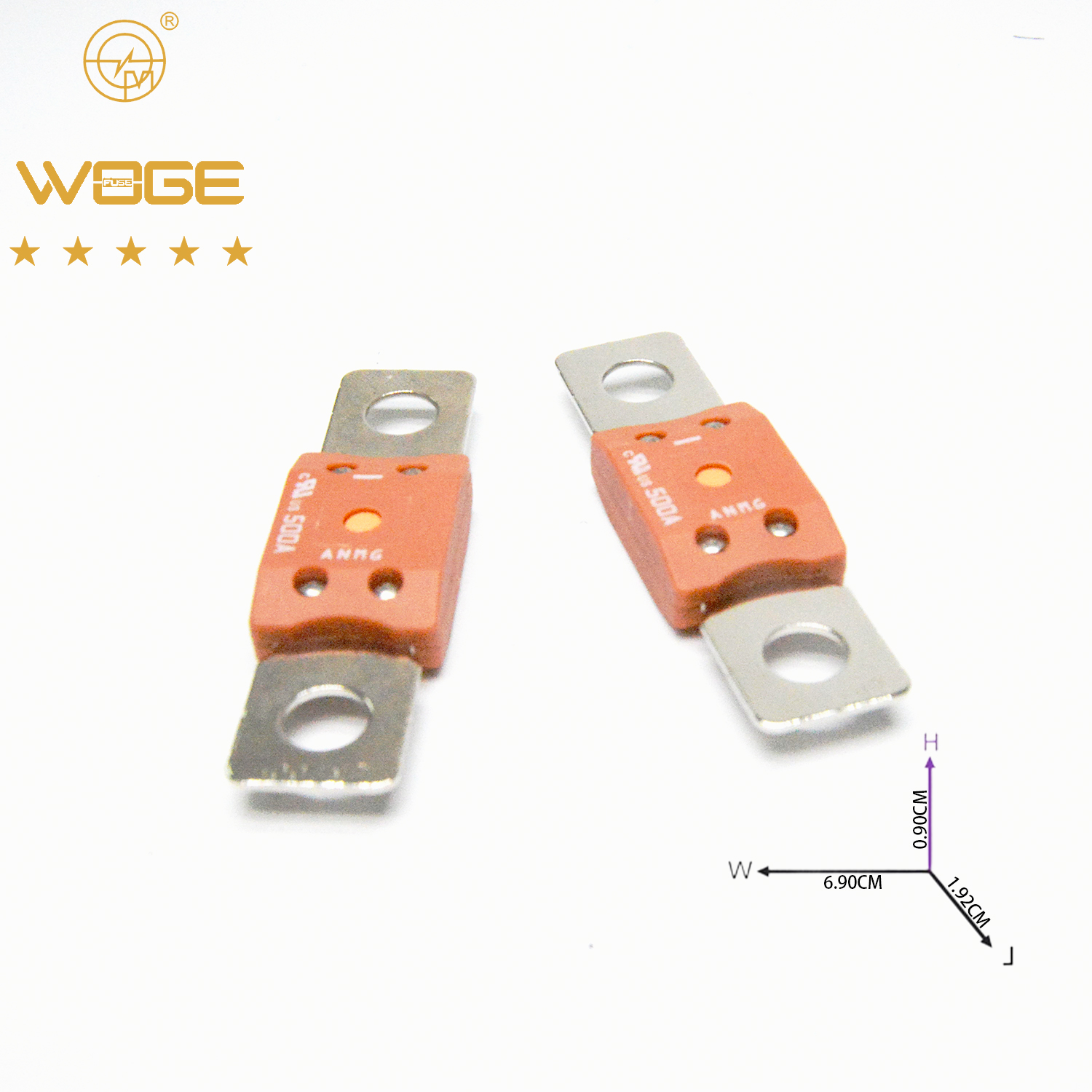

- 螺栓保险丝|Bolt FUSE
- 型号|model: ANMG
- 慢熔|Slow melting
- 1.ANMZ-120保险丝设计用于高达650A的大电流电路保护,高分断技术”。ANMZ-120熔断器还提供延时特性。ANMZ保险丝是理想的电池以及交流发电机保护应用和其他需要超高电流的大规格电缆保护。
1.The ANMZ-120 Fuse is designed for high current circuit protection up to 650A with “DiffusionPill Technology.” ANMZ-120 Fuse also provides time delay characteristics. the ANMZ Fuse is ideal for battery and alternator protection application and other heavy gauge cables requiring ultra-high current protection.
- Ps：According to usage conditions, the characteristics of the fuse may change|根据使用狀況，保险丝特性可能改变！
- 2.Note
- Rated voltage: less than 120VDCBreaking capacity:5000 amperes at 80 Vdc /2500 amperes at 120 VdcOperating temperature: -40 ℃~+125 ℃
- Execution standard:ISO 20934–Type SF56/UL248-13
- Material: copper alloy
- Recommended fuse holder: ANMZ-H01, ANMZ-H01A
- 2.说明
- 额定电压：小于直流120VDC
- 致断容量：80vdc时5000安培/ 120vdc时2500安培
- 使用温度：-40℃～+125℃
- 执行标准：ISO 20934–Type SF56/UL248-13
- 材质：铜合金
- 推荐使用保险丝座: ANMZ-H01, ANMZ-H01A
- 3.The specifications and models of fuses are as follows|保险丝规格型号如下
| Material number |
Ampere rating |
Color |
Volt |
Safety regulations |
| ANMG040 | 40 | Orange | 80VDC 120VDC |
/ |
| ANMG050 |
50 | / | ||
| ANMG060 |
60 | / | ||
| ANMG070 |
70 | / | ||
| ANMG080 |
80 | / | ||
| ANMG100 |
100 | / | ||
| ANMG125 |
125 | / | ||
| ANMG150 |
150 | / | ||
| ANMG175 |
175 | / | ||
| ANMG200 |
200 | / | ||
| ANMG225 |
225 | / | ||
| ANMG250 |
250 | / | ||
| ANMG275 |
275 | / | ||
| ANMG300 |
300 | / | ||
| ANMG325 |
325 | / | ||
| ANMG350 |
350 | / | ||
| ANMG375 |
375 | / | ||
| ANMG400 |
400 | / | ||
| ANMG450 |
450 | / | ||
| ANMG500 |
500 | / | ||
| ANMG650 |
650 | / |
4.Fusing characteristics|熔断特性
| 额定电流% |
熔断时间 |
|||||
| 20-250A | 300A | 350-650A | ||||
| 最小 | 最大 |
最小 |
最大 |
最小 |
最大 | |
| 75%Rating | - | - | 14400s | - | 14400s | - |
| 100%Rating |
14400s | - | - | - | - | - |
| 135%Rating |
120s | 1800s | 120s | 1800s | - | - |
| 200%Rating |
1s | 15s | 1s | 15s | 1s | 15s |
| 350%Rating |
0.300s | 5s | 0.500s | 5s | 0.500s | 5s |
| 600%Rating |
0.100s | 1s | 0.100s | 1s | 0.100s | 1s |
- 注notes:
- @环保文件以附件发送，每年更新一次;
- @Environmental protection documents shall be sent as attachments and updated once a yea
- @安规证书附件发送
- @Attachment of safety regulation certificate
