AN47848T(陶瓷) 125V 20A-350A
- 2025-04-11 15:21:30
- 0

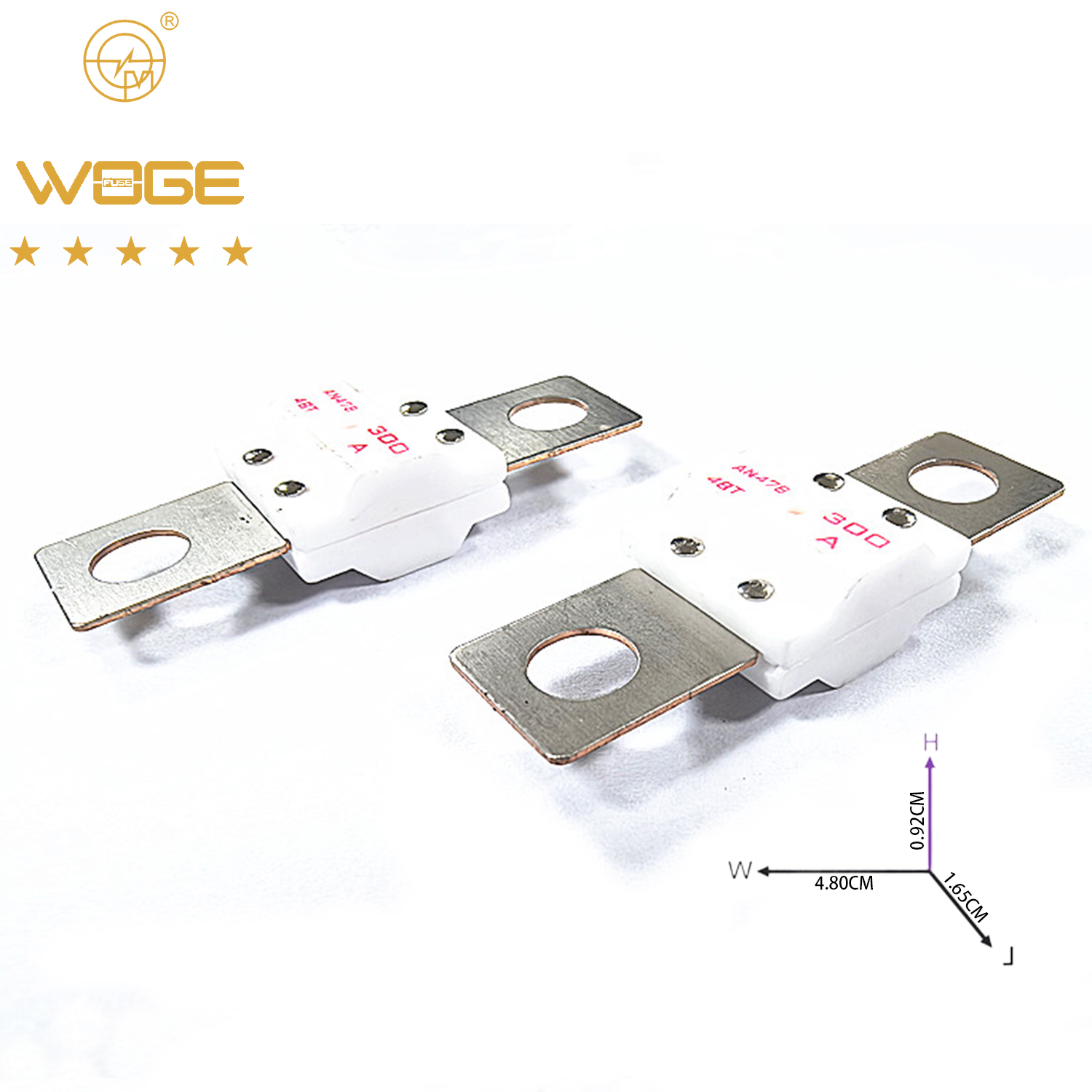

- 螺栓保险丝|Bolt FUSE
- 型号|model: AN47848T(陶瓷)
- 慢熔|Slow melting
- 1.AN47848 Txxx熔断器为大电流接线保护提供了一种不占用空间的熔断器，并具有“D灌注丸技术”尺寸图的延时特性.

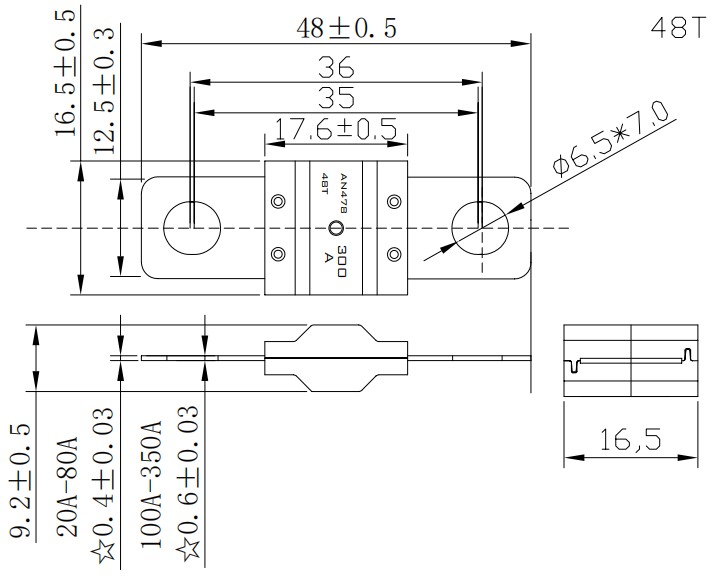

- 1.The AN47848 Txxx fuse offers a bilt-on space saving fuse for high current wiringprotection ang provides time delay characteristics with " D iffusion pill Technology"Size chart
Ps：According to usage conditions, the characteristics of the fuse may change|根据使用狀況，保险丝特性可能改变！
- 2.Note
Rated voltage: less than 125VDC
Breaking capacity: 2500A 125V DC
Operating temperature: -40 ℃~+125 ℃ - Body llaterical: High pressure ceramics
- Material: copper alloy
2.说明
额定电压：小于直流125V
致断容量：2500A/125V DC
使用温度：-40℃～+125℃ - 阀体横向：高压陶瓷
- 材质：铜合金
3.The specifications and models of fuses are as follows|保险丝规格型号如
| Material number |
Ampere rating |
Color |
Volt |
Safety regulations |
| AN47848T025 | 25 | White | 125V DC 125V AC |
UL |
| AN47848T030 |
30 | UL | ||
| AN47848T040 |
40 | UL | ||
| AN47848T050 |
50 | UL | ||
| AN47848T060 |
60 | UL | ||
| AN47848T070 |
70 | UL | ||
| AN47848T080 |
80 | UL | ||
| AN47848T100 |
100 | UL | ||
| AN47848T125 |
125 | UL | ||
| AN47848T150 |
150 | UL | ||
| AN47848T175 |
175 | UL | ||
| AN47848T200 |
200 | UL | ||
| AN47848T250 |
250 | UL | ||
| AN47848T300 |
300 | UL | ||
| AN47848T350 |
350 | UL |
4.Fusing characteristics|熔断特性
| 额定电流% |
安培额定值 | 运作时间 |
| 100% | 20-350A | ≥4 Hours, Minimum |
| 200% | 20-350A | <10s, Minimum |
注notes:
@环保文件以附件发送，每年更新一次;
@Environmental protection documents shall be sent as attachments and updated once a yea
@安规证书附件发送
@Attachment of safety regulation certificate
