AN478LB36 70V 20A-150A
- 2025-04-19 16:37:38
- 0

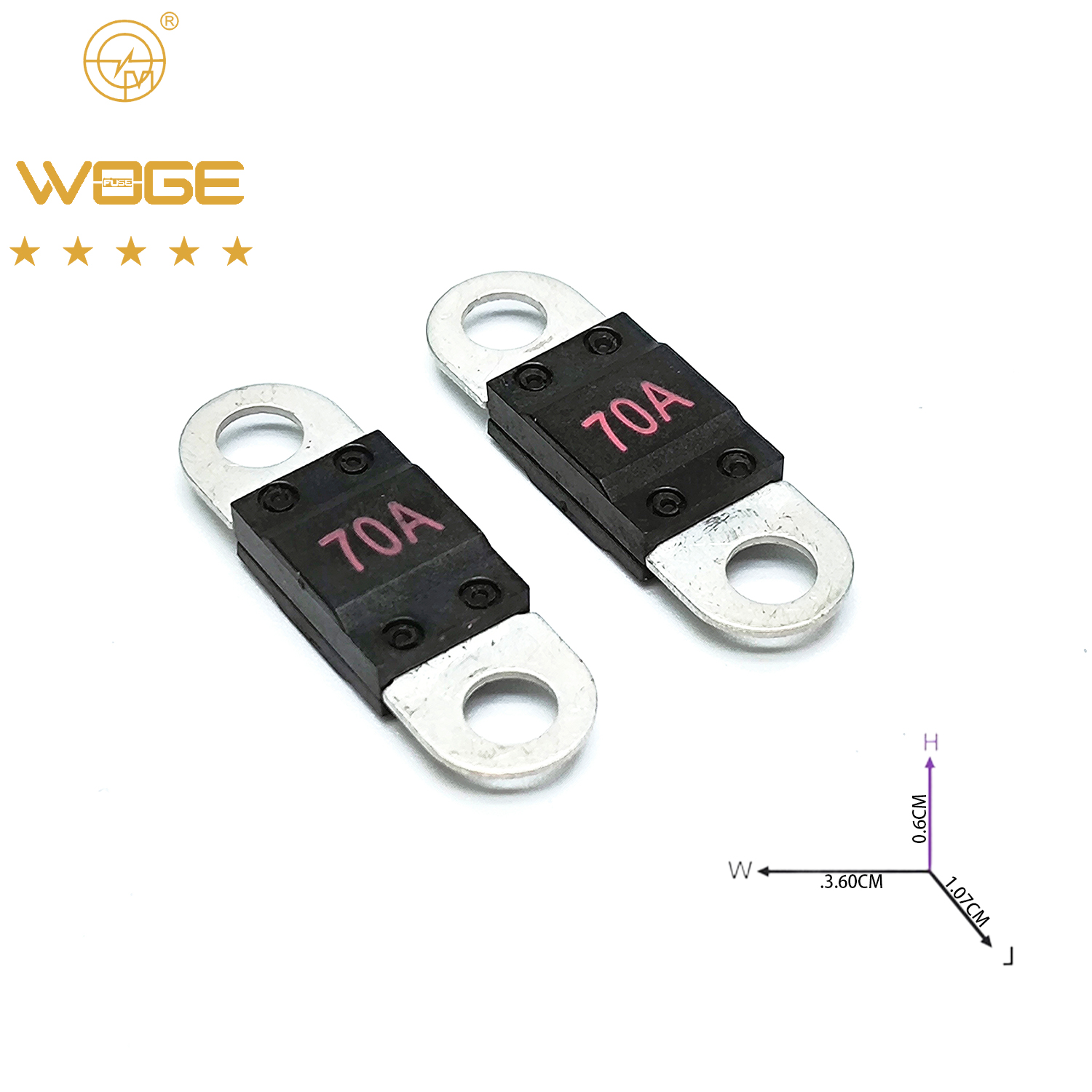

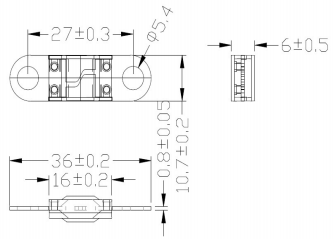

- 螺栓保险丝|Bolt FUSE
- 型号|model: AN478LB36
- 慢熔|Slow melting
- 1.AN478LB36保险丝可节省空间用于大电流接线保护的保险丝，采用“扩散丸技术”提供延时特性。
- 1.AN478LB36 fuse offers a bilt-on space saving fusefor high current wiring protection ang provides time delay characteristics
with "Diffusion pill Technology"
Ps：According to usage conditions, the characteristics of the fuse may change|根据使用狀況，保险丝特性可能改变！
2.Note
Rated voltage: less than 70 VDC
Breaking capacity: 200 amperes at 70VDC /400amperes at 60 VDC
Operating temperature: -40 ℃~+125 ℃
Execution standard: UL248
Material: Kirsite
2.说明额定电压：小于70 VDC
分断能力：70VDC时200A/60VDC时400A
工作温度：-40℃~+125℃
执行标准：UL248
材料：锌合金
3.The specifications and models of fuses are as follows|保险丝规格型号如下
|
Material number |
Ampere rating |
Color |
Volt (V) |
Breaking capacity |
Cold resistance (mΩ) |
Safety regulations |
|
AN478LB36020 |
20 |
Black |
70 |
200A@70VDC 200A@70VDC 400A@60VDC |
2.2 |
/ |
|
AN478LB36030 |
30 |
1.6 |
/ |
|||
|
AN478LB36040 |
40 |
1.1 |
/ |
|||
|
AN478LB36050 |
50 |
0.9 |
/ |
|||
|
AN478LB36060 |
60 |
0.7 |
/ |
|||
|
AN478LB36070 |
70 |
0.63 |
/ |
|||
|
AN478LB36080 |
80 |
0.52 |
/ |
|||
|
AN478LB36100 |
100 |
0.45 |
/ |
|||
|
AN478LB36120* |
120 |
0.34 |
/ |
|||
|
AN478LB36125 |
125 |
0.25 |
/ |
|||
|
AN478LB36150 |
150 |
0.11 |
/ |
4.Fusing characteristics|熔断特性
| % of Ampere Rating |
Ampere Rating |
Opening Time |
| 100% |
20-150A | 100 Hours, Minimum |
| 200% | 20-150A |
3 sec.,Min;100 sec.,Max; |
| 300% | 20-150A |
0.3 sec.,Min;3 sec.,Max; |
注notes:
@环保文件以附件发送，每年更新一次;
@Environmental protection documents shall be sent as attachments and updated once a yea
@安规证书附件发送
@Attachment of safety regulation certificate
