SBAF-SF 20A-120A 32Vdc
- 2025-04-29 14:02:21
- 0

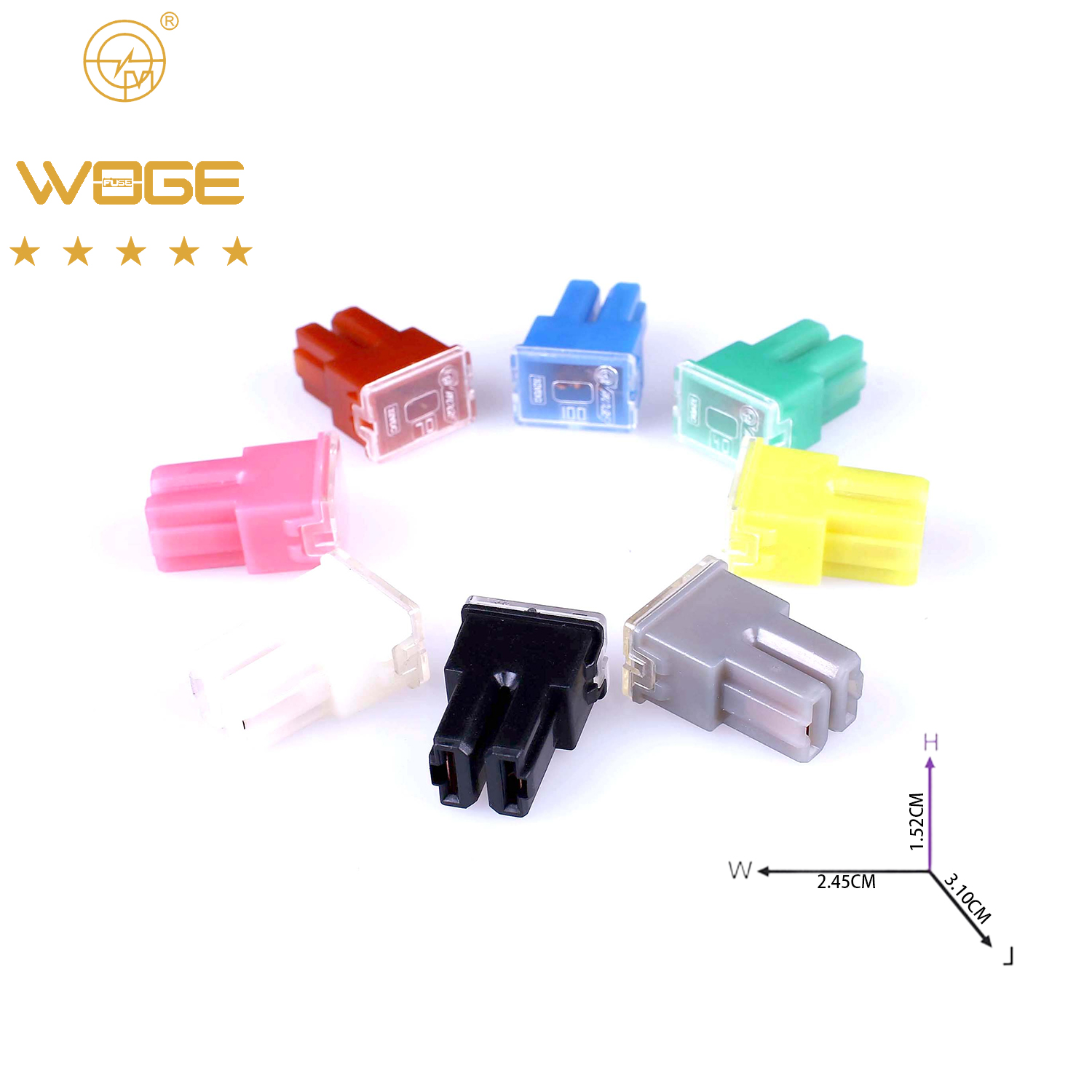

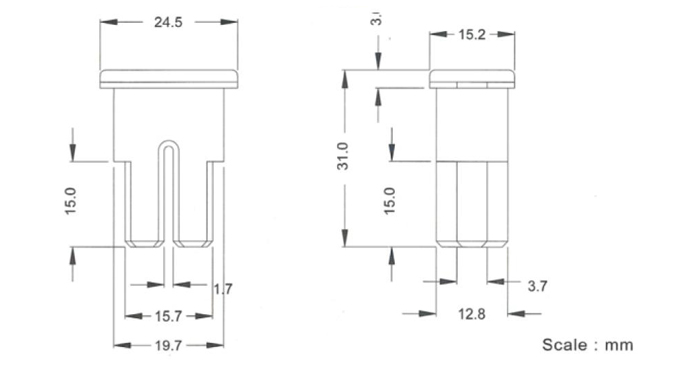

方型慢熔保险丝 | Square Shape Slow melting Fuse
- 型号 | model:SBAF-SF
- 慢熔|Slow melting
- 安规认证|Safety certificatio
Ps：According to usage conditions, the characteristics of the fuse may change|根据使用狀況，保险丝特性可能改变！
- 1.SBAF-SF is a cartridge style fuse with female terminal design. JCASE® provides both increased time delay and low voltage drop to protect high current circuits. JCASE® has the ability to handle inrush currents.
- 1.SBAF-SF是带连接座/头和端子的管状保险丝，它既增加了延时，又降低了电压降，可保护高电流电路并能应对突入电流
2.Note
Voltage Rating: 32 VDC
Interrupting Rating: 1000A amperes at32 VDC
Operating Temperature Range: -40˚ C to + 125˚ C
Housing Material:
Housing Material (60A):
Cover Material:
Insertion Force:
Extraction Force:
Complies with:
2.注额定电压：32vdc
中断额定值：32vdc时1000A安培
工作温度范围：-40˚C~ 125˚C
外壳材料：
外壳材料（60A）：
外壳材料：
插入力：
拔出力：
符合：
3.The specifications and models of fuses are as follows|保险丝规格型
| Material number |
Ampere rating |
Volt |
Color |
Typ. Voltage Drop (mV) |
I²t (A²s) |
| SBAF-SF20 |
20 | 32V DC |
White |
||
| SBAF-SF30 |
30 |
Pink |
|||
| SBAF-SF40 |
40 | Green |
|||
| SBAF-SF50 |
50 | Red |
|||
| SBAF-SF60 |
60 | Yellow |
|||
| SBAF-SF70 |
70 | Brown |
|||
| SBAF-SF80 |
80 |
Black |
|||
| SBAF-SF100 |
100 | Blue | |||
| SBAF-SF120 |
120 | Grey |
4.Fusing characteristics|熔断特性
| In | 1.1In |
2.0In |
3.5In |
6.0In |
|||
| 20-100A |
>4 Hours |
Min | Max |
Min |
Max |
Min |
Max |
| 5 s |
100 s | 0.2 s | 7 s | 0.04 s | 1 s | ||
注notes: @环保文件以附件发送，每年更新一次; @Environmental protection documents shall be sent as attachments and updated once a yea @安规证书附件发送 @Attachment of safety regulation certificate
