SBAF-NMF 20A-100A 32Vdc
- 2025-04-29 13:59:34
- 0

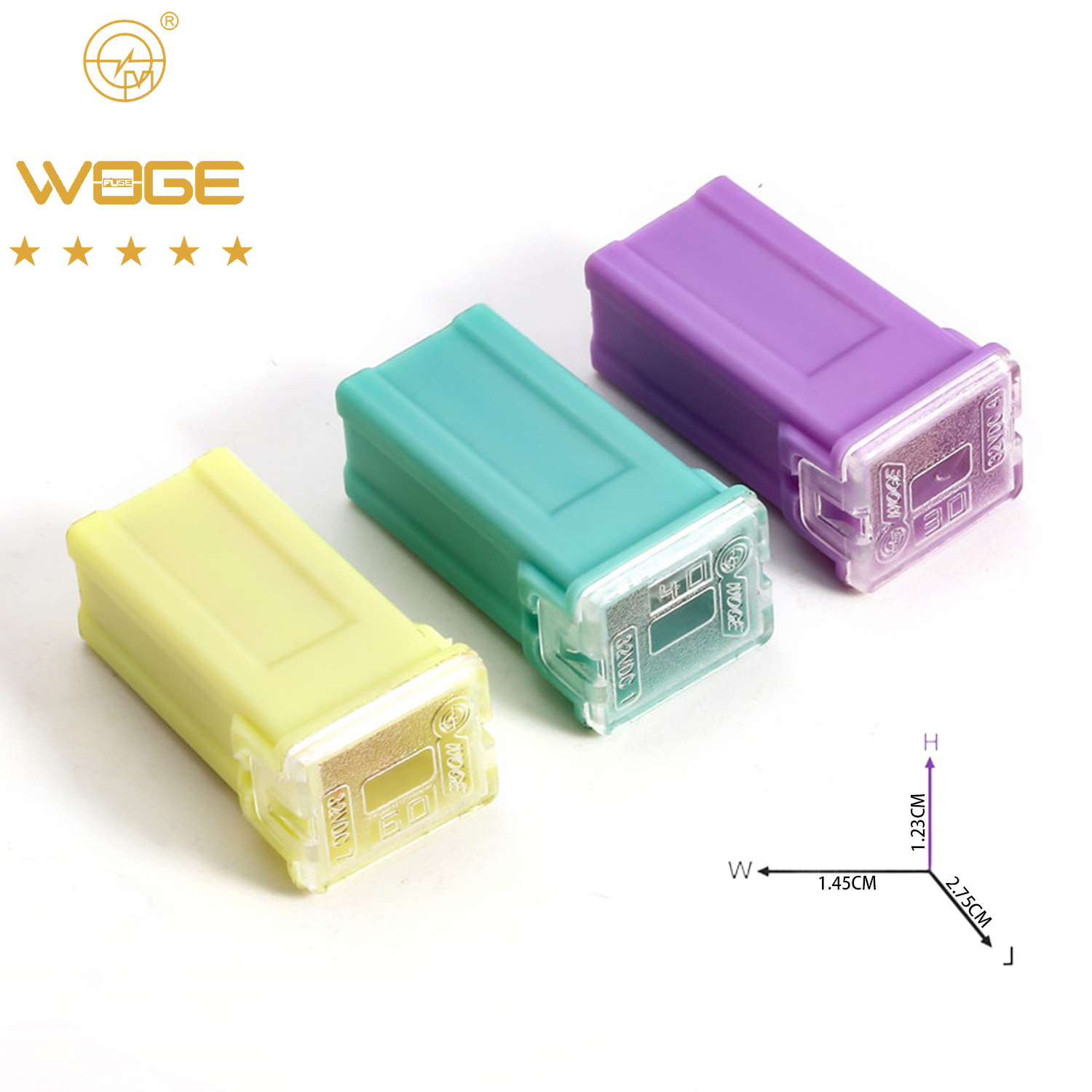

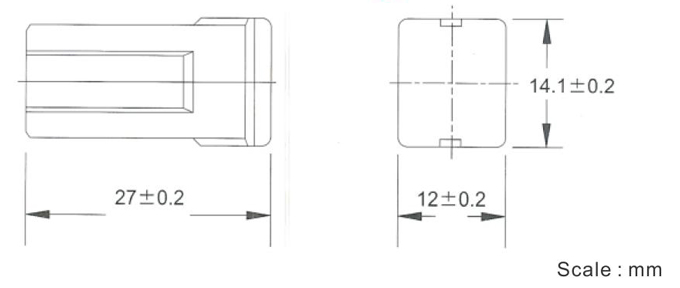

- 方型慢熔保险丝 | Square Shape Slow melting Fuse
- 型号 | model:SBAF-NMF
- 慢熔|Slow melting
- 安规认证|Safety certificatio
Ps：According to usage conditions, the characteristics of the fuse may change|根据使用狀況，保险丝特性可能改变！
- 1.SBAF-NMF is a cartridge style fuse with female terminal design. JCASE® provides both increased time delay and low voltage drop to protect high current circuits. JCASE® has the ability to handle inrush currents.
- 1.SBAF-NMF是带连接座/头和端子的管状保险丝，它既增加了延时，又降低了电压降，可保护高电流电路并能应对突入电流。
- 2.Note
- Voltage Rating: 32 VDC
- Interrupting Rating: 1000A amperes at32 VDC
- Operating Temperature Range: -40˚ C to + 125˚ C
- Housing Material: PA-GF13HS
- Housing Material (60A): PA-GF13
- Cover Material: PC
- Insertion Force: 53N max. (12 lb.)
- Extraction Force: 9N min. (2 lb.)
- Complies with: SAE 2741, ISO 8820-4
- 2. 额定电压：32vdc
中断额定值：32vdc时1000A安培
工作温度范围：-40˚C至+ 125˚C
外壳材料：PA-GF13HS
外壳材料（60A）： PA-GF13
封面材质：PC
插入力：最大53N。(12磅。)
萃取力：9N min. （2 lb.）
符合：SAE 2741， ISO 8820-4 - 3.The specifications and models of fuses are as follows|保险丝规格型
| Material number |
Ampere rating |
Volt |
Color |
Typ. Voltage Drop (mV) |
I²t (A²s) |
| SBAF-NMF020 |
20 | 32V DC | Blue | 106 | 1750 |
| SBAF-NMF025 |
25 | white |
101 | 3220 | |
| SBAF-NMF030 |
30 | Peach |
91 | 3480 | |
| SBAF-NMF040 |
40 | Green |
89 | 3650 | |
| SBAF-NMF050 |
50 | Red |
88 | 8750 | |
| SBAF-NMF060 |
60 | Yellow |
87 | 19500 |
4.Fusing characteristics|熔断特性
| Tesl turrent |
Ampere Rating |
Operating time |
|
| MIN | MAX | ||
| 110% | 20-100 | 360,000s |
No requirement |
| 200% | 20-100 |
5ms |
100s |
| 350% | 20-100 |
0.20s |
7s |
| 600% | 20-100 |
0.04ms |
1s |
注notes:
@环保文件以附件发送，每年更新一次;
@Environmental protection documents shall be sent as attachments and updated once a yea
@安规证书附件发送
@Attachment of safety regulation certificate
