SBAF-SL 20A-120A 32Vdc

  • 2025-04-29 14:00:08
  • 0

方型慢熔保险丝 | Square Shape Slow melting Fuse

  1. 型号 | model:SBAF-SL
  2. 慢熔|Slow melting
  3. 安规认证|Safety certificatio

Ps:According to usage conditions, the characteristics of the fuse may change|根据使用狀況,保险丝特性可能改变!

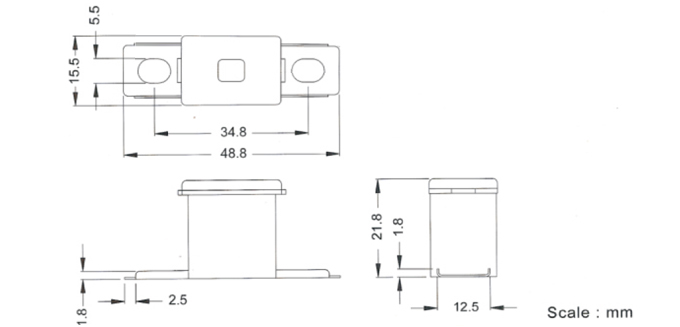

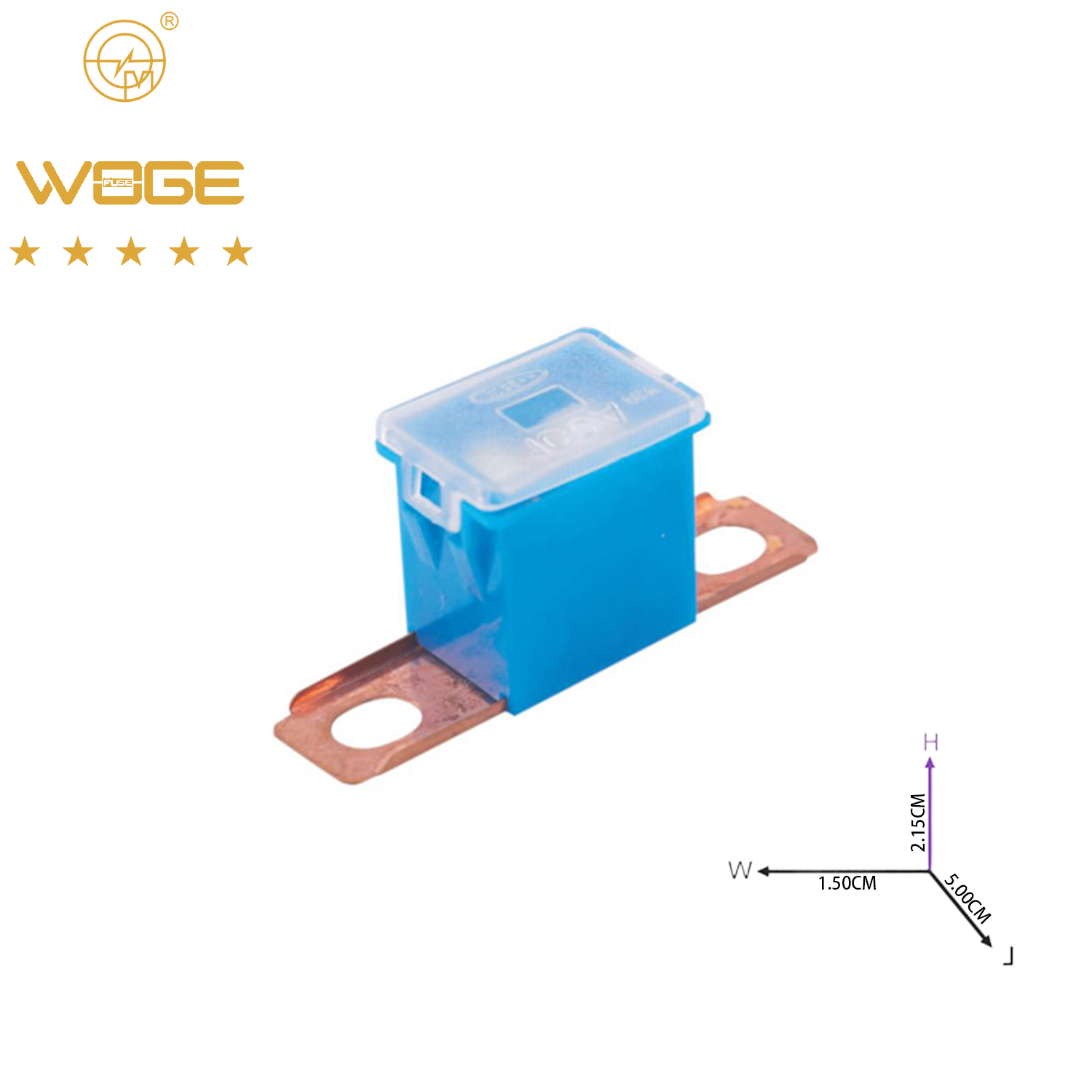

  1. 1.SBAF-SL  is a cartridge style fuse with female terminal design. JCASE® provides both increased time delay and low voltage drop to protect high current circuits. JCASE® has the ability to handle inrush currents.
  2. 1.SBAF-SL是带连接座/头和端子的管状保险丝,它既增加了延时,又降低了电压降,可保护高电流电路并能应对突入电流

2.Note

  1. Voltage Rating: 32 VDC
  2. Interrupting Rating: 1000A amperes at32 VDC
  3. Operating Temperature Range: -40˚ C ~ 125˚ C
  4. Housing Material:
  5. Housing Material (60A):
  6. Cover Material:
  7. Insertion Force:
  8. Extraction Force:
  9. Complies with:
  10. 2.注额定电压:32vdc
  11. 中断额定值:32vdc时1000A安培
  12. 工作温度范围:-40˚C~ 125˚C
  13. 外壳材料:
  14. 外壳材料(60A):
  15. 外壳材料:
  16. 插入力:
  17. 拔出力:
  18. 符合:

  1. 3.The specifications and models of fuses are as follows|保险丝规格型
  2. Material number
    Ampere rating
    Volt
    Color
    Typ. Voltage Drop (mV)
    I²t (A²s)
    SBAF-SL20
    20 32V DC White

    SBAF-SL30
    30 Pink

    SBAF-SL40
    40 Green


    SBAF-SL50
    50 Red

    SBAF-SL60
    60 Yellow


    SBAF-SL70
    70 Brown


    SBAF-SL80
    80 Black


    SBAF-SL100
    100 Blue


    SBAF-SL120
    120 Grey


    4.Fusing characteristics|熔断特性
In
1.1In
2.0In
3.5In
6.0In
20-120A
>4Hours
Min
Max
Min
Max
Min
Max
5 s
100 s
0.2 s
7 s
0.04 s
1 s

注notes: @环保文件以附件发送,每年更新一次; @Environmental protection documents shall be sent as attachments and updated once a yea @安规证书附件发送 @Attachment of safety regulation certificate
