SBAF-NP 25A-100A 32Vdc

  • 2025-04-29 13:59:49
  • 0

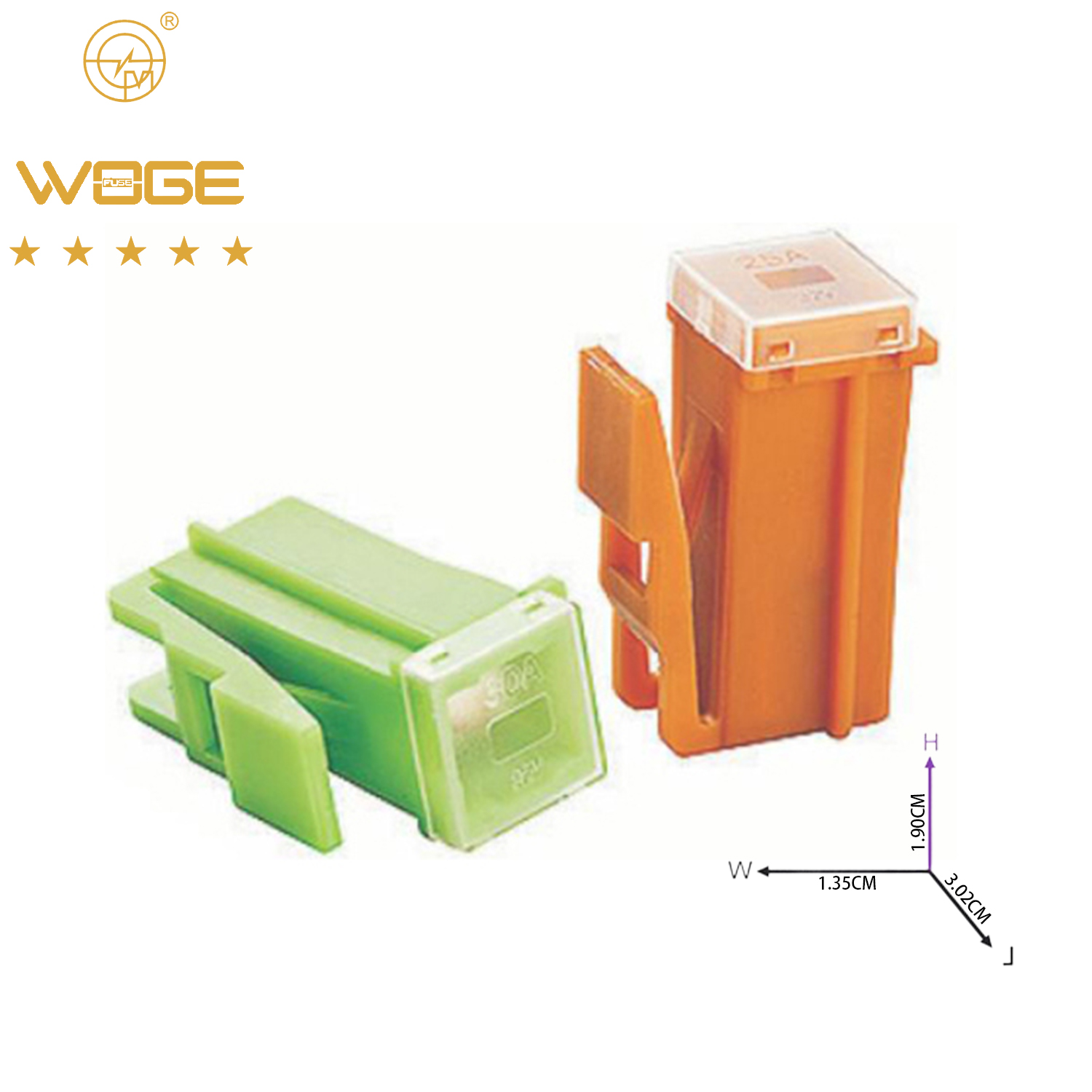

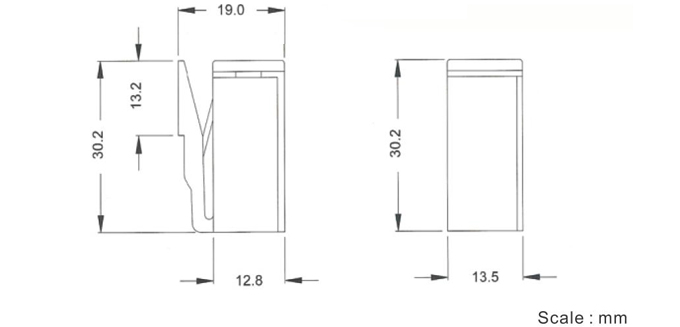

  1. 方型慢熔保险丝 | Square Shape Slow melting Fuse
  2. 型号 | model:SBAF-NP
  1. 慢熔|Slow melting
  2. 安规认证|Safety certificatio

Ps:According to usage conditions, the characteristics of the fuse may change|根据使用狀況,保险丝特性可能改变!


  1. 1.SBAF-NP is a cartridge style fuse with female terminal design. JCASE® provides both increased time delay and low voltage drop to protect high current circuits. JCASE® has the ability to handle inrush currents.
  2. 1.SBAF-NP是带连接座/头和端子的管状保险丝,它既增加了延时,又降低了电压降,可保护高电流电路并能应对突入电流。

  3. 2.Note
  1. Voltage Rating: 32 VDC
  2. Interrupting Rating: 1000A amperes at32 VDC
  3. Operating Temperature Range: -40˚ C ~ 125˚ C
  4. Housing Material:
  5. Housing Material (60A):
  6. Cover Material:
  7. Insertion Force:
  8. Extraction Force:
  9. Complies with:
  1. 2.注额定电压:32vdc
  2. 中断额定值:32vdc时1000A安培
  3. 工作温度范围:-40˚C~ 125˚C
  4. 外壳材料:
  5. 外壳材料(60A):
  6. 外壳材料:
  7. 插入力:
  8. 拔出力:
  9. 符合:

  10. 3.The specifications and models of fuses are as follows|保险丝规格型
Material number
Ampere rating
Volt
Color
Typ. Voltage Drop (mV)
I²t (A²s)
SBAF-NP25A 25 32V DC Brown


SBAF-NP30A
30 Green


SBAF-NP40A
40 Lt.Green


SBAF-NP50A
50 Red


SBAF-NP60A
60 Yellow


SBAF-NP070A
70 Lt.Brown


SBAF-NP80A
80 Black


SBAF-NP100A
100 Blue


4.Fusing characteristics|熔断特性

IN 1.1In
2.0In
3.5In
6.0In
25-100A
>4 Hours
MIN MAX MIN
MAX
MIN
MAX
5s 100s 0.2s 7s 0.04s 1s


注notes: @环保文件以附件发送,每年更新一次; @Environmental protection documents shall be sent as attachments and updated once a yea @安规证书附件发送 @Attachment of safety regulation certificate
