东莞市沃格精密电器有限公司

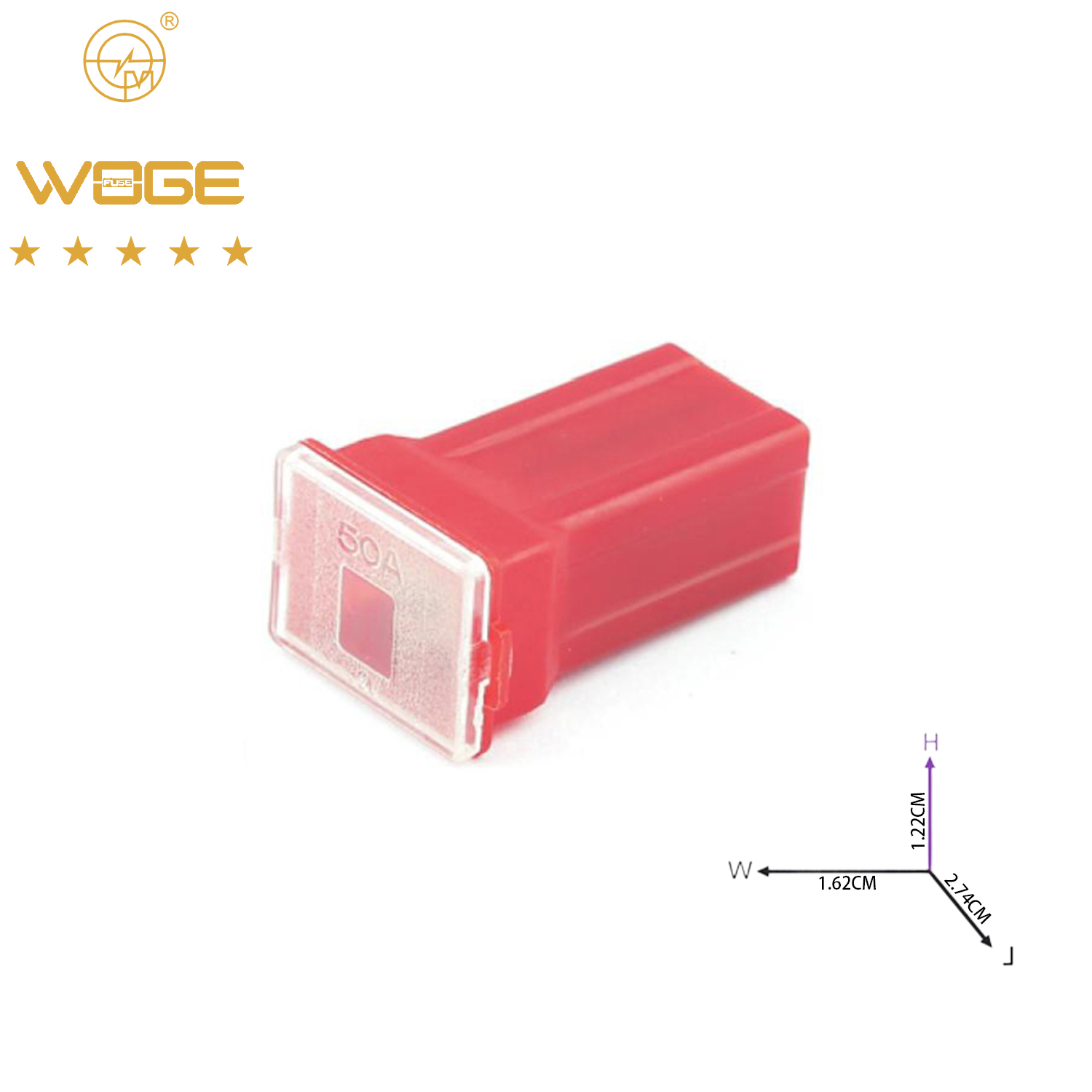

1. 方型慢熔保险丝 | Square Shape Slow melting Fuse
2. 型号 | model:SBAF-MF
3. 慢熔|Slow melting
4. 安规认证|Safety certificatio

Ps：According to usage conditions, the characteristics of the fuse may change|根据使用狀況，保险丝特性可能改变！

1.

2. 1.SBAF-MF is a cartridge style fuse with female terminal design. JCASE® provides both increased time delay and low voltage drop to protect high current circuits. JCASE® has the ability to handle inrush currents.
3. 1.SBAF-MF是带连接座/头和端子的管状保险丝，它既增加了延时，又降低了电压降，可保护高电流电路并能应对突入电流
4.

5. 2.Note

1. Voltage Rating: 32 VDC
2. Interrupting Rating: 1000A amperes at32 VDC
3. Operating Temperature Range: -40˚ C to + 125˚ C
4. Housing Material:
5. Housing Material (60A):
6. Cover Material:
7. Insertion Force:
8. Extraction Force:
9. Complies with:

1. 1. 2.注额定电压：32vdc
   2. 中断额定值：32vdc时1000A安培
   3. 工作温度范围：-40˚C~ 125˚C
   4. 外壳材料：
   5. 外壳材料（60A）：
   6. 外壳材料：
   7. 插入力：
   8. 拔出力：
   9. 符合：
2.

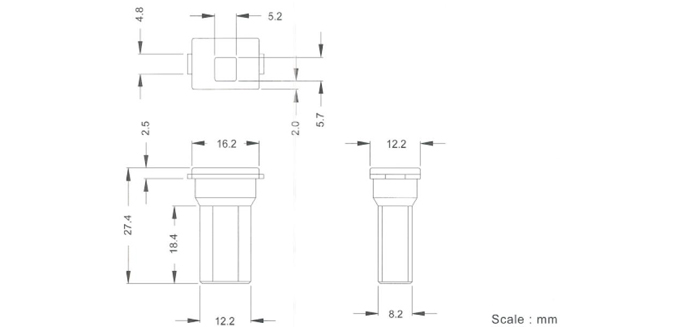

3. 3.The specifications and models of fuses are as follows|保险丝规格型

1. 4.Fusing characteristics|熔断特性

In	1.1In	2.0In		3.5In		6.0In
20-100A	>4 Hours	Min	Max	Min	Max	Min	Max
		5 s	100 s	0.2 s	7 s	0.04 s	1 s

注notes: @环保文件以附件发送，每年更新一次; @Environmental protection documents shall be sent as attachments and updated once a yea @安规证书附件发送 @Attachment of safety regulation certificate
