SBAF-L 20A-120A 32Vdc
- 2025-04-29 14:01:47
- 0

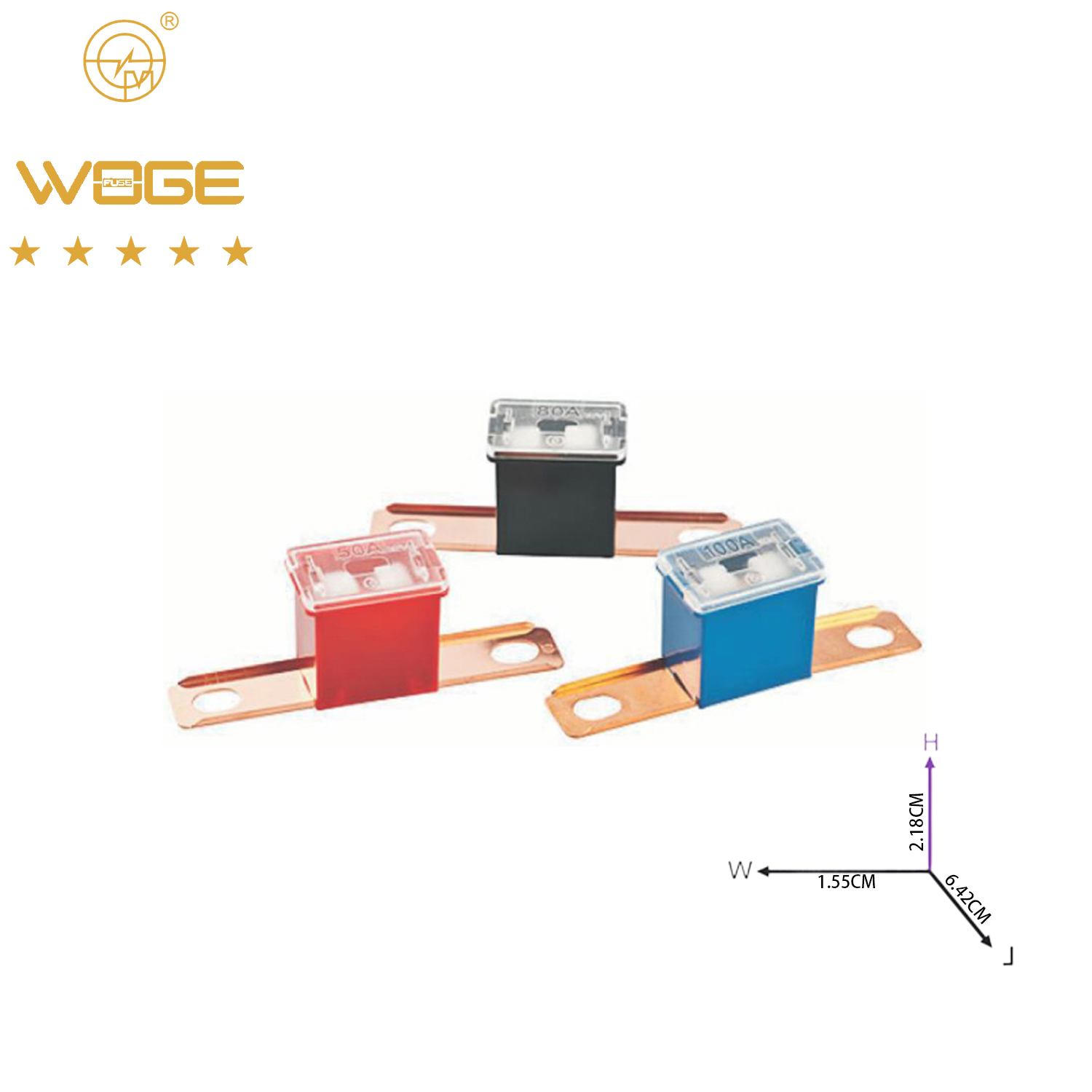

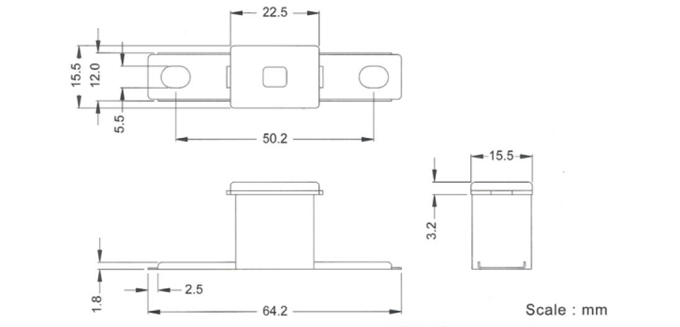

- 方型慢熔保险丝 | Square Shape Slow melting Fuse
- 型号 | model:SBAF-L
- 慢熔|Slow melting
- 安规认证|Safety certificatio
Ps：According to usage conditions, the characteristics of the fuse may change|根据使用狀況，保险丝特性可能改变！
- 1.SBAF-L is a cartridge style fuse with female terminal design. JCASE® provides both increased time delay and low voltage drop to protect high current circuits. JCASE® has the ability to handle inrush currents.
1.SBAF-L是带连接座/头和端子的管状保险丝，它既增加了延时，又降低了电压降，可保护高电流电路并能应对突入电流。 - 2.Note
Voltage Rating: 32 VDC
Interrupting Rating: 1000A amperes at32 VDC
Operating Temperature Range: -40˚ C to + 125˚ C
Housing Material:
Housing Material (60A):
Cover Material:
Insertion Force:
Extraction Force:
Complies with:
2.注额定电压：32vdc
中断额定值：32vdc时1000A安培
工作温度范围：-40˚C~ 125˚C
外壳材料：
外壳材料（60A）：
外壳材料：
插入力：
拔出力：
符合： - 3.The specifications and models of fuses are as follows|保险丝规格型
| Material number |
Ampere rating |
Volt |
Color |
Typ. Voltage Drop (mV) |
I²t (A²s) |
|
SBAF-L20
|
20 | 32V DC |
White
|
||
|
SBAF-L30
|
30 |
Pink
|
|||
|
SBAF-L40
|
40 |
Green
|
|||
|
SBAF-L50
|
50 |
Red
|
|||
|
SBAF-L60
|
60 |
Yellow
|
|||
|
SBAF-L70
|
70 |
Brown
|
|||
|
SBAF-L80
|
80 |
Black
|
|||
|
SBAF-L100
|
100 |
Blue
|
|||
|
SBAF-L120
|
120 |
Grey
|
4.Fusing characteristics|熔断特性
|
In
|
1.1In
|
2.0In
|
3.5In
|
6.0In
|
|||
|
20-120A
|
>4Hours
|
Min |
Max |
Min |
Max |
Min |
Max |
|
5 s
|
100 s
|
0.2 s
|
7 s
|
0.04 s
|
1 s
| ||
注notes:
@环保文件以附件发送，每年更新一次;
@Environmental protection documents shall be sent as attachments and updated once a yea
@安规证书附件发送
@Attachment of safety regulation certificate
