WSMD1210贴片可恢复保险丝
- 2022-12-28 16:21:38
- 0
贴片自恢保险丝| SMD PTC FUSE
贴片| SMD
型号 | model: WSMD1210
Specification Sheet
| Terminal Pad Solderability: |
| Meets EIA Specification RS 186-9E And ANSI/J-STD-002 Category 3. |
| Terminal PAD Materials: Tin-Plated Nickel-copper |
| Lead-Free,RoHS Compliant |
| Marking: |
| R ROHS |
| 1 010Part Identification |

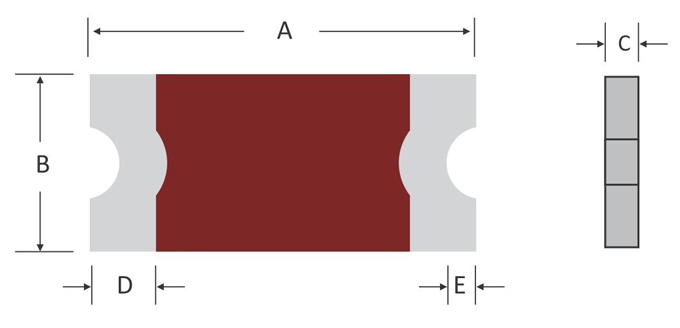

TABLEI.DIMENSIONS
| MODEL | A |
|
B |
|
C |
|
D | E |
| MIN | MAX | MIN | MAX | MIN | MAX | MIN | MAX | |
| WSMD1210R005SF | 3.00 | 3.43 | 2.35 | 2.80 | 0.30 | 0.80 | 0.30 | 0.10 |
| WSMD1210R010SF | 3.00 | 3.43 | 2.35 | 2.80 | 0.30 | 0.80 | 0.30 | 0.10 |
| WSMD1210R020SF | 3.00 | 3.43 | 2.35 | 2.80 | 0.30 | 0.80 | 0.30 | 0.10 |
| WSMD1210R035SF | 3.00 | 3.43 | 2.35 | 2.80 | 0.30 | 0.80 | 0.30 | 0.10 |
| WSMD1210R050SF | 3.00 | 3.43 | 2.35 | 2.80 | 0.30 | 0.80 | 0.30 | 0.10 |
| WSMD1210R075SF | 3.00 | 3.43 | 2.35 | 2.80 | 0.30 | 0.80 | 0.30 | 0.10 |
| WSMD1210R110SF | 3.00 | 3.43 | 2.35 | 2.80 | 0.30 | 0.80 | 0.30 | 0.10 |
| WSMD1210R150SF | 3.00 | 3.43 | 2.35 | 2.80 | 0.40 | 0.80 | 0.30 | 0.10 |
| WSMD1210R175SF | 3.00 | 3.43 | 2.35 | 2.80 | 0.50 | 1.20 | 0.30 | 0.10 |
| WSMD1210R200SF | 3.00 | 3.43 | 2.35 | 2.80 | 0.50 | 1.20 | 0.30 | 0.10 |
Performance Specification
| Model |
Mar King |
V Max |
I Max |
I Hold@25℃ |
I Trip@25℃ |
Pd Typ. |
Maximum Time To Trip | Resistance | Agency Approval | |||
| (V DC) | (A) | (A) | (A) | (W) | Current(A) | Time(Sec) | R1 Min(Ω) | R1 Max(Ω) | UL | TUV | ||
| WSMD1210R005SF | RA | 30.0 | 100 | 0.05 | 0.15 | 0.4 | 0.25 | 1.50 | 2.800 | 50.000 |
|
|
| WSMD1210R010SF | R1 | 30.0 | 100 | 0.10 | 0.30 | 0.4 | 0.50 | 0.60 | 0.800 | 15.000 |
|
|
| WSMD1210R020SF | R2 | 30.0 | 100 | 0.20 | 0.40 | 0.4 | 8.0 | 0.02 | 0.400 | 5.000 |
|
|
| WSMD1210R035SF | R3 | 6.0 | 100 | 0.35 | 0.75 | 0.6 | 8.00 | 0.20 | 0.200 | 1.300 |
|
|
| WSMD1210R050SF | R5 | 13.2 | 100 | 0.50 | 1.10 | 0.6 | 8.00 | 0.10 | 0.180 | 0.900 |
|
|
| WSMD1210R075SF | R7 | 6.0 | 100 | 0.75 | 0.50 | 0.6 | 8.00 | 0.10 | 0.070 | 0.400 |
|
|
| WSMD1210R110SF | R0 | 6.0 | 100 | 1.10 | 2.20 | 0.6 | 8.00 | 0.30 | 0.050 | 0.210 |
|
|
