W16V插件可恢复型保险丝
- 2022-06-21 17:47:30
- 0
厂家长期供应引线汽车保险丝座、保险丝、汽车保险丝座、保险丝座、汽车保险丝座、玻璃保险丝等
Features

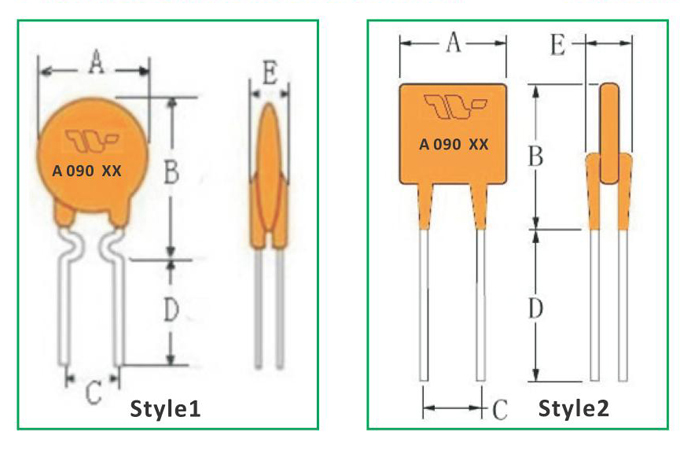

| Radial Leaded Devices |
| Cured,Flame retardant epoxy polymer insulating material meets UL 94V-0 requirements |
| Bulk Package, or Tape and reel available on most models |
| Agency recognition: UL on approval |
Applications
| Almost Anywhere There Is A Low Voltage Power Supply, Up To 16V And A Load To Be Protected, Including: |
| Personal computer |
| Toys |
| Medical electronics |
| Personal care product |
Electrical Characteristics
| P/N | IH(A) | IT(A) | V Max(V) | I Max(A) | T Trip | Pd Typ(W) | Resistance(Ω) | |||
| (A) | (Sec.) | R Min | R Max | R1 Max | ||||||
| W16-005 | 0.05 | 0.10 | 16 | 40 | 0.25 | 5.0 | 0.26 | 8.00 | 11.50 | 17.00 |
| W16-010 | 0.10 | 0.20 | 16 | 40 | 0.50 | 4.0 | 0.35 | 2.00 | 4.50 | 6.70 |
| W16-017 | 0.17 | 0.34 | 16 | 40 | 0.85 | 3.0 | 0.36 | 0.980 | 1.800 | 2.700 |
| W16-020 | 0.20 | 0.40 | 16 | 40 | 1.00 | 3.0 | 0.36 | 0.780 | 1.600 | 2.200 |
| W16-025 | 0.25 | 0.50 | 16 | 40 | 1.25 | 3.0 | 0.36 | 0.500 | 1.100 | 1.650 |
| W16-030 | 0.30 | 0.60 | 16 | 40 | 1.50 | 3.0 | 0.36 | 0.350 | 0.700 | 1.050 |
| W16-040 | 0.40 | 0.80 | 16 | 40 | 2.00 | 3.00 | 0.40 | 0.230 | 0.650 | 0.970 |
| W16-050 | 0.50 | 1.00 | 16 | 40 | 2.50 | 3.0 | 0.45 | 0.170 | 0.400 | 0.810 |
| W16-065 | 0.65 | 1.30 | 16 | 40 | 3.25 | 3.0 | 0.45 | 0.110 | 0.300 | 0.450 |
| W16-075 | 0.75 | 1.50 | 16 | 40 | 3.75 | 3.0 | 0.54 | 0.080 | 0.230 | 0.260 |
| W16-090 | 0.90 | 1.80 | 16 | 40 | 4.50 | 3.2 | 0.54 | 0.007 | 0.180 | 0.210 |
| W16-110 | 1.10 | 2.20 | 16 | 40 | 5.50 | |||||
