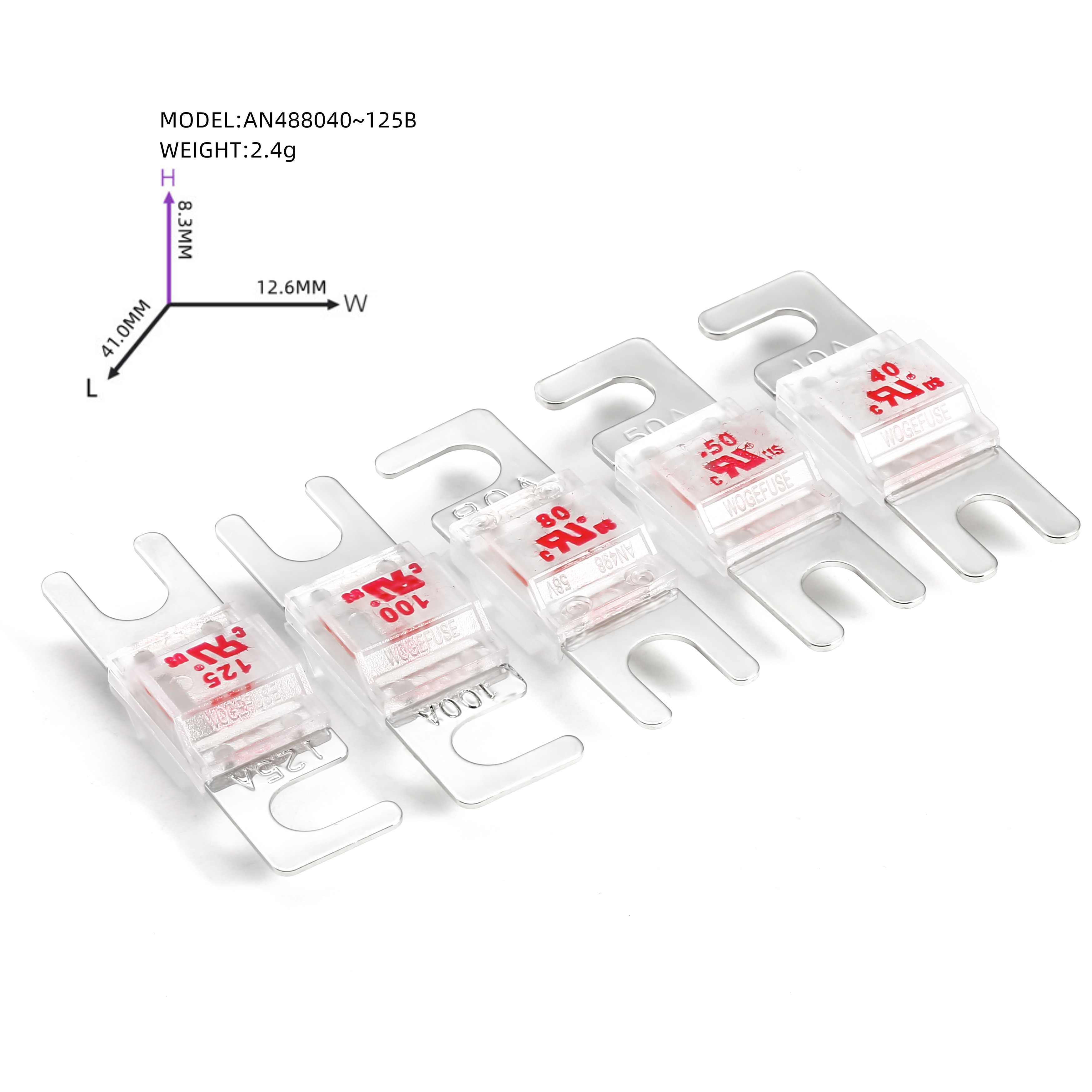

Bolt-On Fuse Strips With Housing AN 488 Product Details
螺栓保险丝|Bolt FUSE 型号|model: AN488 20A-200A 58Vdc UL Rohs
慢熔|Slow melting
AN498保险丝为大电流接线保护提供栓接式节省空间保险丝，并通过扩散丸技术提供延时特性。
AN498 Fuse offers a bolt-on space saving fuse for high current wiring protection and provides time delay characteristics with Diffusion Pill Technology.
|
For High Perform And High Power Audio Systems. Also Use Lift Trucks And Other Battery Operated System. |
|
|
Body Material |
Plastic. |
|
Metal Element |
Zinc/Copper With Gold Plating. Or Nickel Plating. |
|
Voltage |
58v DC |
|
Ampere Rating |
20,30,40,50,60,70,80,100,125,150,200 Amps |
Ordering Information
|
Part Number |
Ampere(A) |
Voltage VDC |
Body Color |
|
AN488030 |
30 |
32V |
Green |
|
AN488040 |
40 |
32V |
Orange |
|
AN488050 |
50 |
32V |
Red |
|
AN488060 |
60 |
32V |
Blue |
|
AN488070 |
70 |
32V |
Brown |
|
AN488080 |
80 |
32V |
Clear |
|
AN488100 |
100 |
32V |
Pink |
|
AN488125 |
125 |
32V |
Violet |
|
AN488150 |
150 |
32V |
Yellow |
|
AN488200 |
200 |
32V |
Lt.Grey |
Specifications
Opening Time / Pre-arcing Time: 24 ℃|
In |
1.1In |
1.5In |
2.2In |
2.5In |
4.0In |
||||
|
30-000A |
>4 Hours |
Min. |
Max. |
Min. |
Max. |
Min. |
Max. |
Min. |
Max. |
|
3600 s |
- |
- |
60 s |
0.8 s |
10 s |
0.2 s |
2 s |
||
注notes：
@环保文件以附件发送，每年更新一次；
@Environmental protection documents shall be sent as attachments and updated once a yea
@安规证书附件发送
@Attachment of safety regulation certificate
