ANC 20A-500A 32VDC
- 2022-07-30 18:33:54
- 0
螺栓保险丝|Bolt FUSE

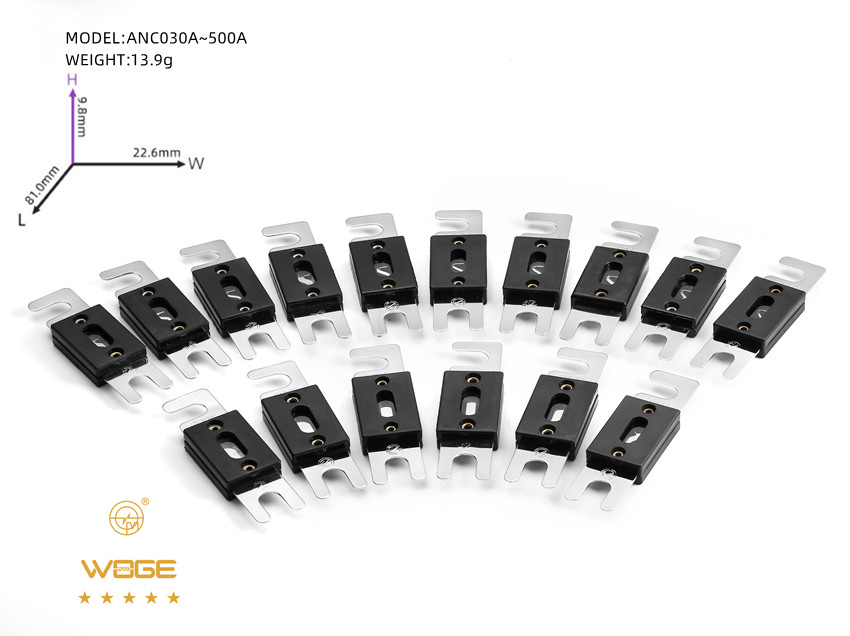

型号|model: ANC 20A-500A 80Vdc UL Rohs
慢熔|Slow melting
1.ANC Fuse offers a bolt-on space saving fuse for high current wiring protection and provides time delay characteristics with Diffusion Pill Technology.
1.ANC保险丝为大电流接线保护提供栓接式节省空间保险丝，并通过扩散丸技术提供延时特性
2.Ordering Information
| Part Number |
Ampere (A) |
Voltage (VDC) |
Body Color |
| ANC020 | 20A | 32VDC | Black |
| ANC025 |
25A | 32VDC |
|
| ANC030 |
30A | 32VDC |
|
| ANC040 |
40A | 32VDC |
|
| ANC050 |
50A | 32VDC |
|
| ANC060 |
60A | 32VDC |
|
| ANC070 |
70A | 32VDC |
|
| ANC080 |
80A | 32VDC |
|
| ANC100 |
100A | 32VDC |
|
| ANC125 |
125A | 32VDC |
|
| ANC150 |
150A | 32VDC |
|
| ANC175 |
175A | 32VDC |
|
| ANC200 |
200A | 32VDC |
|
| ANC225 |
225A | 32VDC |
|
| ANC250 |
250A | 32VDC |
|
| ANC275 |
275A | 32VDC |
|
| ANC300 |
300A | 32VDC |
|
| Ceramics are recommended below |
|||
| ANC325 |
325A | 32VDC |
White |
| ANC350 |
350A | 32VDC |
|
| ANC375 |
375A | 32VDC |
|
| ANC400 |
400A | 32VDC |
|
| ANC450 |
450A | 32VDC |
|
| ANC500 |
500A | 32VDC |
|
注notes：
@环保文件以附件发送，每年更新一次；
@Environmental protection documents shall be sent as attachments and updated once a yea
@安规证书附件发送
@Attachment of safety regulation certificate
@需要详细规格书请联系我们|Please contact us if you need the detailed specification sheet.
