ANT 20A-500A 80Vdc
- 2022-07-30 18:28:49
- 0
螺栓保险丝|Bolt FUSE
型号|model: ANT 20A-500A 80Vdc UL Rohs
慢熔|Slow melting

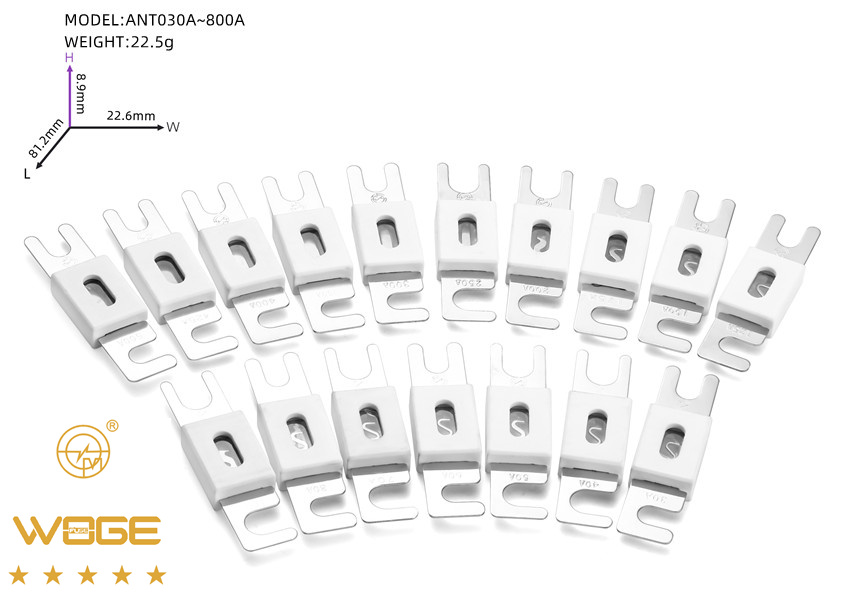

1.ANT Fuse offers a bolt-on space saving fuse for high current wiring protection and provides time delay characteristics with Diffusion Pill Technology.
1.ANT保险丝为大电流接线保护提供栓接式节省空间保险丝，并通过扩散丸技术提供延时特性。
2.Ordering Information
| Part Number |
Ampere (A) |
Voltage (VDC/VAC) |
Body Color |
| ANT020 | 20A | 80VDC/125VAC |
White |
| ANT030 |
30A | 80VDC/125VAC |
|
| ANT040 |
40A | 80VDC/125VAC |
|
| ANT050 |
50A | 80VDC/125VAC |
|
| ANT060 |
60A | 80VDC/125VAC |
|
| ANT070 |
70A | 80VDC/125VAC |
|
| ANT080 |
80A | 80VDC/125VAC |
|
| ANT090 |
90A | 80VDC/125VAC |
|
| ANT100 |
100A | 80VDC/125VAC |
|
| ANT125 |
125A | 80VDC/125VAC |
|
| ANT150 |
150A | 80VDC/125VAC |
|
| ANT175 |
175A | 80VDC/125VAC |
|
| ANT200 |
200A | 80VDC/125VAC |
|
| ANT225 |
225A | 80VDC/125VAC |
|
| ANT250 |
250A | 80VDC/125VAC |
|
| ANT275 |
275A | 80VDC/125VAC |
|
| ANT300 |
300A | 80VDC/125VAC |
|
| ANT325 |
325A | 80VDC/125VAC |
|
| ANT350 |
350A | 80VDC/125VAC |
|
| ANT375 |
375A | 80VDC/125VAC |
|
| ANT400 |
400A | 80VDC/125VAC |
|
| ANT450 |
450A | 80VDC/125VAC |
|
| ANT500 |
500A | 80VDC/125VAC |
注notes：
@环保文件以附件发送，每年更新一次；
@Environmental protection documents shall be sent as attachments and updated once a yea
@安规证书附件发送
@Attachment of safety regulation certificate
@需要详细规格书请联系我们|Please contact us if you need the detailed specification sheet.
