AN492 20A-175A 36Vdc
- 2024-10-15 10:14:24
- 0

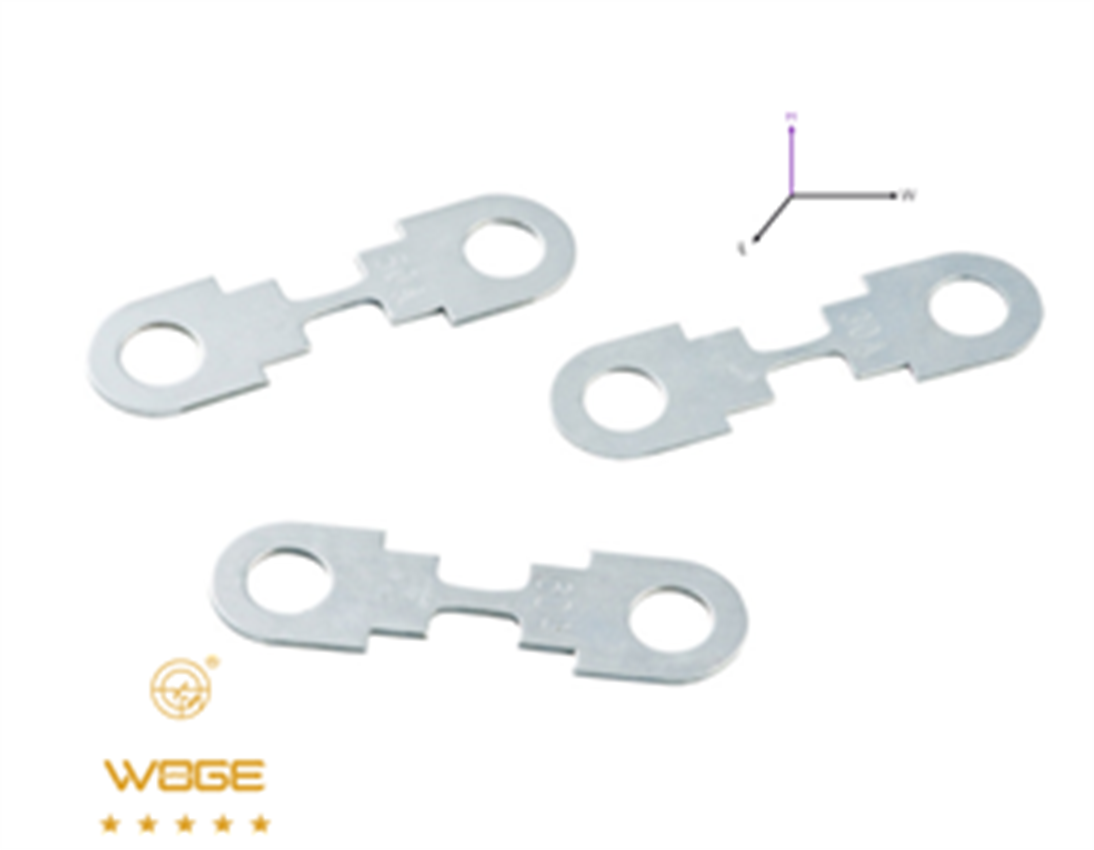

螺栓保险丝|Bolt FUSE
型号|model: AN492/B 20A-175A 36Vdc Rohs
慢熔|Slow melting
1.AN492/BFuse offers a bolt-on space saving fuse for high current wiring protection and provides time delay characteristics with Diffusion Pill Technology.
1.AN492/B保险丝为大电流接线保护提供栓接式节省空间保险丝，并通过扩散丸技术提供延时特性。
2.Ordering Information
| Part Number |
Ampere (A) |
Voltage (VDC/VAC) |
Body Color |
| AN492020 | 20A | 36VDC | Silvery |
| AN492025 |
25A | ||
| AN492030 |
30A | ||
| AN492040 |
40A | ||
| AN492050 |
50A | ||
| AN492060 |
60A | ||
| AN492070 |
70A | ||
| AN492080 |
80A | ||
| AN492100 |
100A | ||
| AN492125 |
125A | ||
| AN492150 |
150A | ||
| AN492175 |
175A |
3.注notes：
@环保文件以附件发送，每年更新一次；
@Environmental protection documents shall be sent as attachments and updated once a yea
@安规证书附件发送
@Attachment of safety regulation certificate
@需要详细规格书请联系我们|Please contact us if you need the detailed specification sheet.
