AN492-B
- 2025-05-09 15:07:03
- 0

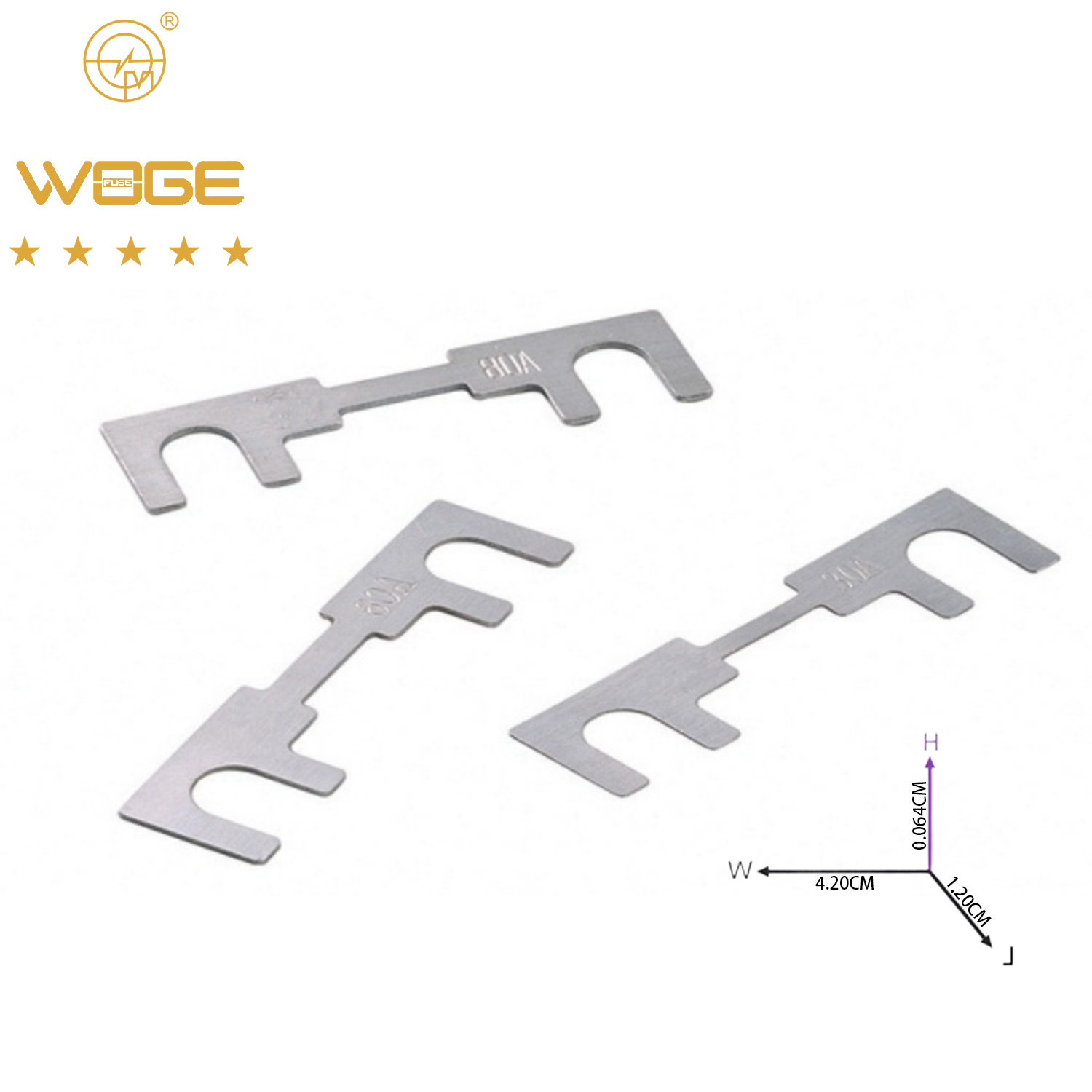

- 螺栓保险丝|Bolt FUSE
- 型号|model: ANMG
- 慢熔|Slow melting
- 安规认证|Safety certificatio
Ps：According to usage conditions, the characteristics of the fuse may change|根据使用狀況，保险丝特性可能改变！

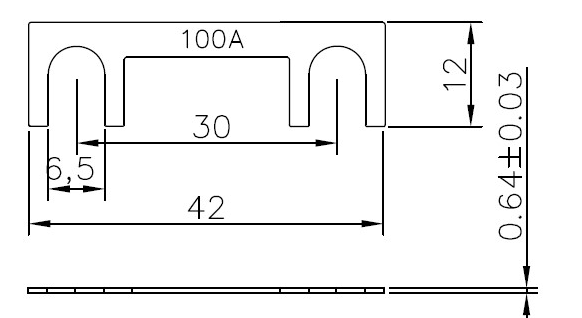

1.The AN492-B fuse offers a bilt-on space saving fuse for high current wiring protection ang provides time delay characteristics with "Diffusion pill Technology" Size chart:
1.AN492-B保险丝为大电流接线提供了一种开关式节省空间的保险丝“高分断技术”提供延时保护特性.
2.Note
- Rated voltage: less than 36VDC
- Breaking capacity: 1000 amperes at 36 Vdc
- Operating temperature: -40 ℃~+125 ℃
- Execution standard: ISO8820-5
- 2.说明
- 额定电压：小于直流36VDC
- 致断容量：36vdc时1000安培
- 使用温度：-40℃～+125℃
- 执行标准：ISO8820-5
3.The specifications and models of fuses are as follows|保险丝规格型号如
| Material number |
Ampere rating |
Color |
Volt |
Safety regulations |
| AN4920200/B |
20 | Silvery |
36V DC | / |
| AN492025/B |
25 | / | ||
| AN492030/B |
30 | / | ||
| AN492040/B |
40 | / | ||
| AN492050/B |
50 | / | ||
| AN492060/B |
60 | / | ||
| AN492070/B |
70 | / | ||
| AN492080/B |
80 | / | ||
| AN492100/B |
100 | / | ||
| AN492125/B |
125 | / | ||
| AN492150/B |
150 | / | ||
| AN492175/B |
175 | / |
4.Fusing characteristics|熔断特性
| Tesl turrent |
Rated current |
Operating tlme |
|
| MIN | MAX | ||
| 100% | 20-175A | 100 Hours |
/ |
| 200% |
20-175A |
10sec | / |
| 350% |
20-175A |
0.5sec | / |
注notes:
@环保文件以附件发送，每年更新一次;
@Environmental protection documents shall be sent as attachments and updated once a yea
@安规证书附件发送
@Attachment of safety regulation certificate
